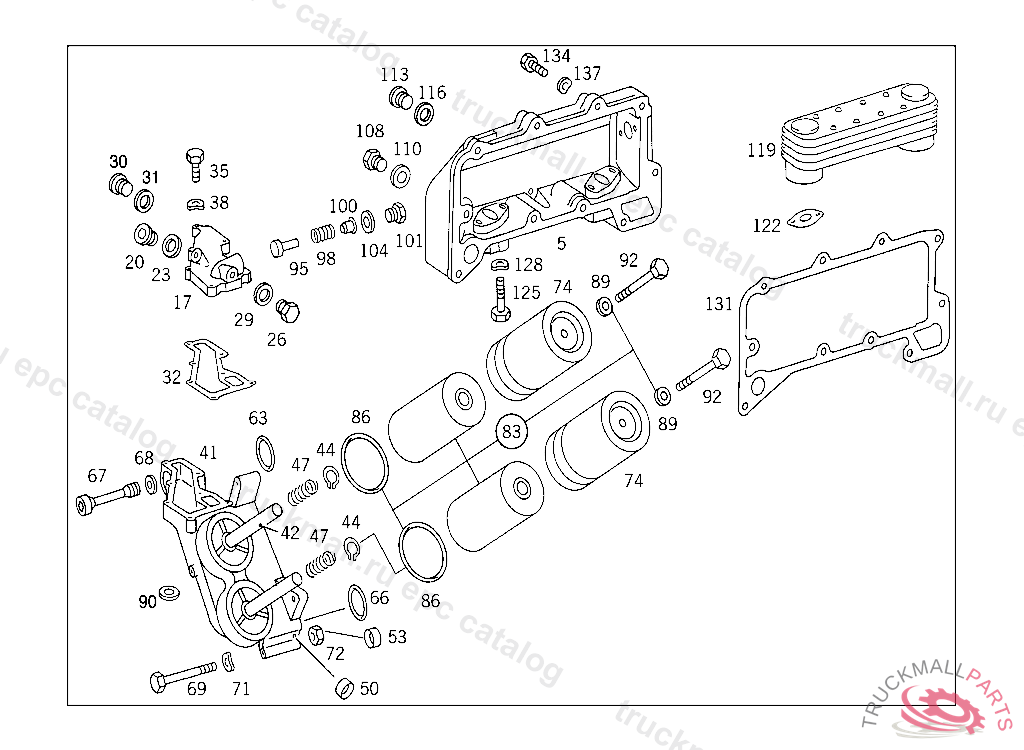

Поз.
Артикул
Описание
5
HOUSING , Replaced By: A4421881604
5
HOUSING OIL COOLER, ORDER ADDITIONALLY: N 000908 030002 U. N 0076030030400
17
COVER , 401/402/441-443793440 444016364
20
SCREW PLUG BELL HOUSING TO 620 251 07 01,620 251 16 01, 426,427,428,521,522 5 095724 532 5 104253
23
SEAL RING TEMPERATURE GAUGE SENDER UNIT
26
SCREW PLUG FUEL TANK
29
SEAL RINGTO 000 553 03 05,000 553 18 05,
30
SCREW PLUG
31
SEAL RING OIL LINE TO OIL COOLER
32
GASKET
35
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
35
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
35
HEXAGON HEAD BOLT SHIFT LEVER TO CAB FLOOR M 8X45
38
SPRING WASHER , Replaced By: N000137008212
38
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
41
FILTER BOWL
42
FILLER NECK
44
LOCK RING ANNULAR JOINT ON AXLE SHAFT
47
SPRING
50
EXPANSION PLUG
53
CAP. EXPANSION PLUG SHAFT
63
SEAL RING OIL FILTER HEAD TO CYLINDER CRANKCASE FRONT SIDE 39.2X3
66
SEAL RING OIL FILTER HEAD TO CYLINDER CRANKCASE FRONT SIDE 26.2X3
67
SCREW OIL FILTER HEAD TO CYLINDER CRANKCASE FRONT SIDE
68
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
69
STUD BOLT BEARING COVER TO TRANSMISSION CASE, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
69
SCREW , Replaced By: N910105010017
69
SCREW BELL HOUSING TO NMV M 10X135
71
SPRING WASHER STEERING COLUMN BRACKET TO CAB
72
NUT BRACKET TO SUPPORT AND TO END PIECE
74
HOUSING OIL FILTER BOWL
83
FILTER ELEMENT WITH GASKETS
83
FILTER ELEMENT WITH GASKETS
83
FILTER ELEMENT WITH GASKETS
86
SEAL RING OIL FILTER BOWL WITH FULL-FLOW FILTER TO OIL FILTER HEAD
89
SEAL RING BRAKE CYLINDER STROKE INDICATOR
90
SEAL RING OIL DRAIN 26X34 MM
92
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
95
VALVE
98
SPRING BY-PASS VALVE
101
SCREW PLUG
104
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
108
SCREW PLUG
110
SEAL RING OIL DRAIN 26X34 MM
113
SCREW PLUG , Replaced By: A1119970330
116
SEAL RINGTO 000 553 03 05,000 553 18 05,
119
OIL COOLER
119
OIL COOLER
122
SEAL. GASKET , Replaced By: A3661880880
125
SCREW VALVE TO BRACKET
125
SCREW VALVE TO BRACKET, Replaced By: N304014008002
128
SPRING WASHER , Replaced By: N000137008212
128
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
131
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
134
SCREW SHIFTING ROD TO SHIFT LEVER
134
SCREW CONNECTOR TO REAR SHIFTING ROD
134
SCREW , Replaced By: N304017010047
137
SPRING WASHER STEERING COLUMN BRACKET TO CAB
