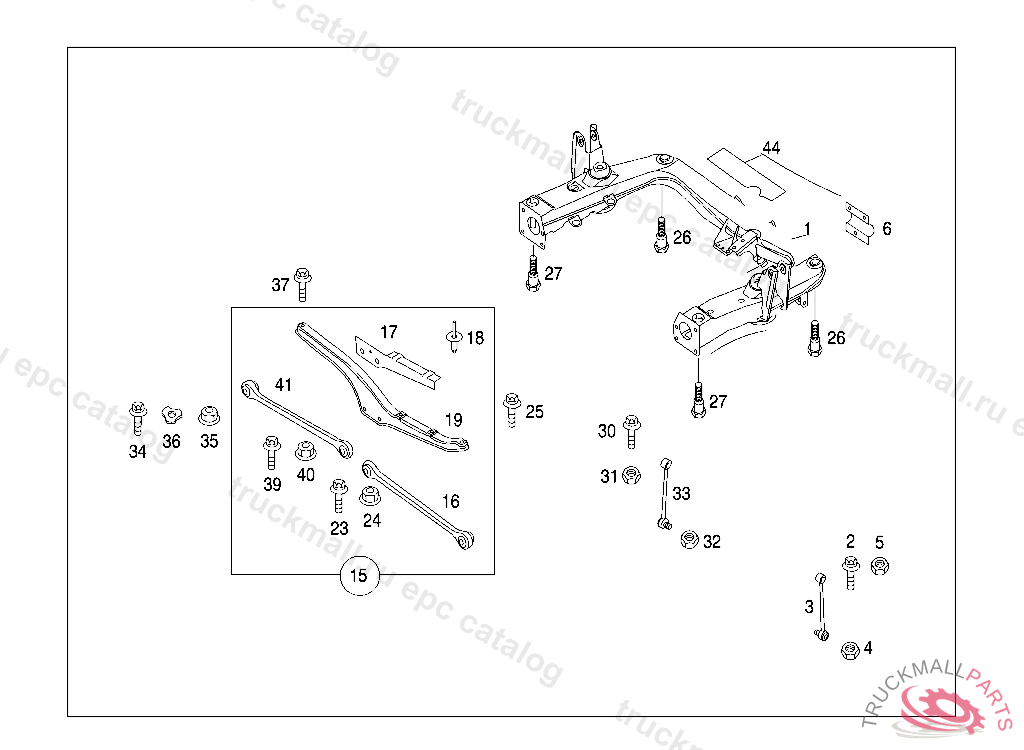

Поз.
Артикул
Описание
1
FRAME-TYPE INT. SUPPORT
1
FRAME-TYPE INT. SUPPORT
1
FRAME-TYPE INT. SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20020701, Replaced By: Q0012983V002000000
1
FRAME-TYPE INT. SUPPORT
1
FRAME-TYPE INT. SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 09124820031027, Replaced By: Q0015888V001000000
2
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
3
HANGER STABILISER REAR AX
4
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
4
NUT M10 -10
5
NUT M8 -10
6
COVER INTEGRAL CARRIER RH
15
CROSSMEMBER REAR AXLE COM
15
CROSSMEMBER REAR AXLE COM , H 03875319990406
16
CONTROL ARM
17
SHIELD CROSSMEMBER REAR A
18
BLIND RIVET 4.8 X16
19
CROSSMEMBER REAR AXLE COM
23
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
23
SCREW TORX M7 X 23
24
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
24
NUT M10 -10
25
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
25
TORX SCREW M6 X 20 - 8.8TORX M10 X 40 S - 10.9, Replaced By: N910105010011
26
SPECIAL SCREW WITH SHANK
27
BOLT
27
SPECIAL SCREW WITH SHANK
30
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
31
NUT M8 -10
32
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
32
NUT M10 -10
33
HANGER STABILISER REAR AX
34
SCREW TORX M7 X 23
34
HEXALOBULAR BOLT TO LEFT STEERING KNUCKLE, FRONT AXLE
35
NUT BRACKET TO SIDE MEMBER M12X1.5
36
FUSE
37
TORX SCREW M6 X 20 - 8.8TORX M10 X 40 S - 10.9, Replaced By: N910105010011
37
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
39
SCREW TORX M7 X 23
39
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
40
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
40
NUT M10 -10
41
CONTROL ARM
44
SCUFF PROTECTION FOIL I-B
44
SCUFF PROTECTION FOIL I-B
