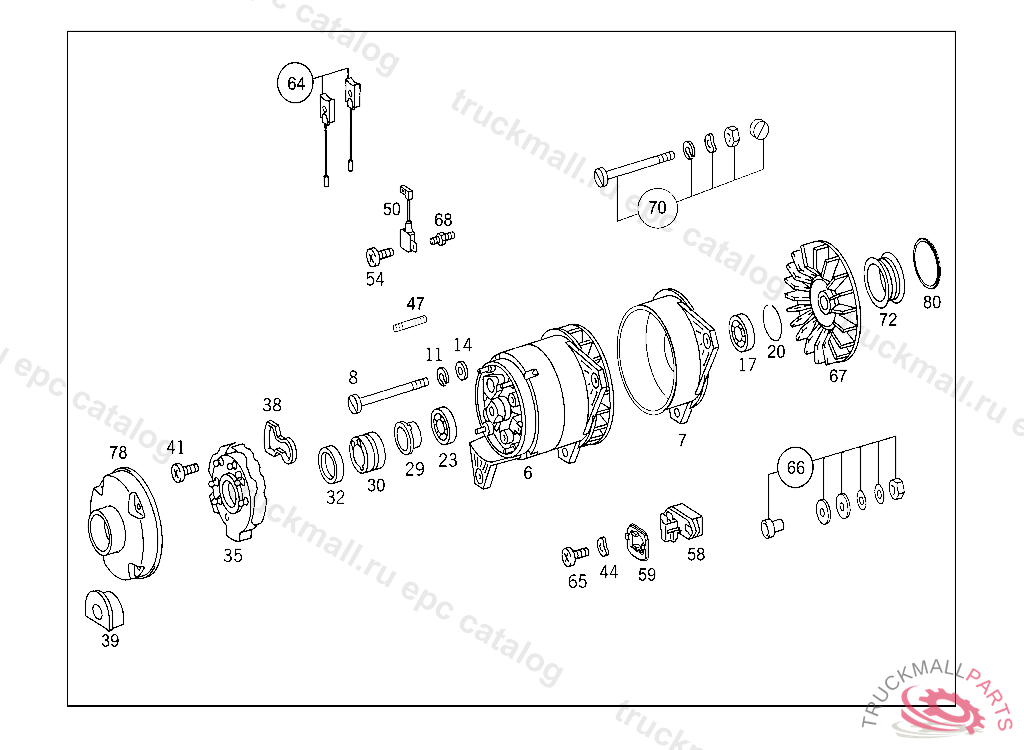

Поз.
Артикул
Описание
6
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
6
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY
6
ALTERNATORNL 1, 100 A/ 28V, FAN A 001 155 07 18 MUST BE REPLACED WITH FAN A 421 115 00 18 AND BELT PULLEY A 001 155 26 15 WITH BELT PULLEY A 421 115 00 15 ON ALTERNOTAR. ORDER ADDITIONALLY: 1 X A 421 155 00 15 + A 421 155 00 18,
6
ALTERNATOR28V/140A
7
BEARING
8
SCREW
8
SCREW HOUSING
8
SCREW
11
LOCK WASHER
14
WASHER COMPRESSED AIR LINE TO BRACKET
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
BALL BEARING
17
BALL BEARINGTO 007 154 27 02, 009 154 07 02
20
SNAP RING
23
BALL BEARING SLIP RING SIDE, Replaced By: A0079819025
23
BALL BEARINGTO 008 154 80 02
23
CYLINDR. ROLLER BEARING
23
CYLINDR. ROLLER BEARING SLIP RING SIDE
29
SPACER RING
29
RING
30
RING
32
SEAL RING
32
SEAL RING
35
RECTIFIER
35
RECTIFIERTO 009 154 08 02,008 154 78 02
38
GASKET
39
CABLE GROMMET. GASKETTO 011 154 50 02
41
SCREW RECTIFIER, NOT USED
41
SCREW T-FITTING TO BRACKET M4X25
44
SPRING WASHER ALTERNATOR CONNECTION D+
50
CONDENSER
50
CONDENSER THREE-PHASE ALTERNATOR INTERFERENCE SUPPRESSION
54
SCREW APPARATUS PLATE TO CAB,K 062140
58
REGULATOR AND CUT-OUT
58
REGULATOR AND CUT-OUT
58
REGULATOR
58
REGULATOR AND CUT-OUT
59
GASKET
64
CARBON BRUSH SETTO 009 154 07 02
64
CARBON BRUSH SET
65
SCREW REGULATOR MOUNTING TO 009 154 07 02
65
SCREW
66
TERMINAL TERMINALS: B+, B-, D+, W
67
FANTO 011 154 50 02
67
FAN
67
FAN TO BE EXCHANGED FOR A 421 155 00 18
68
PIN
70
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
70
REPAIR KIT ROTOR
72
PULLEY AT ALTERNATOR
72
PULLEY TO BE EXCHANGED FOR A 421 155 00 15
72
PULLEY AT ALTERNATOR
72
PULLEY AT ALTERNATOR
72
PULLEY AT ALTERNATOR
72
PULLEY AT ALTERNATOR
78
COVER
