Поз.
Артикул
Описание

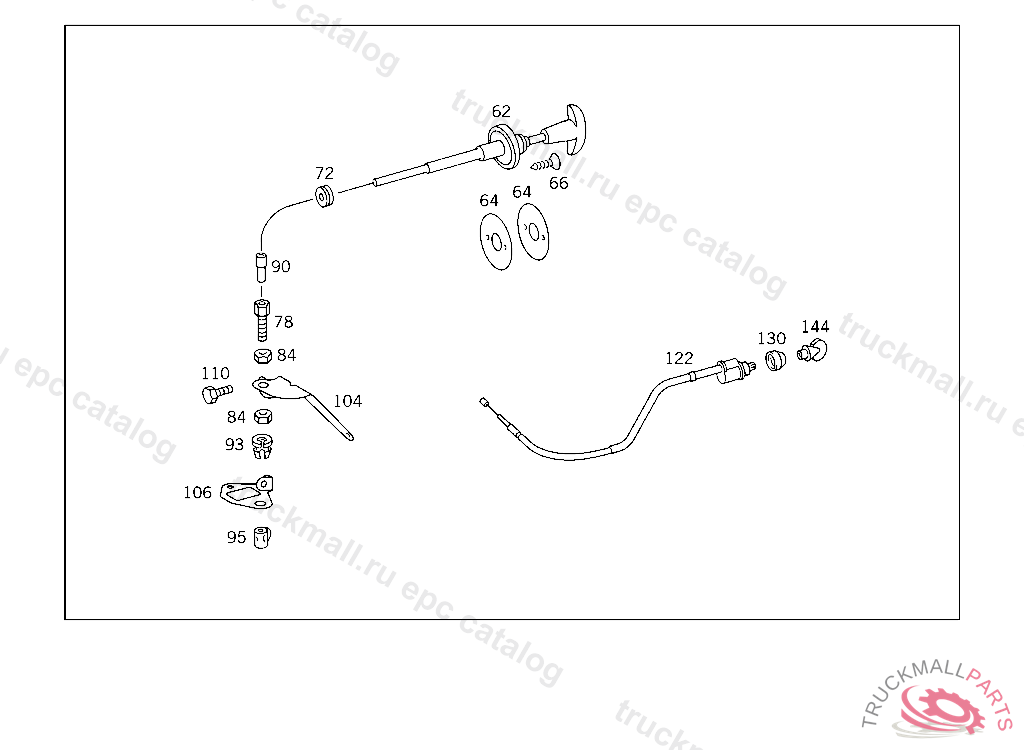

62
MANUAL CONTROL
62
MANUAL CONTROL , Replaced By: A4613000026
64
WASHER
64
WASHER
66
TAPPING SCREW BRACKET MOUNTING
66
SHEET METAL SCREW , Replaced By: N000000000447
66
SHEET METAL SCREW SLOTTED GATE TO FLOOR SHIFT, 124.0,124.1 : F 063052 124.2,124.3 : F 079076
72
GROMMET , Replaced By: A3179970281
72
GROMMET CLOCK
78
SCREW WIRE CABLE TO BRACKET
84
NUT , Replaced By: N304035008001
84
NUT
90
SLEEVE IDLING ADJUSTMENT, 10/50 FROM IDENT NO. 240085-499999-P 000001 ALSO INSTALLED ON 230112-230115,230202,230331-230335,234605,234726,235450,238246,238997,239955. 20/60 FROM IDENT NO. 240114-499999 ALSO INSTALLED ON 237249,239122 FROM IDENT NO. 556500 ALSO INSTALLED ON 548162,551144,551145,551405,551606,552633 P 000001 UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
93
BUSHING IDLING ADJUSTMENT WIRE CABLE
95
END PIECE WIRE CABLE
104
BRACKET BRACKET TO ACCELERATOR CONTROL BRACKET
106
LEVER MANUAL CONTROL
110
SCREW IN CASE OF SUBSEQUENT INSTALLATION
122
WIRE CABLE
130
NUT
144
BUTTON. KNOB
999
SPACER RING CONTROL SHAFT TO ENGINE
999
SHIM CONTROL LEVER TO CONTROL SHAFT
999
BRACKET
999
BRACKET
999
LOCK LEVER TO ADJUSTER LINK
999
SHAFT
