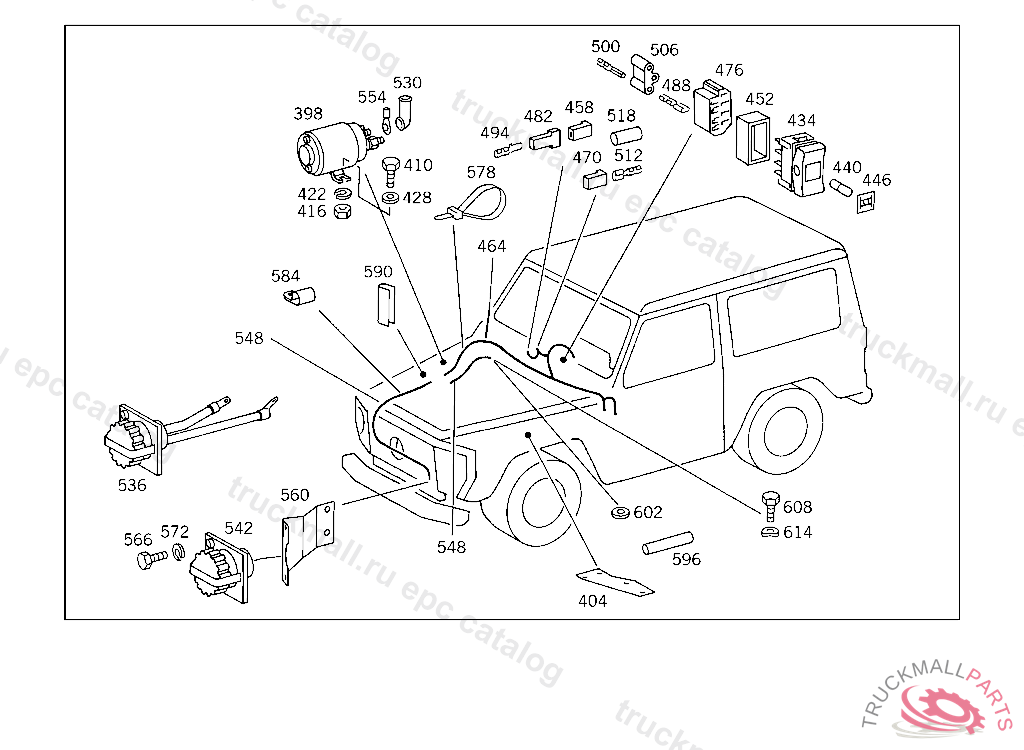

Поз.
Артикул
Описание
398
CONTACTOR RELAY
398
CONTACTOR RELAY
404
BRACKET CONTACTOR
410
SCREW , Replaced By: N304017005002
410
SCREW BRACKET TO TAIL LAMP BRACKET
410
SCREW LEVER TO SHAFT
416
NUT TACHOGRAPH TO BRACKET
422
LOCK WASHER BRACKET TO STEERING COLUMN END
428
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
428
WASHER , Replaced By: N009021005205
434
SWITCH , 041889 901991
434
SWITCH FUEL PREHEATING
434
SWITCH IN CENTRAL CONSOLE
434
SWITCH SIGNAL LAMP
440
BULB HAZARD WARNING LIGHT SWITCH
446
LENS SWITCH
452
ADAPTER FRAME
458
PIN BUSHING HOUSING UNIPOLAR
464
CABLE HARNESS FROM SWITCH TO RELAY
464
CABLE HARNESS FROM SWITCH TO RELAY
464
CABLE HARNESS FROM SWITCH TO RELAY
464
CABLE HARNESS FROM SWITCH TO RELAY
470
PIN BUSHING HOUSING UNIPOLAR
476
PIN BUSHING HOUSING 8-POLE
482
PIN BUSHING HOUSING UNIPOLAR
488
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
494
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
500
BUSHING (ROUND PIN BUSHING)
506
PIN BUSHING HOUSING
512
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
518
GROMMET1.75 MM
530
BOOT BATTERY MASTER SWITCH
536
PLUG SOCKET
542
PLUG SOCKET BIPOLAR
548
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
548
ELECTRIC CABLE FROM BATTERY TO TRANSMISSION, ORDER BY THE METER
554
CABLE SHOE NEG. CABLE
560
BRACKET PLUG SOCKET
566
SCREW LICENSE PLATE TO BRACKET
566
SCREW , Replaced By: N304017006020
572
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
578
LOOM TIE LINE MOUNTING 280 MM
584
CLAMP WIRE CABLE TO SIDE MEMBER AND TO TRANSMISSION
590
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
596
GROMMET5.0 MM
602
WASHER EXHAUST MUFFLER TO STRAP
602
WASHER , Replaced By: N000125008443
608
SCREW , Replaced By: N304017006034
608
SCREW COVER PLATE TO COVER PLATE M 6 X 10
614
SPRING WASHER LICENSE PLATE TO BRACKET
999
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
999
CABLE WINCH , Replaced By: A0005600700
999
CABLE WINCH RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION ROTZLER,12 V
999
SWITCH , Replaced By: A0025451107
999
LOOM TIE , Replaced By: A0019978390
999
CLIP CABLE HARNESS MOUNTING
999
CABLE HARNESS FROM AUTOMATIC SWITCH TO GROUND
999
CONTROL UNIT
999
ELECTRIC CABLE FROM BATTERY TO TRANSMISSION, ORDER BY THE METER
