Поз.
Артикул
Описание
5

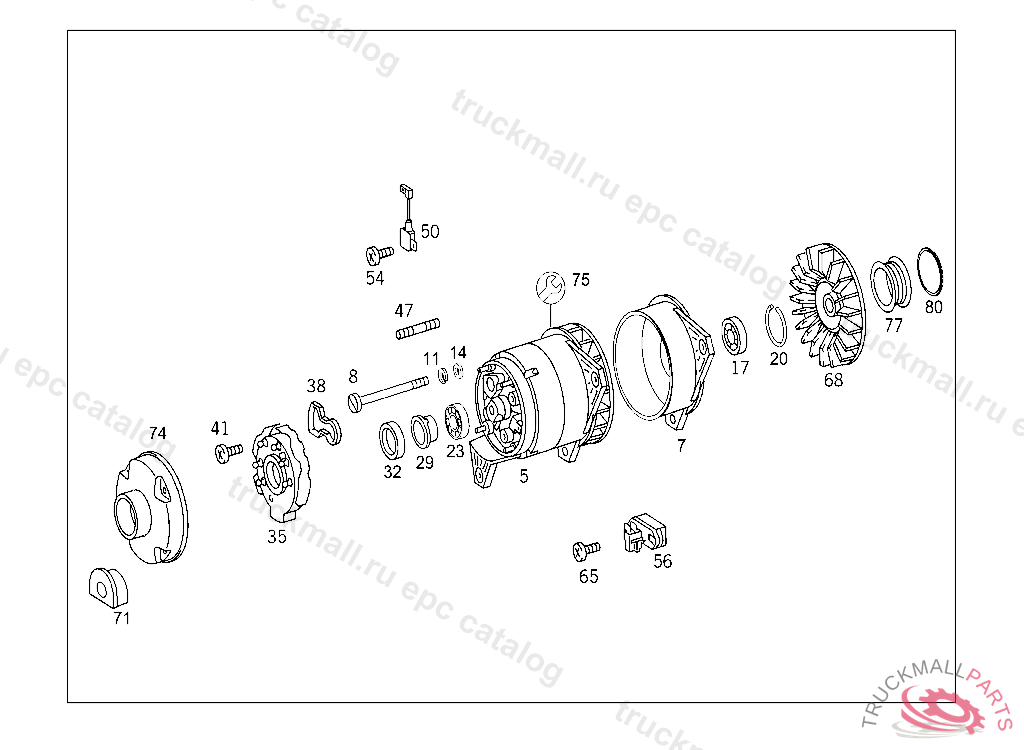

ALTERNATOR , Replaced By: A4761547701
5
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY
7
BEARING
8
SCREW
11
LOCK WASHER
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
14
WASHER COMPRESSED AIR LINE TO BRACKET
17
BALL BEARING
20
SNAP RING
23
CYLINDR. ROLLER BEARING
29
SPACER RING
32
SEAL RING
35
RECTIFIERTO 009 154 08 02,008 154 78 02
38
GASKET
41
SCREW
41
SCREW T-FITTING TO BRACKET M4X25
47
STUD
50
CONDENSER
54
SCREW APPARATUS PLATE TO CAB,K 062140
56
REGULATOR
56
REGULATOR SWITCH
65
SCREW REGULATOR MOUNTING TO 009 154 07 02
68
FAN
68
FANTO 011 154 50 02
71
CABLE GROMMET. GASKETTO 011 154 50 02
74
COVER
75
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
77
PULLEY AT ALTERNATOR, Replaced By: A4571551815
77
BELT PULLEY F POLY-V BELT AT ALTERNATOR, Replaced By: A4571551915
77
BELT PULLEY F POLY-V BELT
77
BELT PULLEY F POLY-V BELT
80
INTERFERENCE SUPP. CAP ALTERNATOR
