Поз.
Артикул
Описание

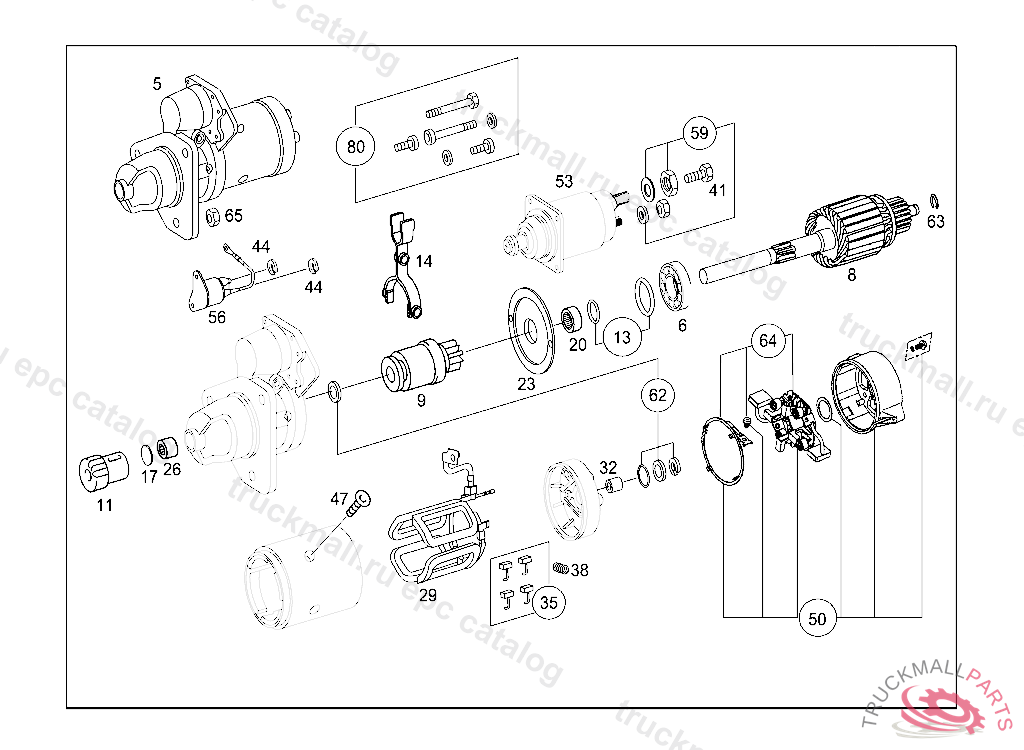

5
STARTING MOTORBOSCH, 24V/6,2KW
5
STARTER MOTOR24V, MITSUBISHI, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STARTING MOTOR24V, MITSUBISHI, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0071510401
5
STARTING MOTOR24V, MITSUBISHI, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART EXHAUST STOCK OF OLD PARTS UP TO ENGINE 57007, Replaced By: A0061516901
6
BEARING REAR MITSUBISHI
6
BEARING FRONT MITSUBISHI
8
ARMATURETO 457 151 03 01
9
GEARINGBOSCH
11
PINIONMITSUBISHI
13
SEAL RING PARTS KIT MITSUBISHI
14
CONTROL LEVERBOSCH
17
GASKETTO 457 151 03 01
20
NEEDLE BEARINGBOSCH
23
BEARINGTO 457 151 03 01
26
NEEDLE BEARINGBOSCH
29
EXCITER COILTO 457 151 03 01
29
EXCITER COILMITSUBISHI
32
BUSHINGTO 004 151 58 01/003 151 87 01
35
CARBON BRUSH SETBOSCH
35
CARBON BRUSH SETMITSUBISHI TO:A0061516901/1501
38
SPRINGTO 004 151 58 01
41
SCREWBOSCH
44
LOCK WASHERBOSCH
47
SCREWTO 004 151 58 01
50
STATOR CASING COVERMITSUBISHI TO A0071510401
53
SOLENOID SWITCH ENGAGEMENT RELAY BOSCH
53
SOLENOID SWITCH ENGAGEMENT RELAY MITSUBISHI
56
SOLENOID SWITCH STARTING MOTOR BOSCH
56
SOLENOID SWITCH CONTROL RELAY MITSUBISHI
59
TERMINAL TERMINALS: B+, B-, D+, W
62
ARMATURE PARTS KIT TO 457 151 03 01
63
SNAP RING PARTS KIT MITSUBISHI
64
CARBON BRUSH SETMITSUBISHI TO:A0071510401
65
NUT BRACKET TO SIDE MEMBER M12X1.5
80
TS HEXAGON HEAD BOLT
