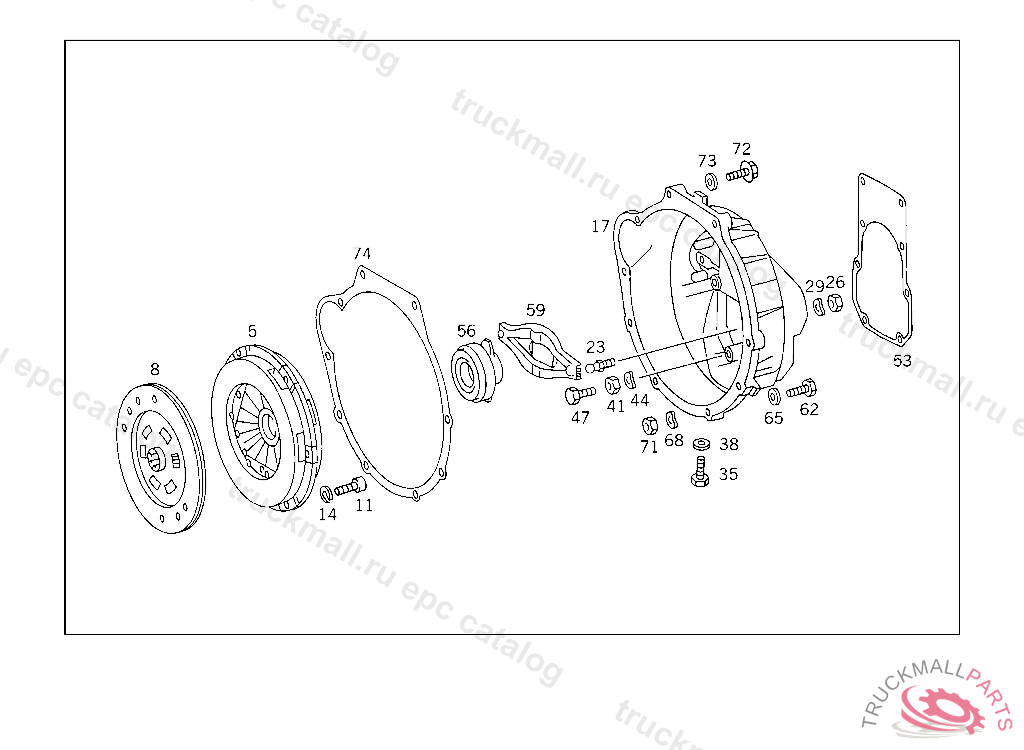

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE , ORDER ADDITIONALLY ALSO: 6X 000912 008012 PRIOR TO ASSEMBLY, PLEASE REFER TO UP TO DATE TROUBLE DIAGNOSIS, NO.25-88121 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
CLUTCH DISC , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
SCREW
11
SCREW , Replaced By: N000000000190
14
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
HOUSING
23
BALL PIVOT
26
NUT BRACKET TO EXHAUST PIPE BRACKET
29
SPRING WASHER STEERING COLUMN BRACKET TO CAB
35
SCREW , Replaced By: N304017008016
35
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
SEAL RING BRACKET TO CYLINDER HEAD
41
NUT BRACKET TO SUPPORT AND TO END PIECE
44
SPRING WASHER STEERING COLUMN BRACKET TO CAB
47
SCREW BRACKET TO FRAME SIDE MEMBER
72
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
72
SCREW EXHAUST PIPE TO BRACKET
73
WASHER BRACKET TO RIGHT FENDER, 415 5 014668 416 5 000515 417 4 972023
74
GASKET TRANSMISSION TO ENGINE
