Поз.
Артикул
Описание

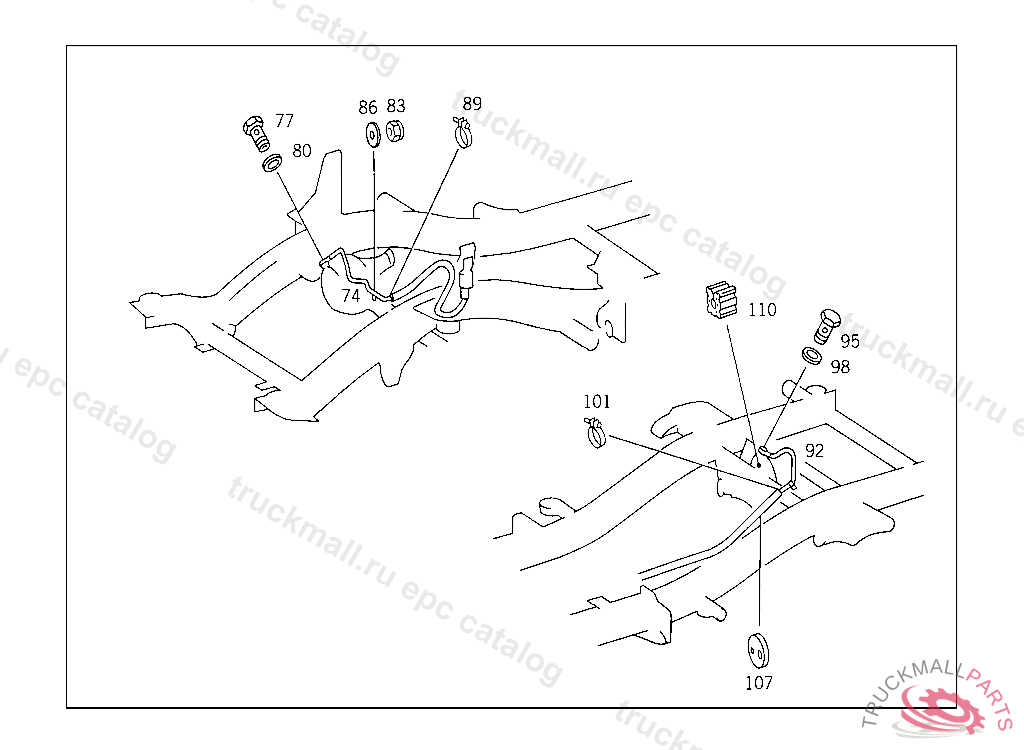

74
LINE BREATHER, FROM IDENT NO. 024492 SEE UNIT MICROFICHE
77
HOLLOW SCREW 4/2-WAY VALVE
80
SEAL RING FITTING TO AXLE HOUSING
83
NUT OIL TANK TO BRACKET
83
NUT , Replaced By: N913002006009
86
WASHER , Replaced By: N009021006208
86
WASHER COMPRESSED AIR LINE TO BRACKET
89
CLAMP RISING PIPE,5 4734955 909351
92
LINE REAR AXLE, FROM IDENT NO. 023132 SEE UNIT MICROFICHE009535
95
HOLLOW SCREW 4/2-WAY VALVE
98
SEAL RING FITTING TO AXLE HOUSING
101
CLAMP LINE MOUNTING
