Mercedes A1409900120 - БОЛТ М10

290 GDT 461.335 TO CHASSIS 144225

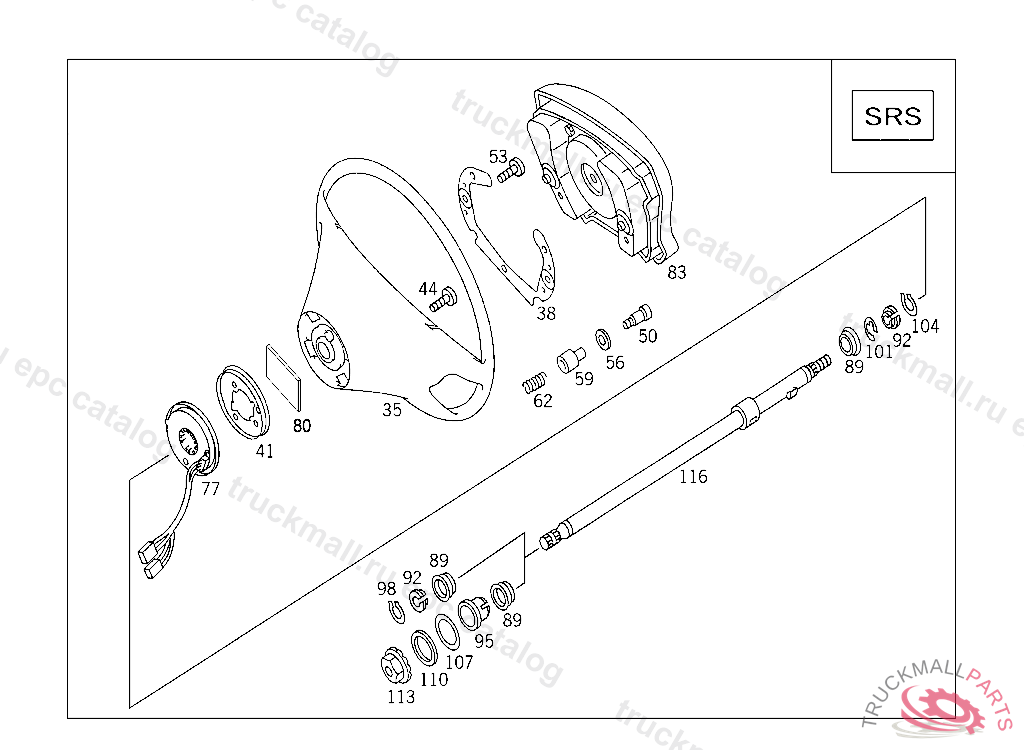

46 STEERING - 110 STEERING WHEEL AND STEERING COLUMN IL. 2

Поз.
Артикул
Описание
35
A1404604003
STEERING WHEEL , A 394035 J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 WITH CODE 807 NO.9045 INO.5070 I....... INO.8310 INO.8F94 INO.9045 INO.9045 INO.9045 I....... I, Replaced By: A1404604703
35
A1404603603
STEERING WHEEL ,A 123447, Replaced By: A1404604603
38
A1404601041
CONTACT BRIDGE
41
A1404640345
FLANGE ONLY USED WITH AIRBAG, 116944 914009
44
A1409900120
SCREW ,F 189738
50
A1409900121
SCREW
53
A1249900520
SCREWM 6X16
56
A1244640123
INSULATING PLATE
59
A1164640050
BUSHING ,F 189738
62
A1409931501
SPRING
77
A1704600149
CONTACT PIECE CONTACT SPIRAL, F264121
77
A1704600049
CONTACT PIECE , Replaced By: A1704600149
80
A4636820040
INSULATION CONTACT SPIRAL
83
A1404601298
AIR BAG , Replaced By: A1404602798
89
A1269810025
BALL BEARING
92
A1404620751
RING , C 014018 J 016700
95
A1404620151
RING
98
N912009025100
SNAP RING
101
A0009946540
SNAP RING , F264121
104
A1404620273
LOCK
107
A1269931326
DISC SPRING
110
N001440025002
WASHER LEVER TO CONSOLE
113
A1404620072
NUT
116
A4634600309
STEERING SHAFT , 113920
116
A4634600909
STEERING SHAFT , 113921
999
A4614620052
SPACER WASHER STEERING COLUMN JACKET TUBE TO FIRE WALL
