Mercedes A0025450628 - КЛЕММА

G500 / G 55 AMG 463.240 FROM IDENT-NO.106740

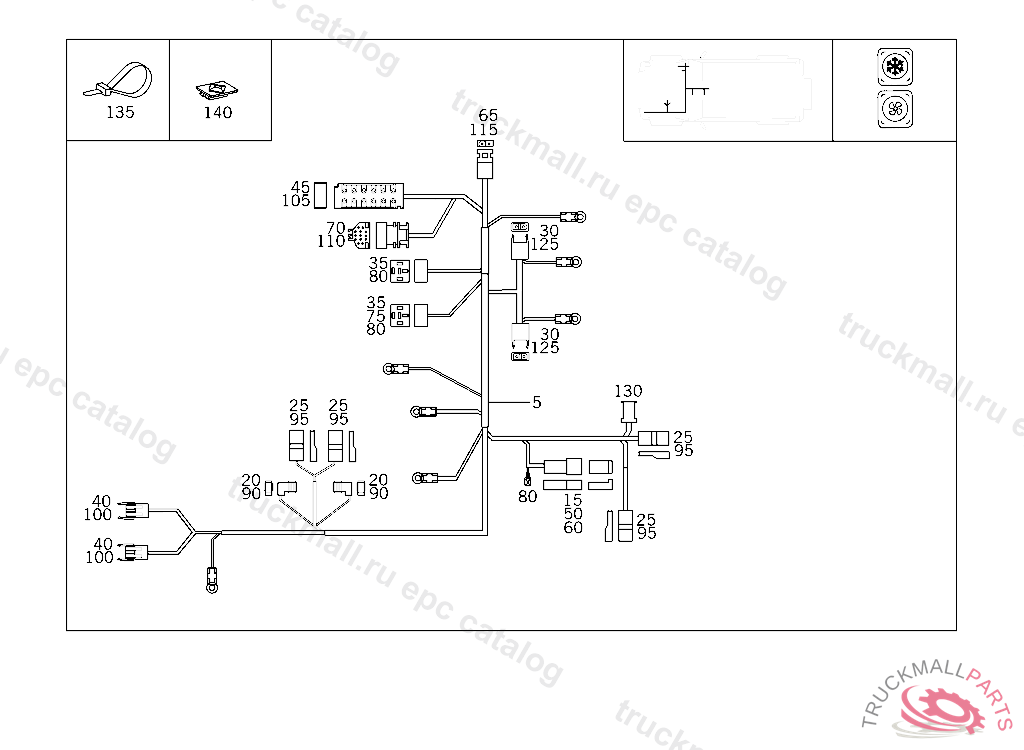

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 483 WIRING HARNESS FOR AIR CONDITIONING SYSTEM IL. 1

Поз.
Артикул
Описание
15
A0025451128
PIN BUSHING HOUSING UNIPOLAR
20
A0055457228
SOCKET HOUSING. PIN BUSHING HOUSING
25
A0005453545
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
35
A0065450728
PIN BUSHING HOUSING 5-POLE
50
A0025451328
PIN BUSHING HOUSING UNIPOLAR
60
A0025450628
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
80
A0075458226
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
90
A0085459826
PIN BUSHING LESS DETENT 1-2.5 MM2
130
A0008250082
SOCKET (SET POINT SENDER UNIT)
135
A0019978390
LOOM TIE LINE MOUNTING 280 MM
