Поз.
Артикул
Описание

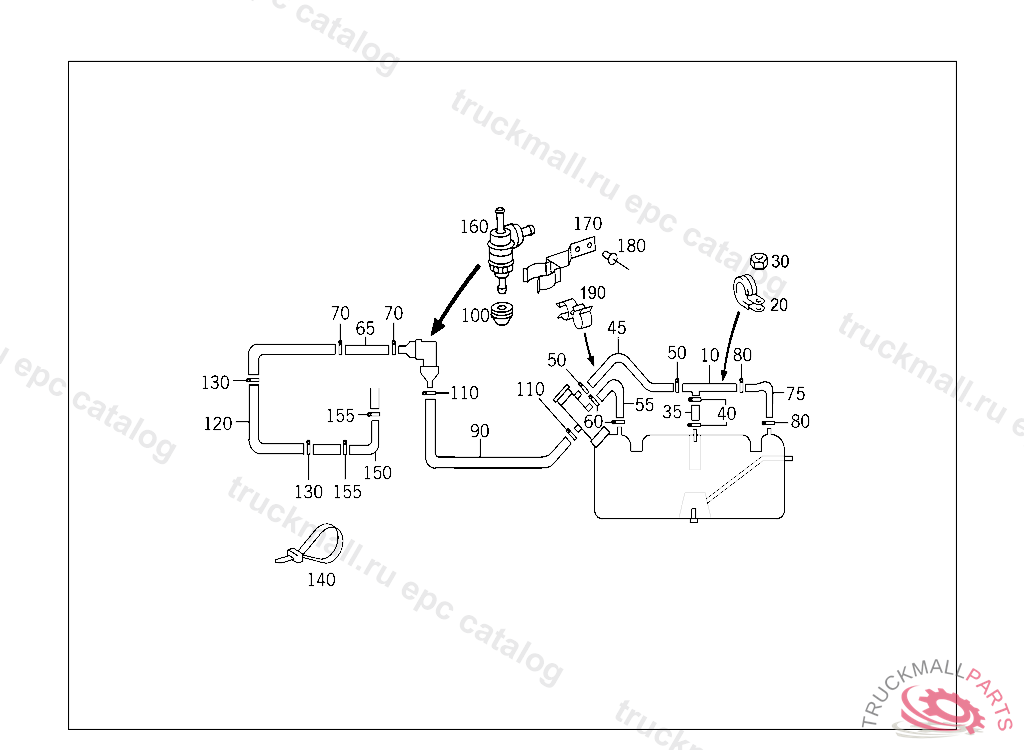

10
BREATHER AT FRAME ABOVE FUEL TAK
20
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
30
NUT SPRING-LOADED PUSH ROD
35
HOSE BETWEEN FUEL TANK AND FILLER NECK, ORDER BY THE METER
40
LOOM TIE FROM COOLING PIPE TO PUMP
45
HOSE BETWEEN FUEL TANK AND FILLER NECK, ORDER BY THE METER
50
LOOM TIE FROM COOLING PIPE TO PUMP
55
HOSE BETWEEN FUEL TANK AND FILLER NECK, ORDER BY THE METER
60
LOOM TIE FROM COOLING PIPE TO PUMP
65
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
70
LOOM TIE
75
HOSE BETWEEN BREATHER PIPE AND FUEL CONTOUR LEFT TO A 461 470 01 04
80
LOOM TIE FROM COOLING PIPE TO PUMP
90
HOSE BETWEEN BREATHER AND GRAVITIY VALVE
100
GROMMET
110
LOOM TIE
120
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
130
LOOM TIE
140
LOOM TIE LINE MOUNTING 280 MM
150
HOSE (VENT VALVE), 055662 903941
155
LOOM TIE
160
VALVE COMBINATION VALVE
170
BRACKET AT VALVE
180
RIVET TYPE PLATE
190
HOSE BRACKET. LOOM TIE
