Поз.
Артикул
Описание

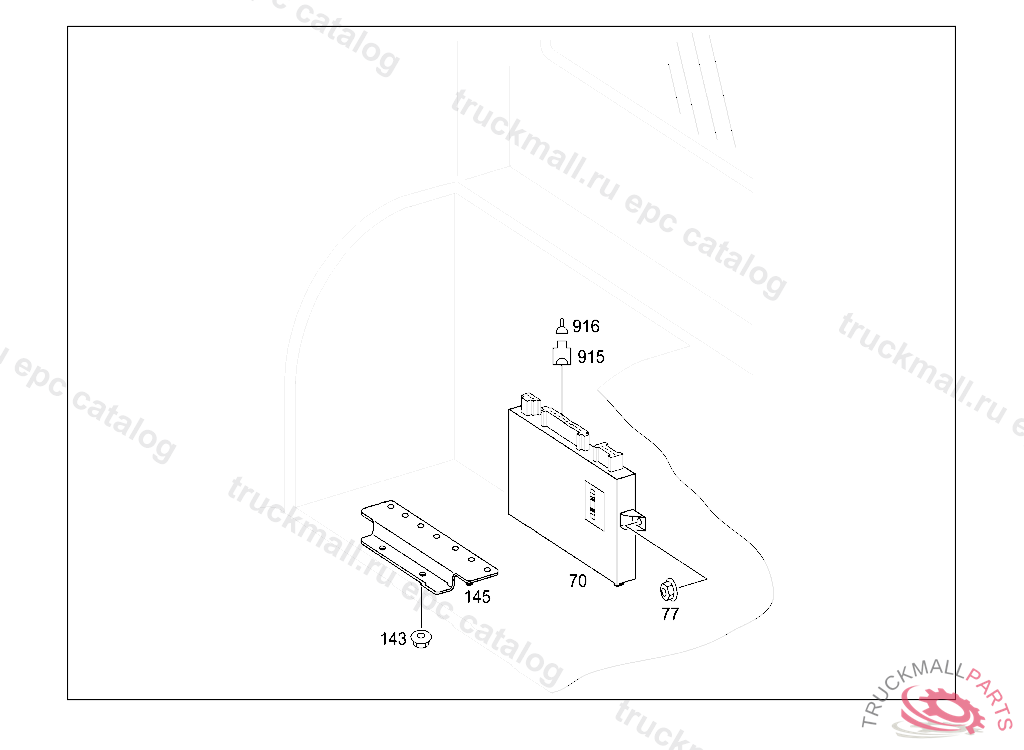

70
CONTROL UNIT TRAILER COUPLING N28/1, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
70
CONTROL UNIT TRAILER COUPLING, A 82673920050630806 E 01999920070101806
70
CONTROL UNIT OPERATION WITH TRAILER, J 53092220070910
70
CONTROL UNIT REAR RIGHT N28/1, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
77
NUT RELAY TO BRACKET M5
143
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
145
BRACKET MOUNTING FOR RELAYS,CONTROL UNIT COMPARTMENT IN LOAD COMPARTMENT
915
PLUG HOUSING CONTROL MODULE SAM/SRB REAR 14-PIN MQS,N10/2
915
CLUTCH LEFT TAIL LAMP 6-PIN MCP2.8,E3
916
REP.SET CONTACT0.75 MM2 MQS, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
916
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
