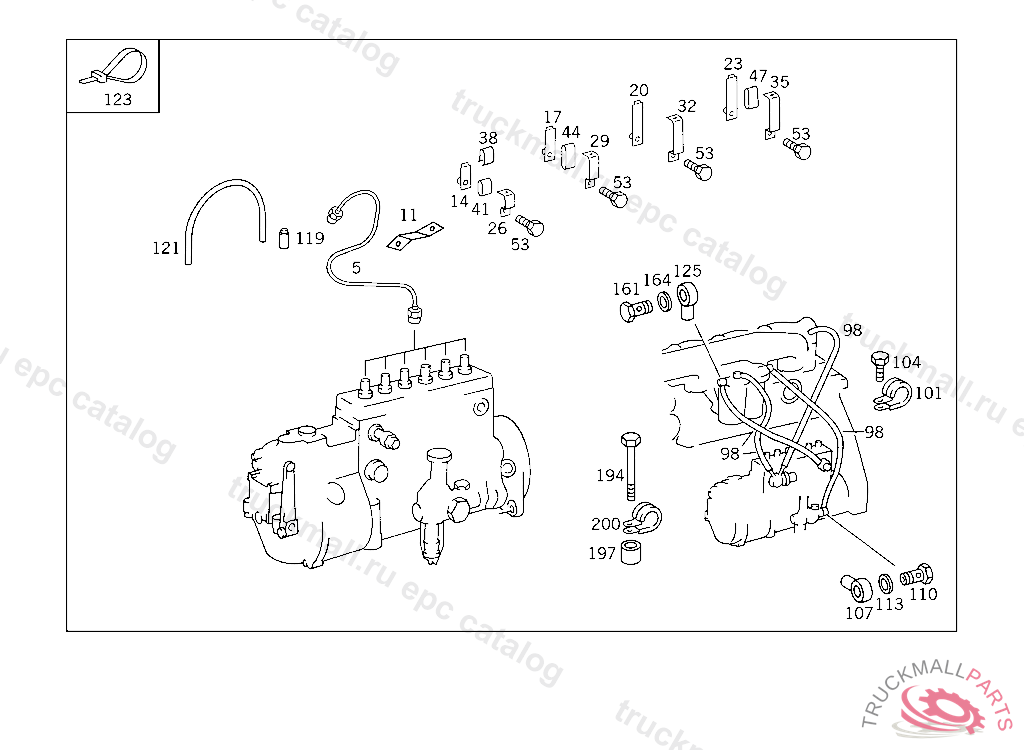

Поз.
Артикул
Описание
5
LINE CYLINDER NO.2
5
LINE CYLINDER NO.2
5
LINE CYLINDER NO.5
5
LINE CYLINDER NO.3
5
LINE CYLINDER NO.5
11
BRACKET
14
CLAMP FOR FIVE LINES
14
CLAMPING PIECE , Replaced By: A0009951407
17
CLAMP DELIVERY LINE
17
CLAMPING PIECE , FROM ENGINE 461719 YEAR OF MANUFACTURE 1998, Replaced By: A0009951107
17
CLAMP
20
CLAMPING PIECE FOR FOUR LINES TO 496 995 03 22
23
CLAMPING PIECE FOR FIVE LINES TO 496 995 04 22
26
CLAMP DELIVERY LINE
26
CLAMP , Replaced By: A0009952607
29
CLAMP
29
CLAMP , Replaced By: A4229950122
29
CLAMP DELIVERY LINE
29
CLAMP FOR THREE LINES
32
PIPE BRACKET FOR FOUR LINES
35
CLAMP FOR FIVE LINES
35
CLAMP , Replaced By: A0009952907
38
PIPE BRACKET FOR TWO LINES, FROM ENGINE 134342 YEAR OF MANUFACTURE 1990 UP TO ENGINE 461718 YEAR OF MANUFACTURE 1998
41
SHIM FOR TWO LINES, FROM ENGINE 134342 YEAR OF MANUFACTURE 1990 UP TO ENGINE 461718 YEAR OF MANUFACTURE 1998
41
SHIM FOR TWO LINES TO 496 995 01 22
44
SHIM FOR THREE LINES TO 496 995 01 22,02 22
44
SHIM FOR THREE LINES TO 496 995 03 22
47
SHIM FOR FIVE LINES TO 496 995 04 22
53
SCREWM 6X12
53
SCREWM6X12, TO 496 995 01 22, 02 22, 03 22
98
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
110
HOLLOW SCREW
119
SCREENING NOZZLE HOLDER
121
HOSE (COLLECTING CONNECTOR),019450
121
HOSE , Replaced By: A4079976482
123
LOOM TIE
123
LOOM TIE ELECTRIC CABLE MOUNTING
125
BANJO UNION10/14
161
HOLLOW SCREW
164
SEAL RING INJECTION PUMP
194
SCREW INJECTION PUMP DRIVE TO TIMING CASE M 8X140
197
SPACER TUBE SHAPED HOSE ON AIR INTAKE PIPE
200
CLAMP
