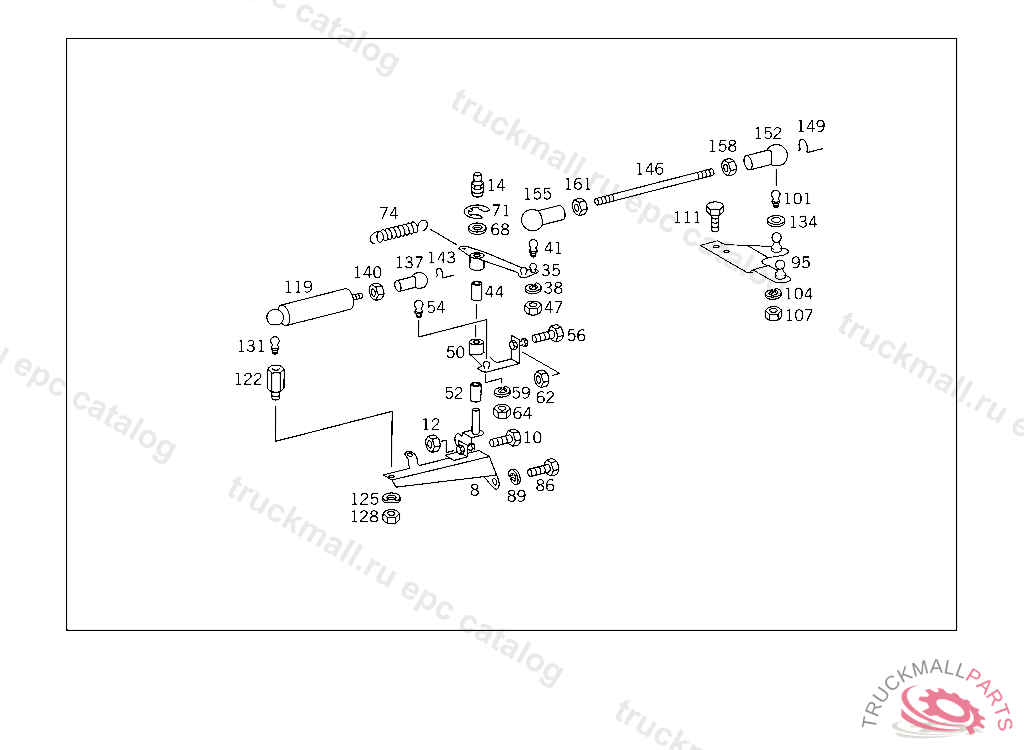

Поз.
Артикул
Описание
8
SUPPORT CONTROL
8
BRACKET CONTROL
10
SCREW , Replaced By: N304017006037
12
NUT CYLINDER TO BRACKET TO0002902112
14
GREASE NIPPLE
35
LEVER
38
LOCK WASHER RESISTOR
41
BALL PIVOTTO 475 070 13 12
41
BALL PIVOT ROD TO INJECTION PUMP LEVER
44
BUSHING
47
NUT , Replaced By: N304032006004
50
LEVER IDLING STOP
50
LEVER
52
BUSHING
54
BALL PIVOTTO 475 070 13 12
54
BALL PIVOT ROD TO INJECTION PUMP LEVER
56
SCREW , Replaced By: N304017006037
59
LOCK WASHER CLAMP TO BRACKET
62
NUT CYLINDER TO BRACKET TO0002902112
64
NUT
68
WASHER HUB CAP TO BRACKET
71
LOCK PLATE
74
SPRING RELEASE SPRING
86
SCREW LEVER TO RELEASE SHAFT
86
SCREW OIL TANK TO BRACKET
89
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
95
LEVER INJECTION PUMP CONTROL
95
LEVER AT INJECTION PUMP
101
BALL PIVOT ROD TO INJECTION PUMP LEVER
101
BALL PIVOTTO 475 070 13 12
104
LOCK WASHER CLAMP TO BRACKET
107
NUT , Replaced By: N304032006004
119
CYLINDER (POWER CYLINDER)
122
PIVOT PIN POWER CYLINDER TO BRACKET
125
SPRING WASHER
128
NUT LEVER TO SHIFTING SHAFT
131
BALL PIVOT ROD TO INJECTION PUMP LEVER
134
SEAL RING MODULATION PRESSURE CONTROL
137
BALL SOCKET
137
BALL SOCKET CYLINDER TO LEVER
140
NUT SHUT-OFF CYLINDER
143
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
146
PULL ROD ,716898
146
PULL ROD INJECTION PUMP CONTROL LOCK-OUT
149
CIRCLIP ,B 884219
149
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
149
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
152
BALL SOCKET FROM INTERMEDIATE SHAFT LEVER TO CONTROL LEVER
152
BALL SOCKET ACCELERATOR CONTROL
155
BALL SOCKET PULL ROD TO LEVER
155
BALL SOCKET FROM INTERMEDIATE SHAFT LEVER TO CONTROL LEVER
158
NUT
158
NUT , Replaced By: N304032006004
161
NUT L.H. THREAD
161
NUT FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
999
SWITCH
