Главная
›
Mercedes
›
ENGINE
›
OM 449 LA
›
475.998
›

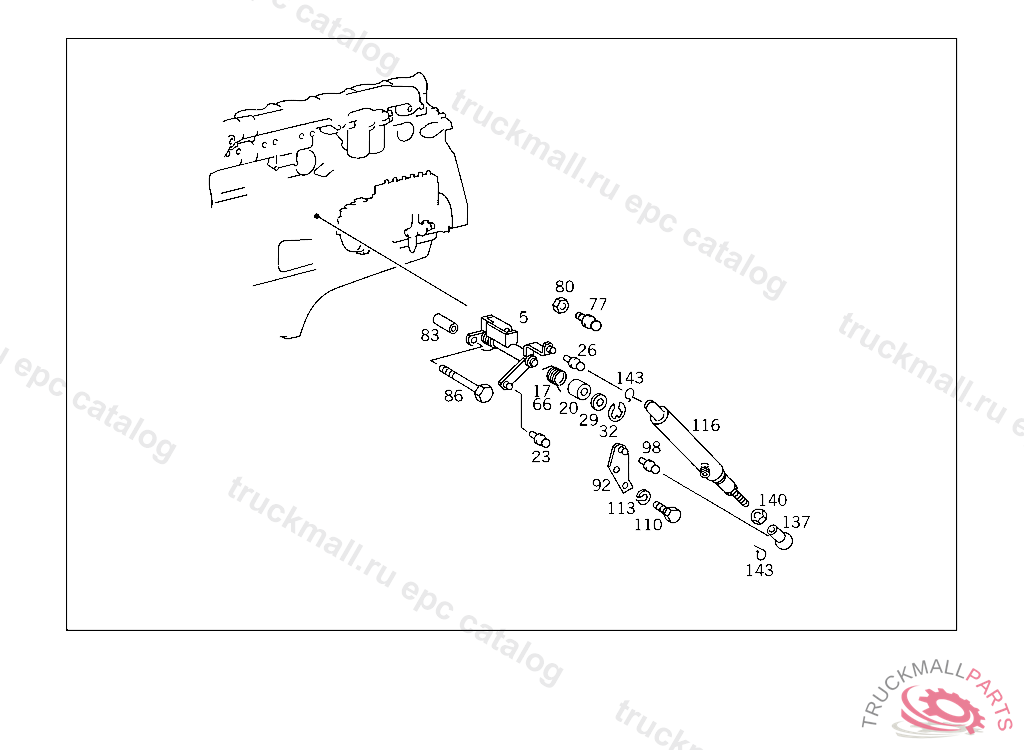

07 INJECTION PUMP
›
135 MANUAL CONTROL IL. 1
Mercedes A4229910022 - ШАРОВОЙ ПОДПЯТНИК
OM 449 LA 475.998
07 INJECTION PUMP - 135 MANUAL CONTROL IL. 1
Поз.
Артикул
Описание
5
A4760707240
BRACKET CONTROL, NOT USED
5
A4760707140
BRACKET CONTROL
17
A4039931110
SPRING
20
A3440727050
BUSHING CONTROL LEVER
20
A4039920001
BUSHING MOUNTING
26
N071803010209
BALL PIVOT , Replaced By: A3129910120
29
N000433013000
WASHER
32
N006799009003
LOCK PLATE
77
A4759917015
BALL PIVOT
80
N000934006000
NUT , Replaced By: N304032006004
86
N000931010399
SCREW STRAP TO BRACKET
92
A4750700221
LEVER AT INJECTION PUMP
98
A4759910015
BALL PIVOT
110
N000933006148
SCREW BRACKET TO CONSOLE
113
N000127006203
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
116
A0000721512
CYLINDER INJECTION PUMP CONTROL
116
A0000721812
CYLINDER , Replaced By: A0000721512
137
A4769917022
BALL SOCKET
137
A4229910022
BALL SOCKET
140
N900071008200
NUT , Replaced By: N900071008100
143
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
999
A4750700019
BEARING TUBE CONTROL SHAFT, NOT USED
999
N071412010300
GREASE NIPPLE
