Поз.
Артикул
Описание

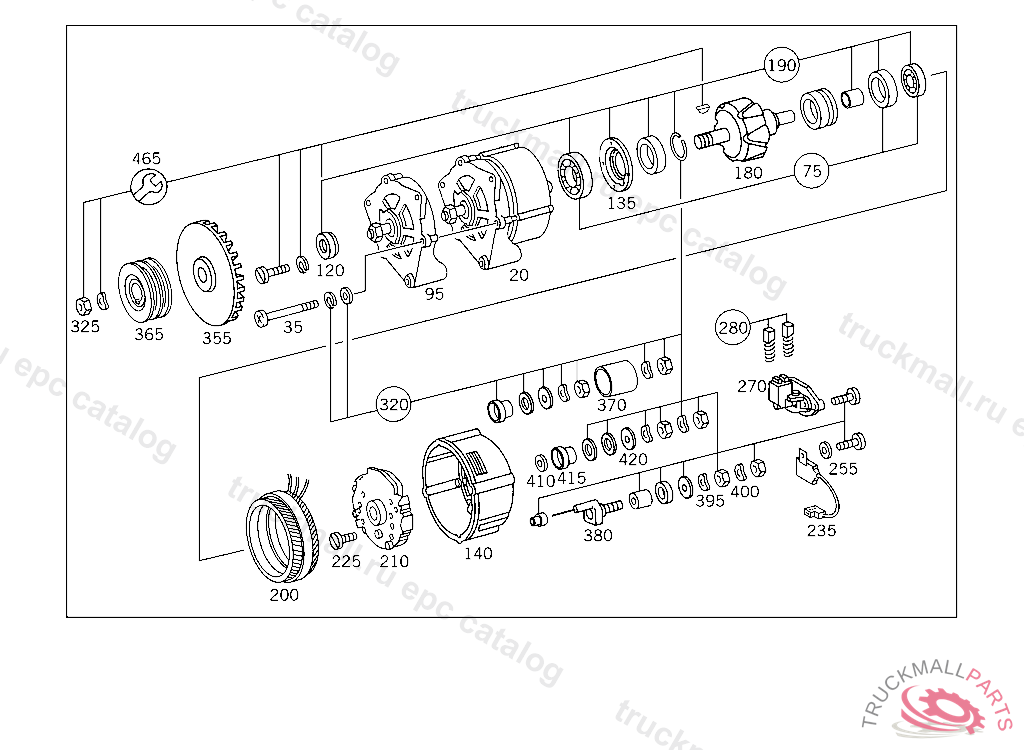

20
ALTERNATOR28V/140A, WAPSA
20
ALTERNATOR28V/140A, BOSCH
20
ALTERNATOR , Replaced By: A4761507950
35
SCREW , Replaced By: A0019906420
35
SCREWTO 344 150 73 50
35
SCREW
35
SCREW , MODEL 343.919.000 FROM ENGINE 154150,MODEL 344.919.000 FROM ENGINE 822957
35
SCREW
35
SCREWTO 345 150 76 50
35
SCREW , Replaced By: A0009909621
75
BALL BEARING FRONT AND REAR
95
COVER
120
RINGTO 009 154 72 02, 345 154 76 01
135
COVER
140
COVERTO 009 154 72 02
140
BEARINGTO 476 154 77 01, 345 154 76 01
140
BEARING , Replaced By: A0001540949, +001A0001550250
180
ROTOR , Replaced By: A0001547815
180
ROTORTO 366 150 07 50, APPLICABLE TO ALTERNATOR HAVING BOSCH NO.0 120 469 982
180
ROTOR
180
ROTOR
190
REPAIR KIT ROTOR
200
EXCITER COIL
200
COIL
210
RECTIFIERTO 005 154 45 02,006 154 86 02
210
RECTIFIER
210
RECTIFIER , Replaced By: A0001545116
225
SCREW
235
CONDENSER
235
CONDENSER , Replaced By: A0011566701
235
CONDENSER
255
WASHER
270
REGULATOR AND CUT-OUT
270
REGULATOR AND CUT-OUT
280
CARBON BRUSH SET
320
INSULATOR TERMINALS: B+, B-, D+, W
325
NUT WEAR INDICATOR
325
NUT PULLEY TO ALTERNATOR
325
NUT
355
FAN
355
FANTO 376 150 80 50,86 50
355
FAN
365
PULLEYTO 345 154 76 01, 476 154 76 01
365
PULLEYTO 476 150 79 50
370
COVER
380
STUD
395
WASHER
400
WASHER
410
WASHER
415
INSULATING BUSHING
420
WASHER
465
CLAMPING BOLT
999
BALL BEARING TIGHTENER PULLEY
999
BALL BEARING
999
V-BELT LOW TENSIBILITY 12.5X1718 MM, FROM IDENT NO. 004703 ALSO INSTALLED ON 004316,004586,004634,004640,004650,004662,004673
999
V-BELT12.5X1675
999
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
HUBTO 343 150 73 50,376 150 87 50,82 50
999
PULLEYTO 343 150 73 50, 376 150 83 50
999
ALTERNATOR
999
ALTERNATOR
999
NUT TIGHTENER PULLEY TO LEVER
999
SUPPORT TIGHTENER PULLEY
999
TIGHTENER PULLEY
999
CLAMPING PIECE
999
CAP
999
BRACKET BELT TENSION READJUSTMENT
999
SPACER TUBE BRACKET AND FILLER NECK ON WATER PUMP
999
ALTERNATOR28V 35A, WITH TERMIANL "W"
999
CLAMPING BOLT FOR V-BELT TENSIONING
999
SUPPORT
999
BRACKET CLAMPING BOLT
999
CLAMPING BOLT
999
CLAMPING BOLT (CLAMPING BOLT)
999
ALTERNATOR
999
WASHER SUPPORT TO FRAME,D 127794
999
LOCK RING
999
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
999
SCREW FENDER TO BRACKET, NOT USED
999
SCREW
999
SCREW TORSION BAR TO SHACKLE,5 903514
