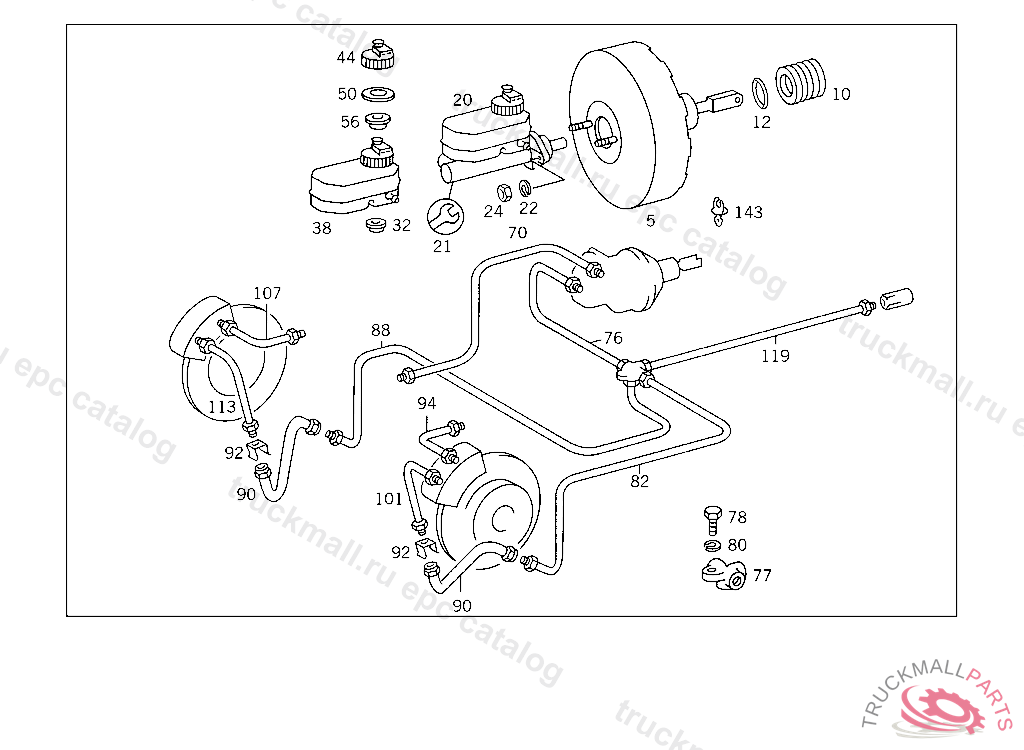

Поз.
Артикул
Описание
5
BRAKE BOOSTER ASSEMBLY
10
CUP
12
SEAL RING
20
BRAKE MASTER CYLINDER
20
BRAKE MASTER CYLINDER ,089607, Replaced By: A0044303001, +001A0014315802
20
BRAKE MASTER CYLINDER , Replaced By: A0044303001
21
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 807178, Replaced By: A0004302983
21
REPAIR KIT
22
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
24
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
32
PLUG ,089607
32
GUIDE BUSHINGTO 003 430 90 01, 30 01,089608
38
RESERVOIR
38
RESERVOIR ,089607, Replaced By: A0014315802, +001A0044303001
38
RESERVOIR , Replaced By: A0014315802
44
FILLER CAP
44
FILLER CAPTO 000 431 87 02
50
SEAL RING42X21.5 MM
56
STRAINER
70
LINE FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE
70
LINE , Replaced By: A1234205628
76
LINE , Replaced By: A1234205828
76
LINE FROM SPRING LOAD ACCUMULATOR TO RIGHT DISTRIBUTOR
77
DISTRIBUTOR QUADRUPLE, UP TO IDENT NO.: 779683. FOR POST VANS UP TO IDENT NO.: 772626
78
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
82
LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
82
LINE , Replaced By: A1234206428
88
LINE , Replaced By: A6014205128
88
LINE , Replaced By: A1234207528
88
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
90
BRAKE HOSE BETWEEN THE LINES,730280
92
RETAINING SPRING BRAKE HOSE TO BRACKET
92
LOCK , Replaced By: A0004280673
94
LINE , Replaced By: A1234205028
94
LINE FROM LEFT AND RIGHT BRAKE HOSES TO LEFT AND RIGHT CALIPERS 180 MM
101
LINE FROM STEERING KNUCKLE TO CALIPER 160 MM
101
LINE , Replaced By: A1234209228
107
LINE , Replaced By: A1234205028
107
LINE FROM LEFT AND RIGHT BRAKE HOSES TO LEFT AND RIGHT CALIPERS 180 MM
113
LINE FROM STEERING KNUCKLE TO CALIPER 160 MM
119
LINE FROM MASTER CYLINDER TO ADAPTER FITTING, 000 193701 003 097469 086 006508 093 007717 102,103 209243 183 013349 190 020074 193 000014 200 006559 283 001514 INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
119
LINE , Replaced By: A1234207228
143
BRACKET RELEASE SPRING,625235
999
BRAKE BOOSTER ASSEMBLY *** 9 "
999
BRAKE BOOSTER ASSEMBLY
