Поз.
Артикул
Описание

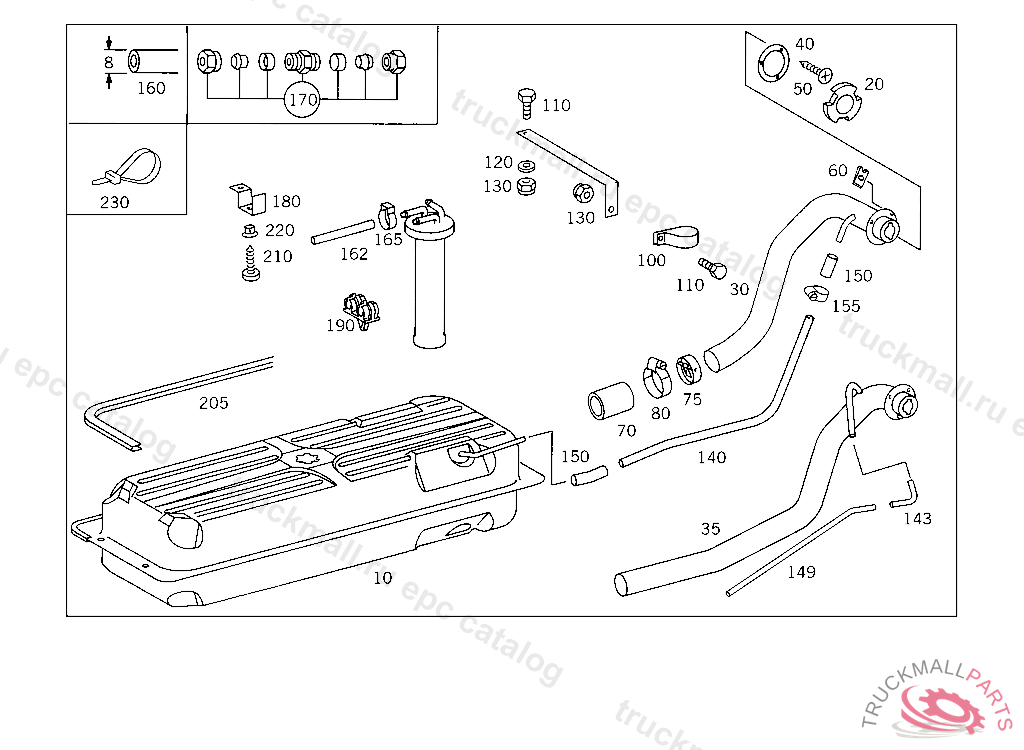

10
FUEL TANK RIGHT 70 L
10
FUEL TANK LEFT
10
FUEL TANK
10
FUEL TANK
10
FUEL TANK
10
FUEL TANK
20
FILLER CAP LESS TUMBLER
20
FILLER CAP , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 271415 EXHAUST STOCK OF OLD PART NUMBERS FIRST FROM CHASSIS 500001 - 592810, Replaced By: A6014710330
30
RISING PIPE LEFT, FROM IDENT NO. 826384 WHEELBASE: 3350 MM FROM IDENT NO. 831842 WHEELBASE: 3050 MM TO BE ADAPTED DURING ASSEMBLY
30
FILLER NECK , UP TO IDENT NO. 826383 WHEELBASE: 3350 MM UP TO IDENT NO. 831841 WHEELBASE: 3050 MM, Replaced By: A6014700726, +001A6014700028, +001A6014760126
35
RISING PIPE RIGHT, TO BE ADAPTED DURING ASSEMBLY
35
RISING PIPE
35
RISING PIPE
35
RISING PIPE
40
SEAL RING FILLER PIPE TO BODY
50
SHEET METAL SCREW
50
SHEET METAL SCREW , Replaced By: N007983004208
60
LOCK , Replaced By: A1409941045
60
LOCK , Replaced By: A0029945645
60
LOCK , Replaced By: A1409941045
60
LOCK FUEL LINE
70
HOSE (CONNECTING LINE)
70
EXTENSION , Replaced By: A6014760126
75
FLAP
80
CLAMP , Replaced By: N000000000672
80
LOOM TIE , Replaced By: N916017050000
80
CLAMP HOSE FASTENING 50-70X13 MM
100
CLAMP REAR EXHAUST PIPE TO MUFFLER,619061
100
CLAMP , Replaced By: N071555055500
110
SCREW , Replaced By: N304017008021
110
SCREW PIPE CLAMP
120
WASHER BRACKET TO LEFT SIDE MEMBER
120
WASHER , Replaced By: N009021008213
130
NUT , Replaced By: N913004008001
130
NUT SWITCH TO FLOOR PLATE
130
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
140
BREATHER PIPE FROM FILLER PIPE TO FUEL TANK
140
BREATHER PIPE FROM FILLER PIPE TO FUEL TANK
140
HOSE FEED LINE 12X15 MM, ORDER BY THE METER
140
BREATHER PIPE FROM FILLER PIPE TO FUEL TANK
140
BREATHER PIPE FROM FILLER PIPE TO FUEL TANK
140
BREATHER PIPE FROM FILLER PIPE TO FUEL TANK
140
BREATHER PIPE , Replaced By: A0005516256
140
BREATHER PIPE , Replaced By: A6014710215
140
BREATHER PIPE , Replaced By: A0005516256
143
BREATHER PIPE FROM FILLER PIPE TO FUEL TANK
143
BREATHER PIPE FROM FILLER PIPE TO FUEL TANK
149
BREATHER PIPE FROM FILLER PIPE TO FUEL TANK
150
HOSE FROM FILLER PIPE TO FUEL TANK 100 MM, UP TO CHASSIS 282507 AND FROM CHASSIS 500001-606219
150
BREATHER PIPE , Replaced By: A2024766726
150
BREATHER PIPE , Replaced By: A6014710815
155
CLAMP BREATHER LINE, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
160
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
162
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
165
LOOM TIE VENT VALVE TO FUEL TANK
170
FITTING , Replaced By: A0029905971
170
FITTING (PARTS KIT),LINE RUPTURE
180
BRACKET BRACKET TO CROSS MEMBER
190
BRACKET FUEL LINES
205
EDGE GUARD SECTION , ORDER BY THE METER
210
SHEET METAL SCREW BRACKET TO CAB FLOOR
220
CLAMPING NUT BRACKET TO FRAME
230
LOOM TIE
230
LOOM TIE , Replaced By: A1149970590
230
LOOM TIE , Replaced By: A0019978390
230
LOOM TIE LINE MOUNTING 280 MM
230
LOOM TIE FLEXIBLE SHAFT
999
BRACKET FILLER NECK TO SIDE MEMBER
999
BRACKET FUEL LINE TO FRAME
999
BRACKET FILLER NECK
