Поз.
Артикул
Описание

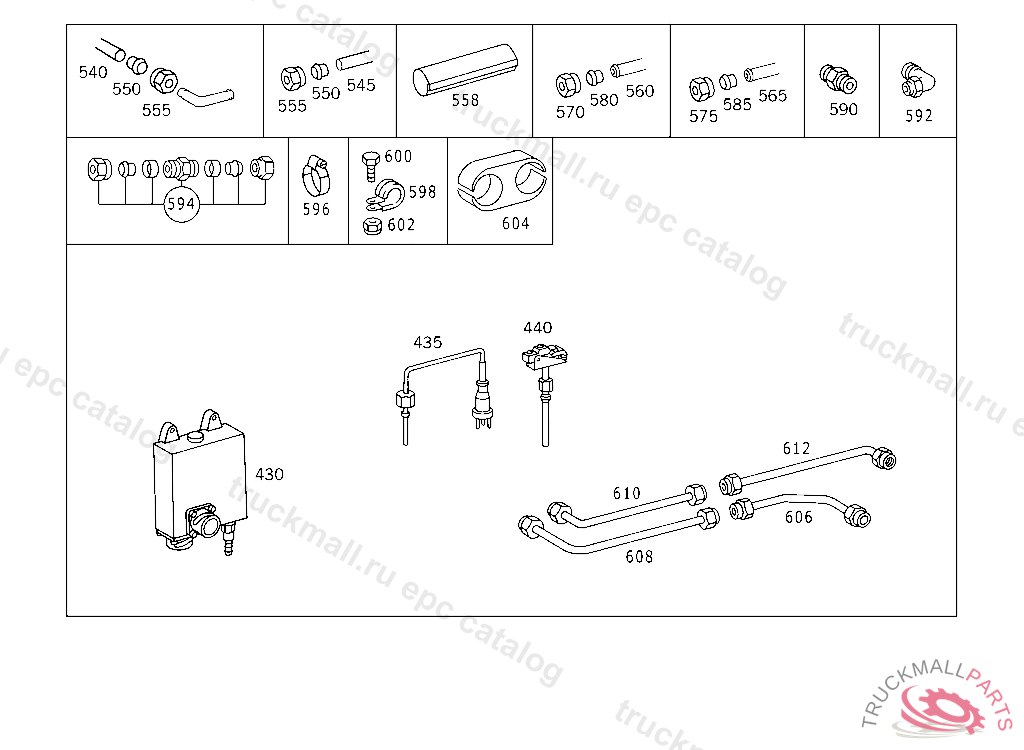

430
PFA ELECTRONICS PARTICLE FILTER
430
PFA ELECTRONICS PARTICLE FILTER
435
SENDER UNIT (TEMPERATURE SENSOR)
440
SENDER UNIT OVERHEATING
540
TUBE
540
TUBE
545
LINE
550
GLAND , Replaced By: A0019901267
555
UNION NUT LINE CONNECTION, Replaced By: N000000006243
555
NUT LINE CONNECTION
558
HOSE I.D., 30MM, ORDER BY THE METER
560
LINE COMPRESSED AIR LINE 1795 MM
565
LINE COMPRESSED AIR LINE 1640 MM
570
UNION NUT LINE CONNECTION
570
UNION NUT LINE CONNECTION, Replaced By: N000000006239
575
UNION NUT LINE MOUNTING
580
SEAL CONE LINE CONNECTION
580
GLAND , Replaced By: A0019901967
585
GLAND , Replaced By: A0019901167
585
SEAL CONE LINE MOUNTING
590
CONNECTION FITTING , Replaced By: N003902018002
590
CONNECTION FITTING LINE CONNECTIONS
590
CONNECTOR COMPRESSED AIR LINE
590
CONNECTOR COMPRESSED AIR LINE
592
ELBOW FITTING DELIVERY LINE TO PUMP
592
FITTING LINE CONNECTION
594
FITTING (PARTS KIT),LINE RUPTURE
596
CLAMP , Replaced By: N000000000672
598
CLAMP LINE MOUNTING
598
CLAMP STAY TO BRACKET
598
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
598
CLAMP LINE MOUNTING SA 088202/01
598
CLAMP SAFETY VALVE AT BRACKET
600
SCREW COVER PLATE TO BRACKET
600
CLAMP , Replaced By: N000000000672
600
SCREW LICENSE PLATE TO BRACKET
600
SCREW , Replaced By: N304017008021
600
SCREW , Replaced By: N304017006020
600
SCREW , Replaced By: N304017005011
602
NUT , Replaced By: N913004006001
602
NUT , Replaced By: N913004008001
602
NUT PUMP TO BRACKET
602
NUT TWO-WAY VALVE TO BRACKET
604
GROMMET LINE MOUNTING
606
LINE FROM DELIVERY LINE TO CONNECTOR II
608
LINE FROM CONNECTOR II TO CONNECTOR III
610
LINE FROM CONNECTOR XVII TO CONNECTOR XVIII
612
LINE FROM CONNECTOR TO OIL TANK
999
BRACKET
999
BRACKET
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE REAR
999
EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE TO SUPPORT
999
SUPPORT REAR EXHAUST MUFFLER
999
CONSOLE EXHAUST MUFFLER
999
CAP FUEL PUMP
999
CLAMPING RING
999
CONNECTOR HEATER PLUG
999
NOZZLE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
