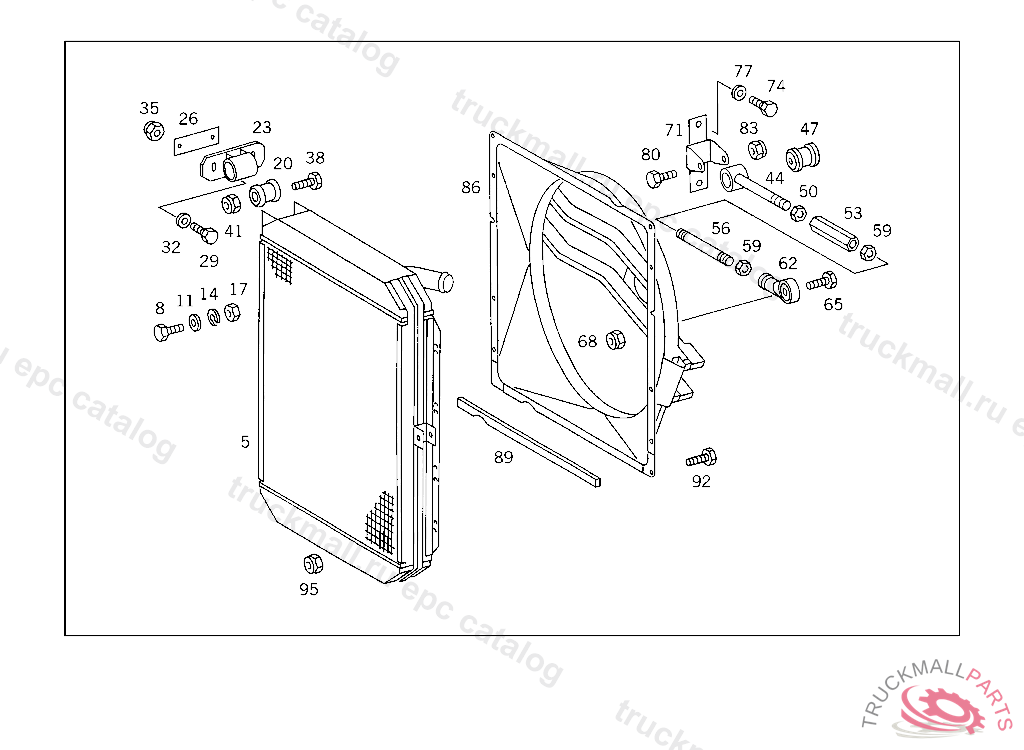

Поз.
Артикул
Описание
5
RADIATOR WATER
5
RADIATOR , Replaced By: A3575012701
5
RADIATOR , Replaced By: A3575012701
8
SCREW , Replaced By: N304017008016
8
SCREW PIPE CLAMP
8
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
11
WASHER BRACKET TO CROSS MEMBER
14
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
NUT , Replaced By: N304032008006
20
BUFFER BEARING BRACKET TO BRACKET
23
STAY SIDE MEMBER
23
BEARING BRACKET. STAY RIGHT TOP
23
STAY RADIATOR
29
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
29
SCREW BRACKET TO SIDE MEMBER
29
SCREW , Replaced By: N304017010002
32
WASHER BEARING BRACKET TO SIDE MEMBER
35
NUT , Replaced By: N910113010000
35
NUT STRAP TO BRACKET
38
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
41
NUT SUPPORT TO SIDE MEMBER
44
RADIATOR STRUT
47
BUFFER BEARING BRACKET TO BRACKET
50
NUT L.H. THREAD
53
TURNBUCKLE ,K 131522
56
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLY
59
NUT BRACKET TO FRAME
62
ROD END RADIATOR BASE FRAME
65
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
68
NUT SUPPORT TO SIDE MEMBER
71
STAY (BEARING BRACKET)
74
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
77
WASHER BEARING BRACKET TO SIDE MEMBER
80
SCREW CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET
83
NUT , Replaced By: N910113010000
83
NUT STRAP TO BRACKET
86
SUPPORT FAN SHROUD
92
SCREW CLAMP TO BRACKET AND TO PIPE
95
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
VALVE CONTROL VALVE, NOT USED
999
SEALING TAPE. ADHESIVE TAPE AIR INTAKE PIPE TO BRACKET
