Mercedes
›
BUS
›
O350 TOURISMO-SHD O 403-SHD EURO2
›
613.485
›
89 VEHICLE ACCESSORIES
›

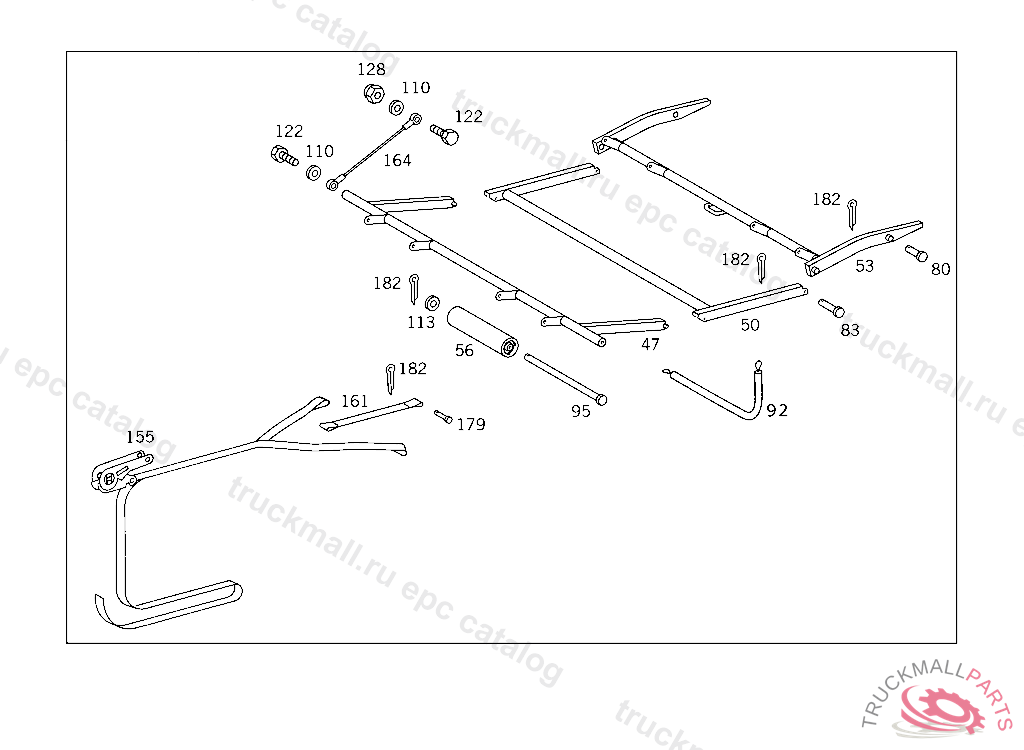

210 SPARE WHEEL CARRIER IL. 3
Mercedes A6138901045 - ZB TRAEGER
O350 TOURISMO-SHD O 403-SHD EURO2 613.485
89 VEHICLE ACCESSORIES - 210 SPARE WHEEL CARRIER IL. 3
Поз.
Артикул
Описание
47
A6138900945
SIDE MEMBER
50
A6138901145
SIDE MEMBER
53
A6138901045
SIDE MEMBER
56
A6138900138
ROLLER
80
A6138980815
PIN
83
A6138980715
PIN
92
HXB3733100107
CABLE
95
A6138980915
PIN ROLLER TO BRAKE SHOE
110
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
110
N000125008417
WASHER TRAILER PLUG SOCKET TO BRACKET
113
N000125010517
WASHER GROUND CABLE
113
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
113
N000000003386
WASHER P.T.O. TO TRANSMISSION
122
N304017008021
SCREW PIPE CLAMP
128
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
155
A6138900071
STRAP ,227290
155
A6138900671
STRAP
155
A6138900471
STRAP , Replaced By: A6138900671
161
A6138980371
STRAP
164
A6138900370
RETAINING ROPE
179
A6139910307
PIN
182
N000094002065
COTTER PIN ,227290
182
N000094002069
COTTER PIN PULL ROD
182
HXB3739900198
COTTER PIN , Replaced By: N000094003226
182
N000094002501
COTTER PIN BRACKET TO TELESCOPIC TUBE,K 142858
