Поз.
Артикул
Описание

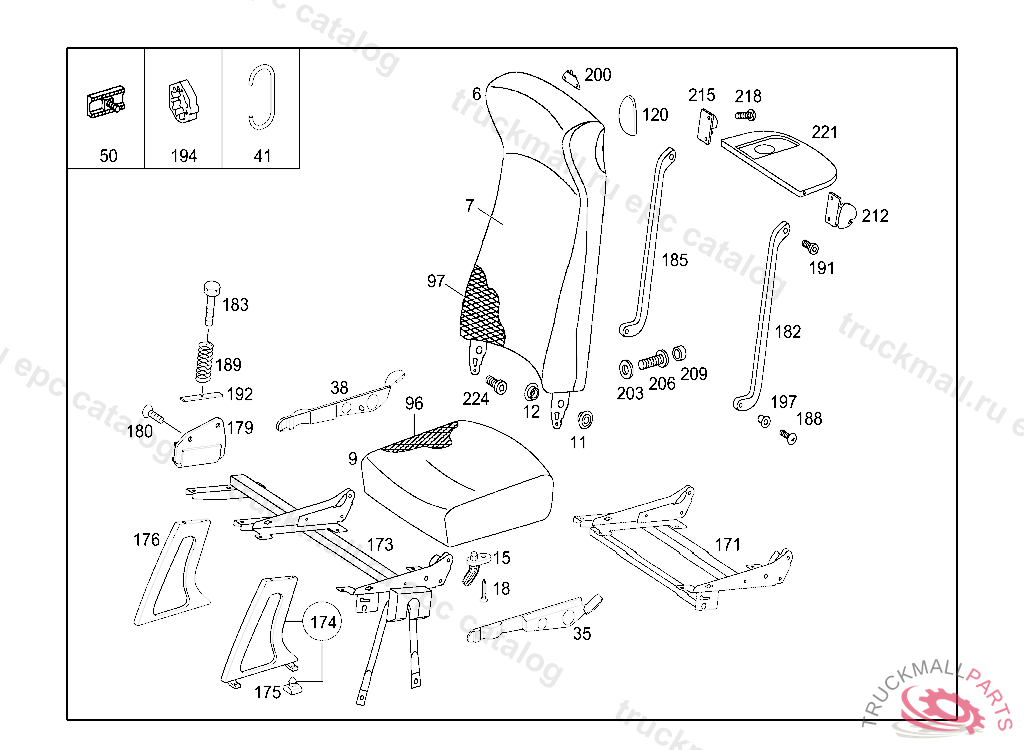

6
BACKREST NARROW, RIGHT, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
6
BACKREST NARROW, LEFT, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
6
BACKREST RIGHT 440 MM, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
6
BACKREST LEFT 440 MM, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
9
SEAT CUSHION NARROW 480X410X154, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
9
SEAT CUSHION SHORT 450X450X154, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
9
SEAT CUSHION SHORT (NARROW VERSION) 450X410X154, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
9
SEAT CUSHION HIGH CHAIR, LOW PADDING 480X450X146, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
9
SEAT CUSHION STANDARD 480X450X154, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
9
SEAT CUSHION SHORT,HIGH CHAIR 450X450X146, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
11
BUSHING OUTSIDE
12
BUSHING INSIDE
15
BRACKET
18
COUNTERSUNK WOOD SCREW4,1X16MM
35
EDGE GUARD SECTION LEFT
38
EDGE GUARD SECTION RIGHT
41
CLIP
50
SLIDE
96
COVER AMBIENTE CUSHION VERSION-SETRA ONLY
96
COVER SOFTLINE CUSHION VERSION
96
COVER SETRA LEATHER AMBIENTE CUSHION
96
COVER SEAT CUSHION, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
96
COVER NIMBUS CUSHION VERSION-SETRA ONLY
96
COVER LEATHER LUXLINE CUSHION
96
COVER LUXLINE CUSHION VERSION
96
COVER SETRA CUSHION WITHOUT SIDE BASE
96
COVER CUSHION WITH SEAT BASE-SETRA ONLY
97
COVER BACKREST, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
97
COVER BACKREST WITH HEAD SECTION MADE FROM LEATHER, STATE COLOR WHEN ORDERING DETERMINE COVER FABRIC VIA VEDOC "NFC 5117" STATE IDENT NO. WHEN ORDERING
120
COVERING RIGHT, FOAM
120
COVERING LEFT, FOAM
171
SEAT FRAMEWORK ADJUSTABLE
171
SEAT FRAMEWORK LEFT
171
SEAT FRAMEWORK LEFT
171
SEAT FRAMEWORK MECHANICAL SEAT ADJUSTER,RIGHT
171
SEAT FRAMEWORK RIGHT
171
SEAT FRAME RIGHT
171
SEAT FRAMEWORK RIGHT
171
SEAT FRAMEWORK MECHANICAL SEAT ADJUSTER,LEFT
173
SEAT FRAME LEFT
173
SEAT FRAME RIGHT
173
SEAT FRAME RIGHT,ABOVE TOILET
173
SEAT FRAME LEFT
174
SEAT BASE FORE-REAR COMPARTMENT RECHTS
174
SEAT BASE FORE-REAR COMPARTMENT LINKS
174
SEAT BASE , Replaced By: A6139500917
174
SEAT BASE , Replaced By: A6139501017
175
RUBBER BUFFER , Replaced By: A1249870740
176
SEAT BASE RIGHT
176
SEAT BASE LEFT
176
SEAT BASE LEFT
176
SEAT BASE ABOVE ENGINE COMPARTMENT, LEFT
179
SUPPORT
180
SCREW W HEXAGON SOCKETM 8 X 16
182
COUNTER FRAMEWORK LEFT
183
SCREWM 8 X 33
183
TAPPING SCREW. SHEET METAL SCREW4.8X16
185
COUNTER FRAMEWORK RIGHT
188
SCREW
189
SPRING
191
SCREW ASHTRAY MOUNTING
192
PLATE
194
ADAPTER
194
ADAPTER
194
ADAPTER
197
BUSHING
200
BRACKET
200
BRACKET FOLDING TABLE
203
WASHER BRACKET TO SUPPORT
206
SCREW, SPECIAL SHAPE3,5X13MM
209
LOCKING CAP
212
CONSOLE LEFT
212
CONSOLE LEFT, Replaced By: A6298161233
215
CONSOLE RIGHT, Replaced By: A6298161333
215
CONSOLE RIGHT
218
TAPPING SCREW SIDE REFLECTORS,K 057592
221
FOLDING TAPLE LESS CUPHOLDER
221
FOLDING TABLE WIDE(440 MM),WITH HOLE
221
FOLDING TABLE WIDE(440 MM),WITH CUP HOLDER
221
FOLDING TABLE WITH CUPHOLDER, Replaced By: A6298104166
221
FOLDING TABLE WITH HOLE, Replaced By: A6298104066
224
SCREWM8X16
