Mercedes A3568312614 - Halter

O350 TOURISMO-SHD O 403-SHD EURO2 613.485

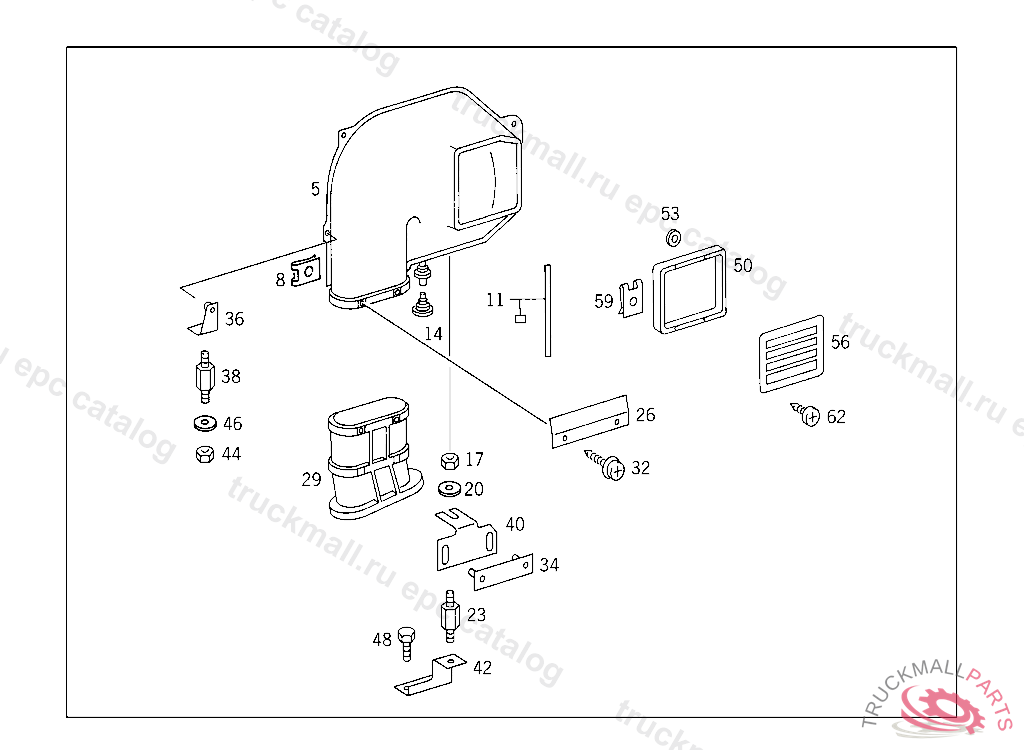

83 HEATING AND VENTILATION - 450 ENGINE AIR INTAKE IL. 1

Поз.
Артикул
Описание
5
A3568305046
AIR DUCT ,221707
5
A3568305346
AIR DUCT ,221708
8
A0029941145
LOCK FRESH AIR,INSTRUMENT PANEL,CENTER
11
A0019898298
SEALING STRIP STEERING COLUMN COVERING 20 X 5 MM, TO BE ADAPTED DURING ASSEMBLY
14
A1269971781
GROMMET
17
N304032006000
NUT
20
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
23
A1169880311
BUFFER
26
A3568310636
BAFFLE
29
A3568314245
DUCT AIR INTAKE
32
N914127004302
SHEET METAL SCREW , Replaced By: N000000000522
32
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
34
A3568303214
BRACKET
36
A3568303314
BRACKET
38
A1169880311
BUFFER
40
A3568312414
BRACKET
42
A3568312614
BRACKET
44
N304032006000
NUT
46
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
48
N304017006000
SCREW FROM THERMOSTAT TO RADIATOR
50
A3568311042
FRAME ,221707
53
N000125004319
WASHER BRACKET TO SUPPORT
56
A3568309613
COVERING ,221707
56
A3568302052
COVERING ,221708
59
A0009947345
LOCK , Replaced By: A0029948145
62
N914127004221
SHEET METAL SCREW AIR DUCT TO BODY 4,8X25
62
N914127004203
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
