Mercedes N000931012136 - Болт

O350 TOURISMO-SHD O 403-SHD EURO2 613.485

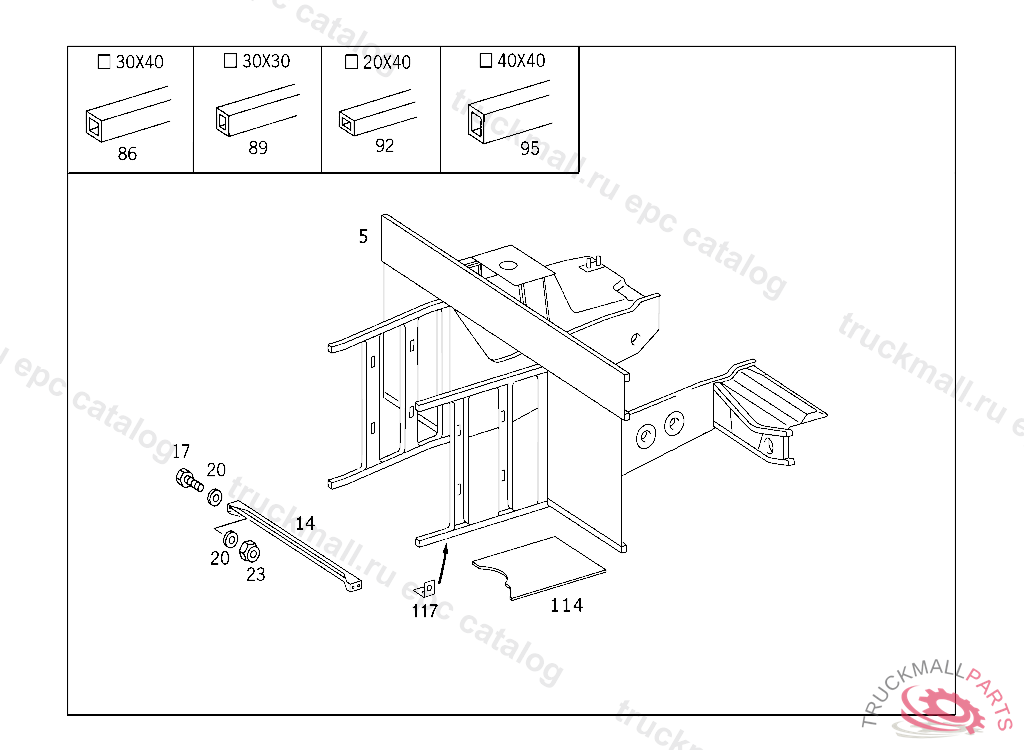

61 SUBSTRUCTURE - 210 SUBSTRUCTURE FRAMEWORK,REAR IL. 1

Поз.
Артикул
Описание
5
A6136102203
SUBSTRUCTURE BEHIND REAR AXLE SHD
14
A3566106814
CROSS MEMBER BEHIND REAR AXLE,CENTRAL
17
N000931012136
SCREW COVER TO TRANSMISSION CASE M 12X85
20
N000125013008
WASHER
23
N913001012002
NUT CROSS MEMBER TO SUBSTRUCTURE
86
HXB3736320720
SIDE PANEL GIRDER , TO BE ADAPTED DURING ASSEMBLY XB373 632 07 20 RECTANGULAR TUBE 40 X 30 X 2,0 X 1115 MM
89
HXB3736114620
SIDE MEMBER BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 611 46 20 RECTANGULAR TUBE 30 X 30 X 2,0 X878 MM
92
HXB3736328215
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 632 82 15 RECTANGULAR TUBE 40 X 20 X 2,0 X 1715 MM
95
HXB3736126118
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 612 61 18 RECTANGULAR TUBE 40 X 40 X 2,0 X 2386 MM
117
A6136101700
BRACKET
