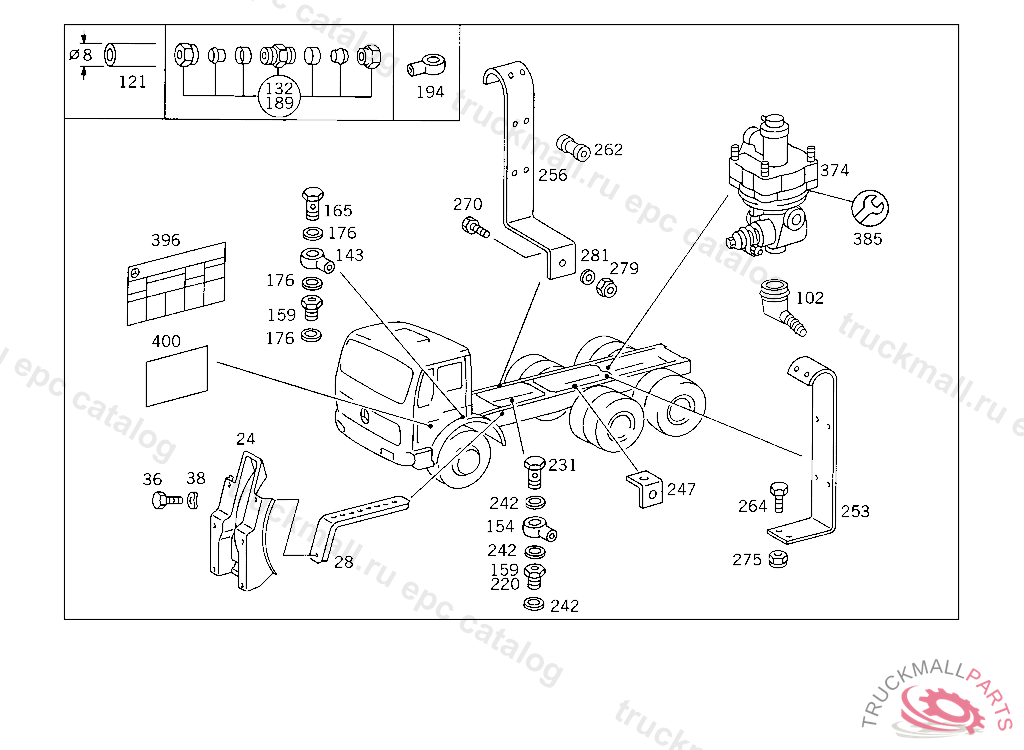

Поз.
Артикул
Описание
24
BRACKET ,K 067951
28
BRACKET COMPRESSED AIR LINE MOUNTING,K 067951
36
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
36
SCREW , Replaced By: N304017008016
38
SPRING WASHER , Replaced By: N000137008212
38
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
102
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
102
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
102
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
102
CONNECTOR 75 DEGREES
121
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
121
PLASTIC PIPE AERATION, ORDER BY THE METER
132
FITTING (PARTS KIT),LINE RUPTURE
132
FITTING , Replaced By: A0029905971
143
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
154
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
159
FITTING BREATHER LINE TO TRANSFER CASE
165
HOLLOW SCREW LINE CONNECTION
176
SEAL RING PNEUMATIC VALVE
176
SEAL RING , Replaced By: N007603010110
189
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
194
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
220
FITTING BREATHER LINE TO TRANSFER CASE
231
HOLLOW SCREW LINE CONNECTION
242
SEAL RING PNEUMATIC VALVE
242
SEAL RING , Replaced By: N007603010110
247
ANGLE LINE MOUNTING
253
BRACKET BREATHER LINE
256
BRACKET BREATHER LINE
262
GROMMET AT SIDE MEMBER,5 314333
264
SCREW PIPE CLAMP
264
SCREW , Replaced By: N304017008021
270
SCREW , Replaced By: N308676014020
270
SCREW , Replaced By: N308676012026
270
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
270
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
275
NUT , Replaced By: N913004008001
275
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
279
NUT , Replaced By: N910113014001
279
NUT SUPPORT TO SIDE MEMBER
279
NUT BRACKET TO SIDE MEMBER
281
WASHER
374
BRAKE PRESSURE REGULATOR AUTOMATIC LOAD-DEPENDING BRAKE
374
BRAKE PRESSURE REGULATORWABCO,5 104921K 067950
385
REPAIR KIT BRAKE POWER REGULATOR WABCO
396
GUIDE SIGN LOAD-DEPENDING BRAKE,5 200703
396
GUIDE SIGN LOAD-DEPENDING BRAKE,5 200703
396
GUIDE SIGN LOAD-DEPENDING BRAKE,5 200703
400
ADHESIVE FOIL GUIDE SIGN
999
BRACKET COMPRESSED AIR LINE TO VALVE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
SEAL RING BLEEDING 19X4 MM
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,4 885324 IN CASE OF STEEL AXLE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SEAL RING BREATHER VALVE
999
BRAKE VALVE (TRAILER CONTROL VALVE) GRAU, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
999
BRAKE VALVE (TRAILER CONTROL VALVE) KNORR, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
999
REPAIR KITGRAU
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH
999
REPAIR KITTO 003 431 02 05,KNORR,I/87610
999
VALVE (RELAY VALVE) WABCO
999
BRAKE LINE COUPLING SUPPLY "KNORR"
