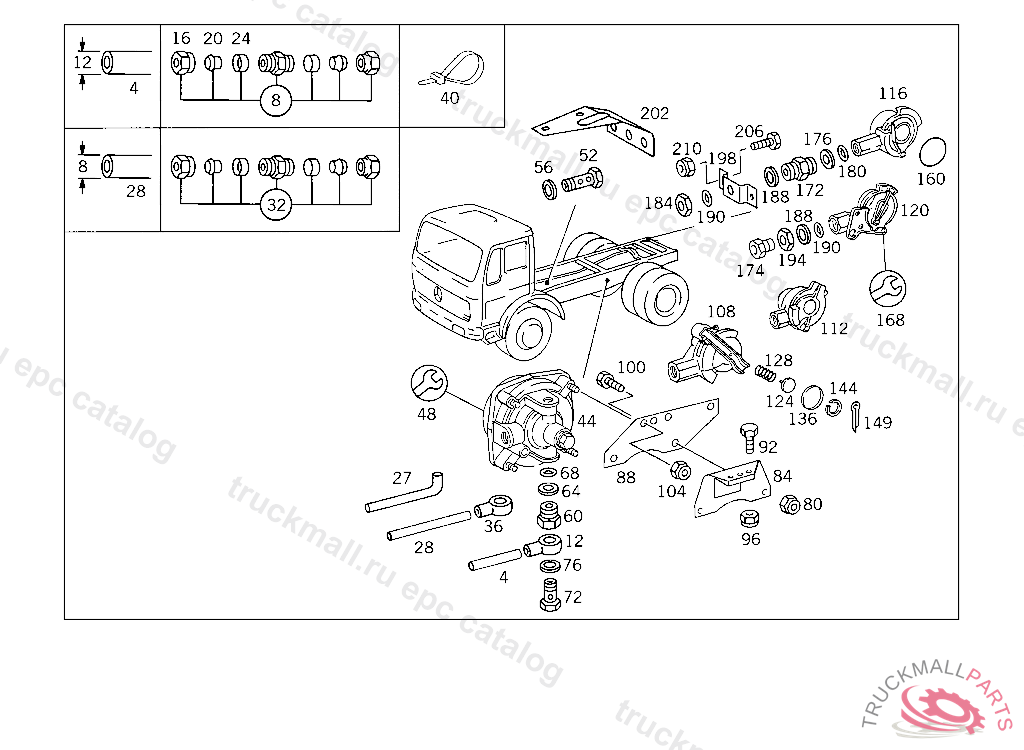

Поз.
Артикул
Описание
4
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
4
HOSE , Replaced By: A0009872827
8
FITTING , Replaced By: A0029906171
8
FITTING (PARTS KIT),LINE RUPTURE
12
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
12
BANJO UNION , Replaced By: N915052009009
16
UNION NUT LINE CONNECTION, Replaced By: N000000006239
16
UNION NUT LINE CONNECTION
20
GLAND , Replaced By: A0019901967
20
SEAL CONE LINE CONNECTION
24
SLEEVE LINE CONNECTION
27
HOSE FROM TRAILER CONTROL VALVE TO BRAKE LINE COUPLING,5 255392
28
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
32
FITTING (PARTS KIT),LINE RUPTURE
32
FITTING , Replaced By: A0029905971
36
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
40
LOOM TIE LINE MOUNTING 280 MM
44
BRAKE VALVE (TRAILER CONTROL VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
44
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
48
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 46 05,BOSCH
48
REPAIR KIT , Replaced By: A0014306160
48
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 52 05, WABCO
52
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
56
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
60
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
64
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
64
THRUST RING CHECK VALVE TO AIR RESERVOIR
68
O-RING CHECK VALVE TO AIR RESERVOIR
72
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
76
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
80
NUT , Replaced By: N910113010000
80
NUT STRAP TO BRACKET
84
BRACKET TRAILER CONTROL VALVE TO BRACKET
84
BRACKET TRAILER CONTROL VALVE,5 298636
88
BRACKET TRAILER CONTROL VALVE,5 298636
92
SCREW SUPPORT TO FENDER
92
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
92
SCREW , Replaced By: N304017008018
92
SCREW , Replaced By: N304017008027
96
NUT , Replaced By: N913004008001
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
100
SCREW BRACKET TO SIDE MEMBER
100
SCREW REAR EXHAUST PIPE TO MUFFLER
100
SCREW END PIECE TO EXHAUST PIPE M 10X25
104
NUT STRAP TO BRACKET
104
NUT , Replaced By: N910113010000
108
BRAKE LINE COUPLING , Replaced By: A0004297530
112
BRAKE LINE COUPLING AT REAR CROSS MENBER
116
BRAKE LINE COUPLING AT REAR CROSS MENBER
120
BRAKE LINE COUPLING AT REAR CROSS MENBER
124
VALVE DISCTO 000 429 48 30
128
SPRINGTO 000 429 16 30
136
GASKETTO 000 429 16 30
144
SNAP RINGTO 000 429 16 30
149
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
160
SEAL RINGBOSCH
168
REPAIR KITWABCO
172
FITTING SHUTTLE VALVE
174
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
176
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
176
THRUST RING CHECK VALVE TO AIR RESERVOIR
180
O-RING CHECK VALVE TO AIR RESERVOIR
184
NUT BRACKET TO SIDE MEMBER
188
BRACKET AT BRAKE LINE COUPLING
188
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
188
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 686340, Replaced By: A3184291640
190
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
194
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
198
BRACKET AT BRAKE LINE COUPLING
202
BRACKET AT FRAME
202
BRACKET , Replaced By: A3464290940
206
SCREW PIPE CLAMP
206
SCREW , Replaced By: N304017008021
206
SCREW BRACKET TO SIDE MEMBER
210
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
210
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
210
NUT BRACKET TO SIDE MEMBER
210
NUT , Replaced By: N913004008001
210
NUT , Replaced By: N910113014001
999
VALVE CONEBOSCH
999
COVERWABCO
999
REPAIR KITKNORR
999
COVERTO 000 429 16 30,BOSCH
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
