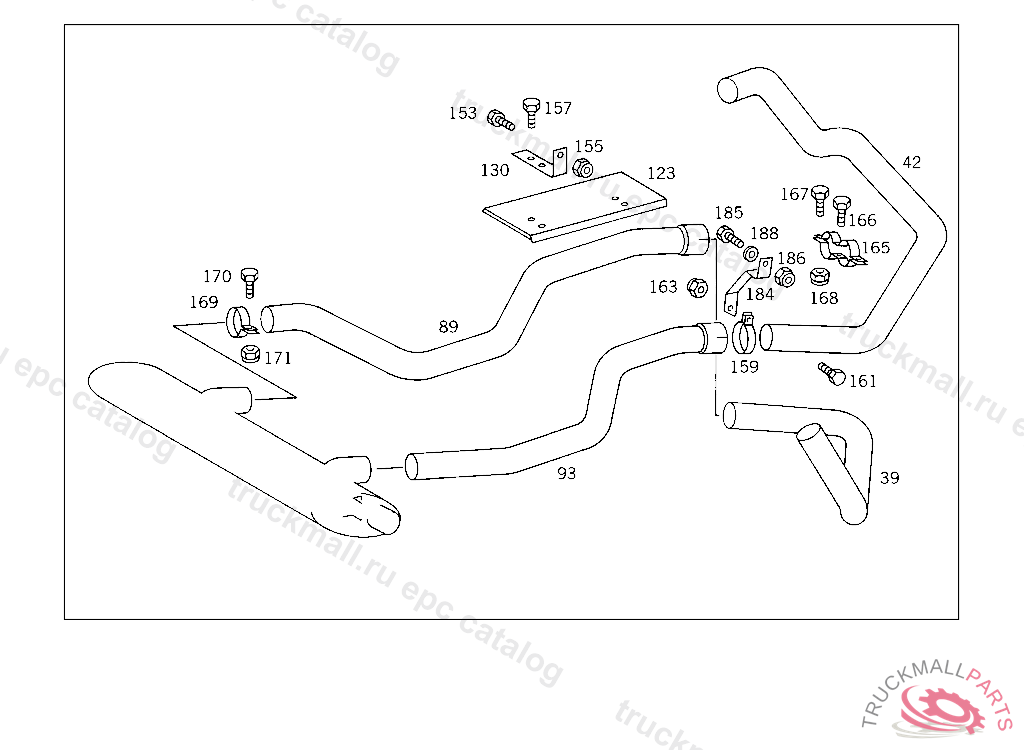

Поз.
Артикул
Описание
39
EXHAUST PIPE FRONT LEFT
42
EXHAUST PIPE FRONT RIGHT
89
CONNECTOR FRONT
93
CONNECTOR FRONT
123
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
130
BRACKET PROTECTIVE PLATE
153
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
153
SCREW , Replaced By: N304017008027
155
NUT , Replaced By: N913004008001
155
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
157
SCREW , Replaced By: N304017008034
159
CLAMP INTERMEDIATE PIECE TO EXHAUST PIPE BRACKET
161
SCREW END PIECE TO EXHAUST PIPE M 10X25
163
NUT STRAP TO BRACKET
163
NUT , Replaced By: N910113010000
165
CLAMP INTERMEDIATE PIECE
166
SCREW STRAP TO BRACKET
167
SCREW , Replaced By: N304017008021
167
SCREW PIPE CLAMP
168
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
168
NUT , Replaced By: N913004008001
169
CLAMP INTERMEDIATE PIECE
170
SCREW END PIECE TO EXHAUST PIPE M 10X25
171
NUT STRAP TO BRACKET
171
NUT , Replaced By: N910113010000
184
BRACKET AT SIDE MEMBER
185
SCREW BRACKET TO SIDE MEMBER
185
SCREW , Replaced By: N304017010002
186
NUT , Replaced By: N910113010000
186
NUT STRAP TO BRACKET
188
WASHER RADIATOR TO RUBBER MOUNTING
188
WASHER , Replaced By: N000125010532
999
INSULATING WASHER. INSULATION , Replaced By: A3094900037
999
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
999
WASHER , Replaced By: N000125010532
