Поз.
Артикул
Описание

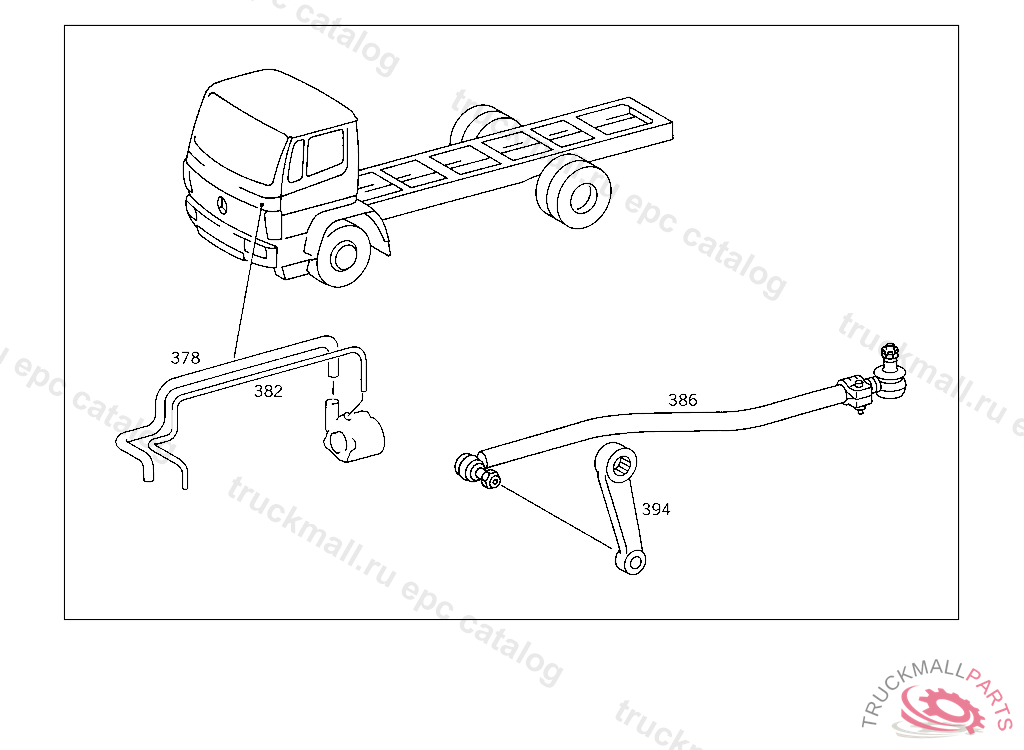

378
PIPE , Replaced By: A3952571066
378
PIPE SUCTION LINE 1360 MM
382
TUBE FROM HIGH PRESSURE HOSE TO STEERING
386
DRAG LINKLEMFOERDER
386
DRAG LINKEHRENREICH
386
DRAG LINKEHRENREICH
386
DRAG LINKLEMFOERDER
386
DRAG LINK , Replaced By: A6154601105
386
DRAG LINK , Replaced By: A6154601005
394
PITMAN ARM AT STEERING GEAR
999
SCREW , Replaced By: A4609900601
999
BRACKET , Replaced By: A6574760036
999
BRACKET , Replaced By: A6205244040
999
BRACKET , Replaced By: A4255530840
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3875016120
999
BRACKET AT TRANSMISSION
999
BRACKET DELIVERY LINE TO BRACKET
999
HOSE RETURN, FROM STEERING TO OIL TANK
999
LINE , NOT USED
999
BRACKET , Replaced By: A3524290740
999
DRAG LINKLEMFOERDER,5 158233K 218235
999
DRAG LINKLEMFOERDER,5 158233K 218235
999
DRAG LINKLEMFOERDER
999
DRAG LINKLEMFOERDER
999
LINE , Replaced By: A0004291601
999
LINE FROM PUMP TO HIGH PRESSURE HOSE, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
999
LINE RETURN, FROM STEERING TO OIL TANK,5 593344
999
LINE , NOT USED
999
BRACKET , Replaced By: A3604293140
999
HOSE , Replaced By: A3859971582
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
BRACKET , Replaced By: A3604292940
999
HOSE , Replaced By: A3859971582
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
NUT DRAG LINK END M 24X1.5
999
INDICATOR , Replaced By: A0105429317
999
SPACER TUBE
999
WASHER
