Поз.
Артикул
Описание

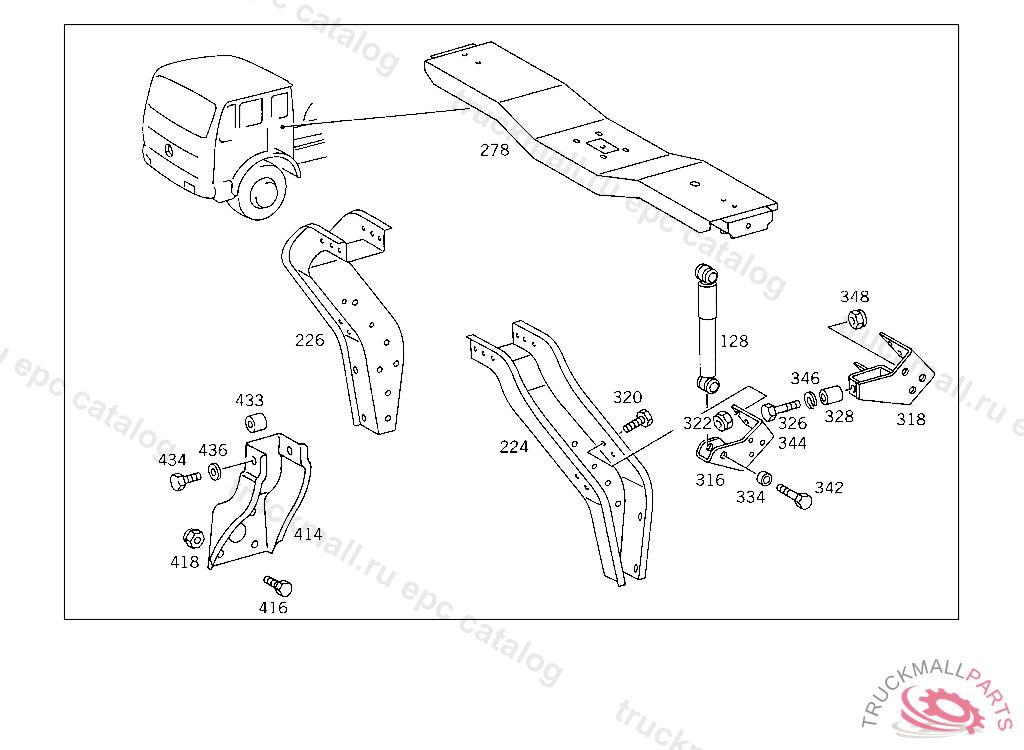

128
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
128
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
128
SHOCK ABSORBER , Replaced By: A0008911805
224
CONSOLE CAB SUSPENSION,REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
226
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
278
RAIL , Replaced By: A3878901222
278
RAIL , Replaced By: A6558900422
278
RAIL CAB SUSPENSION,REAR
278
RAIL CAB SUSPENSION,REAR
316
MOUNTING RIGHT VIBRATION ABSORBER
316
MOUNTING , Replaced By: A3878918620, +001N000439018210
316
MOUNTING , Replaced By: A3878918520, +001N000439018210
316
MOUNTING LEFT VIBRATION ABSORBER
318
MOUNTING RIGHT VIBRATION ABSORBER
318
MOUNTING LEFT VIBRATION ABSORBER
320
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
320
SCREW , Replaced By: N308676012012
322
NUT SUPPORT TO SIDE MEMBER
326
SCREW VIBRATION ABSORBER TO CONSOLE
328
SPACER TUBE SHOCK ABSORBER TO RAIL
334
SPACER TUBE SHOCK ABSORBER TO RAIL
334
SPACER TUBE MOUNTING TO CONSOLE
342
SCREW , Replaced By: N308676018010
342
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
344
SCREW VIBRATION ABSORBER TO CONNECTOR
346
LOCK WASHER BELL HOUSING TO TRANSMISSION
348
NUT VIBRATION ABSORBER TO CONSOLE
348
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
348
NUT , Replaced By: N910113018004
414
BRACKET , Replaced By: A6243230340
414
BRACKET RIGHT SHOCK ABSORBER
414
BRACKET ,4 844252, Replaced By: A6203230040, +002A3939900240, +001N000960016065
416
SCREW , Replaced By: N308676014020
416
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
416
SCREW BRACKET TO SIDE MEMBER,5 597425
418
NUT BRACKET TO SIDE MEMBER
418
NUT , Replaced By: N910113014001
418
NUT PARTICLE FILTER M14
433
SPACER TUBE SHOCK ABSORBER TO BRACKET
434
SCREW BRACKET TO AIR INTAKE SCOOP
434
SCREW SHOCK ABSORBER TO CONSOLE,TOP
436
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
999
NUT , Replaced By: N913004008001
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
SPRING WASHER LEVER MOUNTING
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW , Replaced By: N304017008034
999
COTTER PIN LEVER TO ROD
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
999
WASHER , Replaced By: A6558910210
999
SHIM SHOCK ABSORBER
999
PIN , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
MOUNTING SPRING AND STABILIZER,RIGHT
999
MOUNTING SPRING AND STABILIZER,LEFT
999
STABILIZER , Replaced By: A6528900104
999
MOUNTING ,5 178428, Replaced By: A6218900503, +001A6203100177
999
MOUNTING ,5 178428, Replaced By: A6218900403, +001A6203100177
999
CONSOLE CAB SUSPENSION,FRONT RIGHT
999
CONSOLE CAB SUSPENSION,FRONT LEFT
999
BOW VIBRATION ABSORBER TO BEARING AND TO CAB,5 500828
999
BEARING BRACKET , Replaced By: A6205531638
999
BEARING BRACKET , Replaced By: A6205531738
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
REPAIR KIT CAB FRONT SUSPENSION STABILIZER
999
REPAIR KIT CAB FRONT SUSPENSION STABILIZER,5 178428
999
MOUNTING SHOCK ABSORBER, NOT USED
999
CONSOLE CAB SUSPENSION, NOT USED
999
MOUNTING CAB, RIGHT
999
MOUNTING CAB,LEFT
999
MOUNTING , Replaced By: A6558910420
999
MOUNTING , Replaced By: A6558910320
999
MOUNTING CAB, RIGHT
999
MOUNTING LEFT SIDE MEMBER
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
WASHER STABILIZER TO BEARING
999
SPRING (LEAF SPRING),CAB SUSPENSION
999
BRACKET BUFFER
999
SPRING CAB SUSPENSION,FRONT
999
SHIM MOUNTING TO CONSOLE
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
999
SHACKLE
999
SHACKLE
999
LEVER
999
LEVER , NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
LEVER , NO LONGER AVAILABLE,ORDER INDIVIDUAL PARTS
999
LEVER CAB SUSPENSION
999
RAIL , Replaced By: A6558900122
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
GUIDE SIGN DANGER AREA IN FRONT OF TILTED CAB
999
BRACKET RIGHT FENDER
999
BRACKET LEFT FENDER
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
WASHER BEARING BRACKET
999
REPAIR KIT CAB SUSPENSION,FRONT
999
GUMMED LABEL CAB LOCKING MECHANISM
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
BUSHING SPRING
999
BUFFER (HOLLOW RUBBER SPRING),CAB
999
FLANGE HOLLOW RUBBER SPRING
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
MOUNTING (RUBBER BUFFER)
999
WASHER BRACKET TO SIDE MEMBER,5 703114
999
PIN PULL TO FASTENER
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
PUMP (HAND PUMP) POWER PACKER,4 733732
999
PUMP , Replaced By: A0005536501
