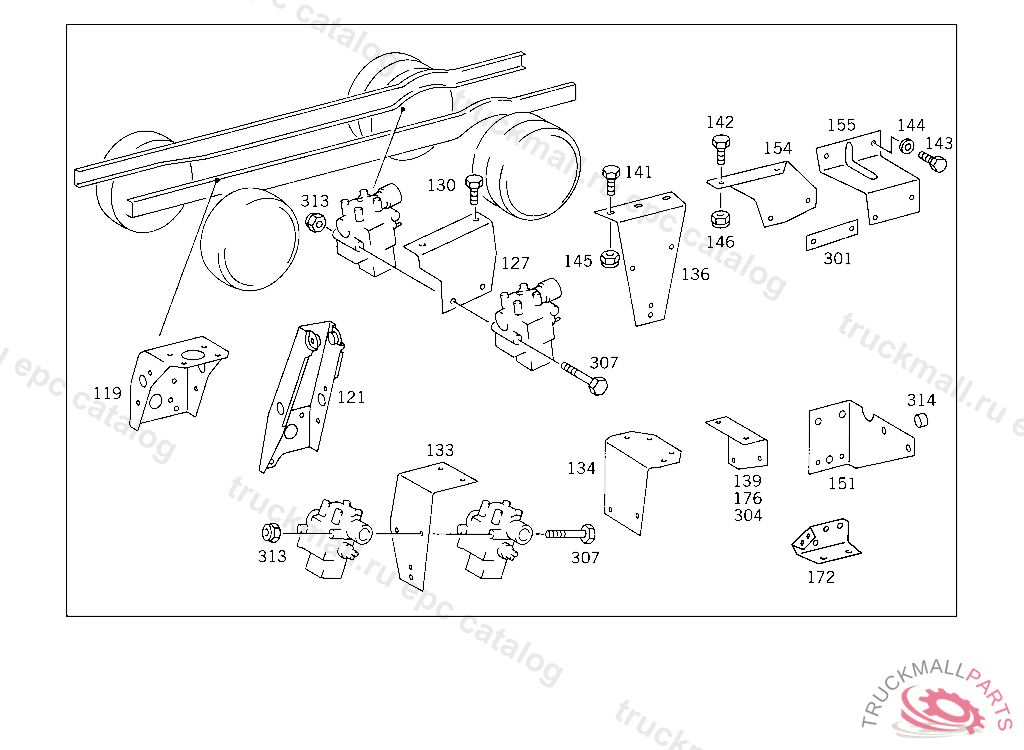

Поз.
Артикул
Описание
119
CONSOLE CAB CONSOLE,LEFT
119
CONSOLE CAB CONSOLE,RIGHT
121
CONSOLE RIGHT SHOCK ABSORBER,5 523396
121
CONSOLE RIGHT SHOCK ABSORBER
121
CONSOLE LEFT SHOCK ABSORBER
121
CONSOLE LEFT SHOCK ABSORBER,5 523396
127
BRACKET DIAPHRAGM CYLINDER,5 410938
130
SCREW BRACKET TO CAB CONSOLE,K 035197
133
BRACKET DIAPHRAGM CYLINDER,5 434013
134
BRACKET CROSS MEMBER
136
BRACKET PRESSURE CONTROL VALVE
139
BRACKET CROSS MEMBER, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
141
SCREW , Replaced By: N304017008034
141
SCREW BRACKET TO CROSS CONNECTION STRUT
142
SCREW END PIECE TO EXHAUST PIPE M 10X25
143
SCREW BRACKET TO SIDE MEMBER
144
WASHER , Replaced By: N000125010532
144
WASHER RADIATOR TO RUBBER MOUNTING
145
NUT , Replaced By: N913004008001
145
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
146
NUT , Replaced By: N910113010000
146
NUT STRAP TO BRACKET
151
BRACKET DIAPHRAGM CYLINDER
154
BRACKET AT CROSS MEMBER,5 298612
155
BRACKET RIGHT SIDE MEMBER,5 298613
155
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6154300210
172
BRACKET SIDE MEMBER
176
BRACKET CROSS MEMBER, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
301
BRACKET VALVE TO SIDE MEMBER
304
BRACKET CROSS MEMBER, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
304
BRACKET AT TWO-WAY VALVE
307
SCREW FRONT AXLE REGULATING SOLENOID VALVE
307
SCREW , Replaced By: N000933008134
307
SCREW , Replaced By: N304014008007
307
SCREW , Replaced By: N304014008022
307
SCREW REAR AXLE REGULATING SOLENOID VALVE
307
SCREW VALVE TO SIDE MEMBER M 8X150
307
SCREW CONSOLE TO SIDE MEMBER
307
SCREW FRONT AXLE REGULATING SOLENOID VALVE
307
SCREW TWO-WAY VALVE TO FRAME M 8X140
307
SCREW AT SIDE MEMBER,REAR M 8X135
313
NUT , Replaced By: N913004008001
313
NUT SUPPORT TO SIDE MEMBER
313
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
314
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
CROSS FITTING AIR RESERVOIRS I AND II,4 821954 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
ABS ELECTRONICS , Replaced By: A0004461114
999
TEST CONNECTION
999
VALVE PART , Replaced By: A0029971236
999
ADAPTER FITTING , Replaced By: A0004296934
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0069970072
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
FITTING , Replaced By: A0009905070
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET RIGHT SIDE MEMBER
999
BRACKET LEFT SIDE MEMBER
999
PROTECTIVE PLATE FRONT AXLE TWO-WAY VALVE
999
PROTECTIVE PLATE , Replaced By: A6244210120
999
BRACKET SENSOR CABLE
999
BRACKET RELAY VALVE, NOT USED
999
LINE FROM 3/2-WAY VALVE TO DISTRIBUTOR
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
FITTING RELAY VALVE,CONNECTION "20",LEFT
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 186367 IN CASE OF "C" ELECTRONICS WITH ASR, EXCHANGE 006 545 27 32 FOR 013 545 05 32, Replaced By: A0045458432
999
VALVE
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 042987, Replaced By: A0035452832
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
T-FITTING AIR RESERVOIR,CONNECTION: "31"
999
CONTROL UNIT , Replaced By: A0025454932
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
