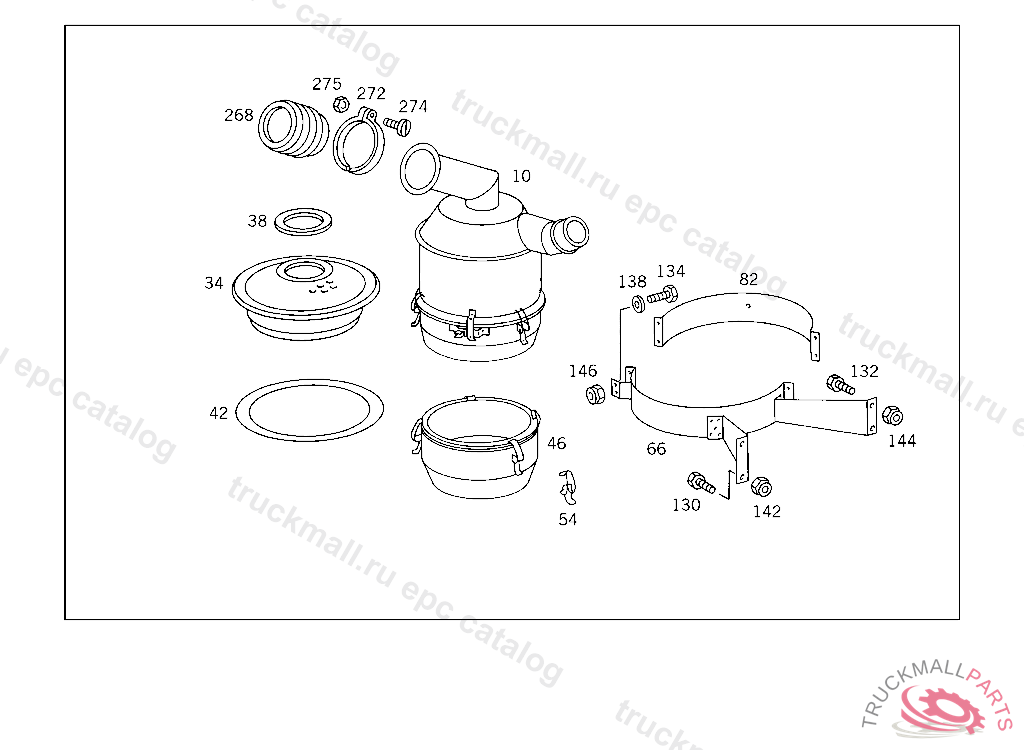

Поз.
Артикул
Описание
10
AIR CLEANER OIL BATH MANN & HUMMEL
10
AIR CLEANER OIL BATH MANN U. HUMMEL
10
AIR CLEANER OIL BATH KNECHT
10
AIR CLEANER OIL BATH KNECHT
10
AIR CLEANER OIL BATH MANN & HUMMEL
10
AIR CLEANER OIL BATH MANN & HUMMEL
34
FILTER ELEMENT
34
FILTER ELEMENT
34
FILTER ELEMENT
34
FILTER ELEMENT
38
GASKET INSIDE
38
GASKET INSIDE
38
GASKET INSIDE
42
GASKET OUTSIDE
42
GASKET OUTSIDE
42
GASKET OUTSIDE
46
FILTER BOWL
46
FILTER BOWL
46
FILTER BOWL
46
FILTER BOWL
54
FASTENER
54
FASTENERKNECHT
66
SUPPORT AIR CLEANER,K 000844
66
SUPPORT AIR CLEANER
66
SUPPORT AIR CLEANER
66
SUPPORT AIR CLEANER
66
SUPPORT AIR CLEANER
66
SUPPORT ,4 371044, Replaced By: A3875203433, +001A3875281321
66
LINE ,4 371044, Replaced By: A3875203333, +001A3875206141
66
SUPPORT ,4 371044, Replaced By: A3875203333, +001A3875281321
66
SUPPORT ,4 371045K 000843, Replaced By: A6565200233, +002N000961016009, +002N913004016004
66
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
66
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
66
SUPPORT ,4 371045K 000843, Replaced By: A6565200333, +002N000961016009, +002N913004016004
66
SUPPORT AIR CLEANER,K 000844
82
STRAP AIR CLEANER TO SUPPORT
82
STRAP AIR CLEANER TO SUPPORT
82
STRAP , Replaced By: A3875281321
130
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT,K 000844
130
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
130
SCREW , Replaced By: N308676014020
132
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
134
SCREW END PIECE TO EXHAUST PIPE M 10X25
134
SCREW REAR EXHAUST PIPE TO MUFFLER
138
WASHER , Replaced By: N000125010532
138
WASHER RADIATOR TO RUBBER MOUNTING
142
NUT COMBINATION CYLINDER TO BEARING BRACKET
142
NUT BRACKET TO SIDE MEMBER
142
NUT , Replaced By: N910113014001
142
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
144
NUT SUPPORT TO SIDE MEMBER
146
NUT STRAP TO BRACKET
146
NUT , Replaced By: N910113010000
268
BOOT AIR INTAKE
272
CLAMP BOOT TO INTAKE PIPE
272
CLAMP BOOT TO INTAKE PIPE
274
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
275
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
WARNING INDICATOR AIR CLEANER
999
AIR CLEANER ,4 256254
999
AIR CLEANER ,4 256254
999
AIR CLEANER
999
AIR CLEANER ,4 256253
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER , Replaced By: A0110942602
999
AIR CLEANER , Replaced By: A0140948802
999
AIR CLEANERMANN & HUMMEL,4 938205
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER
999
AIR CLEANER
999
FILTER BOWL
999
AIR CLEANER
999
RING WARNING INDICATOR
999
SUPPORT , Replaced By: A6565200033
999
SUPPORT , Replaced By: A6565200133
999
STRAP AIR CLEANER
999
CONSOLE FRAME
999
CONSOLE CAB SUSPENSION,REAR RIGHT,5 742148
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
BRACKET AIR CLEANER,REAR
999
BRACKET AIR CLEANER,REAR
999
BRACKET AIR CLEANER,REAR RIGHT
999
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
999
MUFFLER AIR CLEANER
999
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
999
BRACKET AIR CLEANER,FRONT LEFT,K 000844
999
BRACKET AIR CLEANER,FRONT RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
SUPPORT AIR CLEANER
999
SUPPORT AIR CLEANER,4 785295
