Поз.
Артикул
Описание

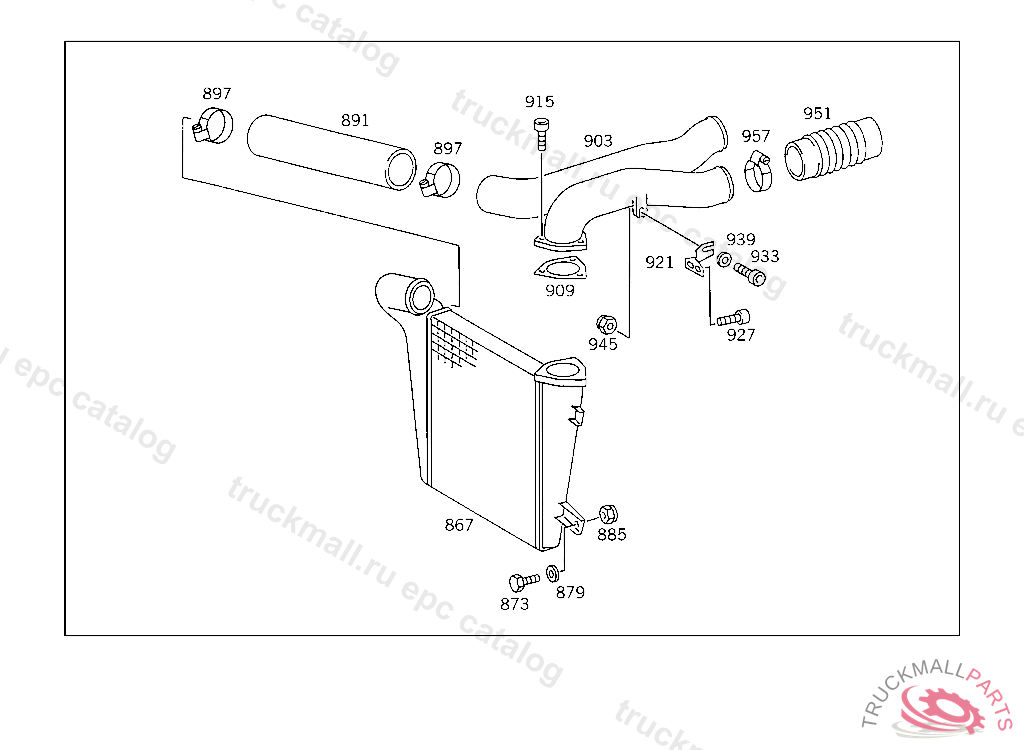

867
RADIATOR (CHARGING AIR INTERCOOLER)
873
SCREW BRACKET TO THROTTLE HOUSING M 8X16
879
WASHER EXHAUST MUFFLER TO STRAP
879
WASHER , Replaced By: N000125008443
885
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
885
NUT , Replaced By: N913004008001
891
HOSE , Replaced By: A0020941882
891
HOSE FROM CHARGING AIR INTERCOOLER TO PIPE ELBOW
897
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
897
CLAMP , Replaced By: A0059972990
897
CLAMP , Replaced By: N000000000675
903
PIPE ELBOW CHARGE AIR INTERCOOLER
909
GASKET PIPE ELBOW TO CHARGING AIR INTERCOOLER
909
GASKET , Replaced By: A6175280380
915
SCREW BRACKET TO FRAME M 8X35
915
SCREW , Replaced By: A0019904204
921
BRACKET PIPE ELBOW
927
SCREW SPEED SENSOR TO REAR AXLE
927
SCREW PIPE ELBOW TO BRACKET M8X12
927
SCREW , Replaced By: N910105008013
933
SCREW PIPE BEND TO BRACKET
939
WASHER BRACKET TO LEFT SIDE MEMBER
939
WASHER , Replaced By: N009021008213
945
NUT , Replaced By: N913004008001
945
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
951
HOSE , Replaced By: A6845010882
951
HOSE FROM ENGINE TO CHARGE AIR INTERCOOLER
951
HOSE , Replaced By: A6845011082
957
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
999
GASKET HEATING PIPE TO ENGINE
999
CLAMP , Replaced By: N000000000667
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
SCREW SUPPORT TO FENDER
999
SCREW , Replaced By: A0099900101
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N000933008337
999
SCREW COVER PLATE TO BRACKET
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER , Replaced By: N000137008204
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP,5 422023
999
BRACKET HOSE TO RADIATOR AND TO WATER PUMP,5 422023
999
BRACKET OIL DIPSTICK TO RADIATOR
999
CLAMP FEED LINE TO THERMOSTAT
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
RADIATOR WATER BEHR
