Поз.
Артикул
Описание

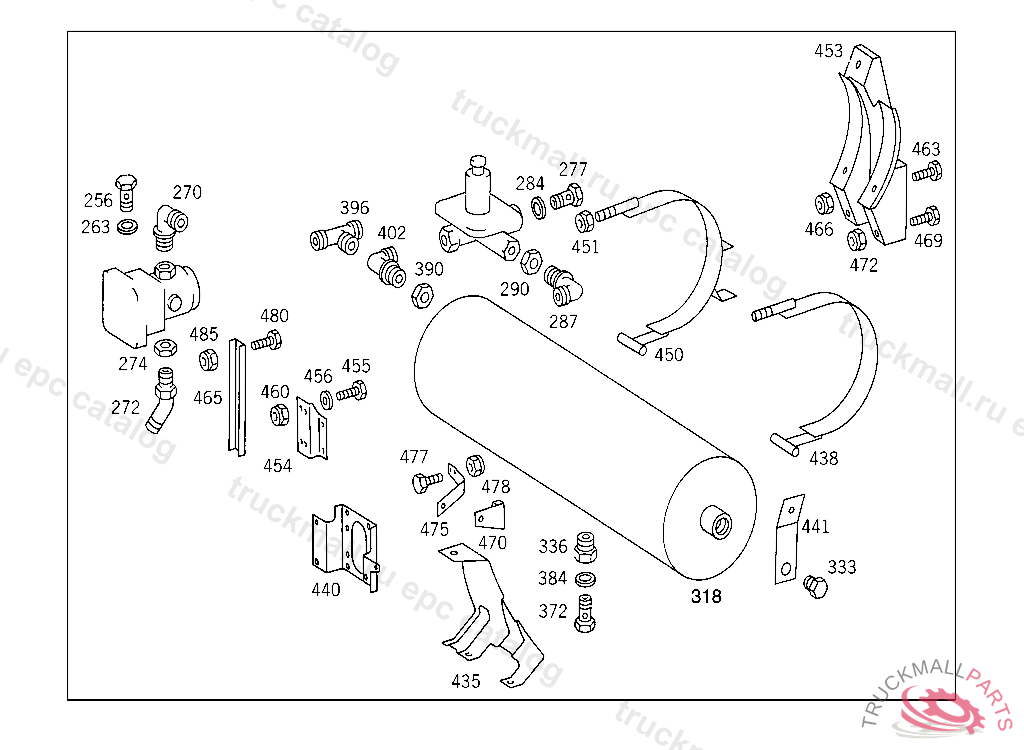

256
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
263
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
270
ELBOW FITTING , Replaced By: A0049906471
270
ELBOW FITTING CHECK VALVE TO RELAY VALVE
272
ELBOW FITTING , Replaced By: A0019901871
272
ELBOW FITTING SHUTTLE VALVE TO BRAKE CYLINDER
274
NUT CHECK VALVE TO AIR RESERVOIR
277
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
284
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
287
ELBOW FITTING , Replaced By: A0004294638
287
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
290
NUT CHECK VALVE TO AIR RESERVOIR
318
RESERVOIR6/20 L
318
RESERVOIR6/20 L
318
RESERVOIR6/20 L
318
RESERVOIR6/20 L
333
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
333
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
336
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
336
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
372
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
372
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
372
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
372
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
384
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
384
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
390
NUT CHECK VALVE TO AIR RESERVOIR
396
T-FITTING AIR RESERVOIR,CONNECTION: "24"
402
ELBOW FITTING , Replaced By: A0004294638
402
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
435
BRACKET AIR RESERVOIR TO SUPPORT,5 339169
438
STRAP PARTICLE FILTER
438
STRAP PARTICLE FILTER
438
STRAP , Replaced By: A6554900942
438
STRAP , Replaced By: A6214900242
438
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
440
BRACKET REAR AIR RESERVOIR, NOT USED
440
BRACKET REAR AIR RESERVOIR, NOT USED
441
BRACKET AT APPARATUS SUPPORT
441
BRACKET AIR RESERVOIR STRAP
441
BRACKET FUEL LINE TO BELL HOUSING
441
BRACKET FUEL LINE TO BELL HOUSING
441
BRACKET AT APPARATUS SUPPORT
441
BRACKET , Replaced By: A6554318840
441
BRACKET AIR RESERVOIR STRAP
441
BRACKET , Replaced By: A6484320340
450
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
450
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
451
NUT STRAP TO BRACKET
451
NUT STRAP TO BRACKET
451
NUT STRAP TO BRACKET
451
NUT , Replaced By: N910113010000
453
BRACKET SPRING-LOADED BRAKE AIR RESERVOIR
453
BRACKET SPRING-LOADED BRAKE AIR RESERVOIR
454
BRACKET STRAP WITH AIR RESERVOIR TO BATTERY SUPPORT
454
BRACKET STRAP WITH AIR RESERVOIR TO BATTERY SUPPORT
455
SCREW BRACKET TO SIDE MEMBER
455
SCREW PIPE CLAMP
455
SCREW CLAMP TO BRACKET AND TO PIPE
455
SCREW PIPE CLAMP
455
SCREW , Replaced By: N304017008021
455
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
455
SCREW BRACKET TO CROSS CONNECTION STRUT
455
SCREW , Replaced By: N304017008034
455
SCREW PIPE CLAMP
455
SCREW , Replaced By: N304017008021
455
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
456
WASHER RADIATOR TO RUBBER MOUNTING
456
WASHER EXHAUST MUFFLER TO STRAP
456
WASHER , Replaced By: N000125008443
456
WASHER RADIATOR TO RUBBER MOUNTING
456
WASHER , Replaced By: N000125010532
460
NUT STRAP TO BRACKET
460
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
460
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
460
NUT , Replaced By: N913004008001
460
NUT STRAP TO BRACKET
460
NUT , Replaced By: N910113010000
463
SCREW PIPE CLAMP
463
SCREW PIPE CLAMP
463
SCREW , Replaced By: N304017008021
465
BRACKET ,5 270877
465
BRACKET ,5 270877
466
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
466
NUT , Replaced By: N913004008001
469
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
470
BRACKET AIR RESERVOIR STRAP,5 3391685 443912
472
NUT STRAP TO BRACKET
472
NUT , Replaced By: N910113010000
475
BRACKET AIR RESERVOIR STRAP,5 380653
475
BRACKET AIR RESERVOIR STRAP,5 380653
475
BRACKET AIR RESERVOIR STRAP,5 380653
477
SCREW PIPE CLAMP
477
SCREW , Replaced By: N304017008021
478
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
478
NUT , Replaced By: N913004008001
480
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
485
NUT STRAP TO BRACKET
485
NUT , Replaced By: N910113010000
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FILTER ELEMENT , Replaced By: A0004293795
999
CONNECTOR 90 DEG. OFFSET
999
AIR CLEANERBOSCH
999
AIR CLEANER , Replaced By: A0004293695
999
REPAIR KIT PRESSURE REGULATOR BOSCH,241
999
ANTI-FREEZE DEVICEWABCO
999
RESERVOIR , Replaced By: A0034321201
999
RESERVOIR ,5 934167, Replaced By: A0034321401
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FILTER , Replaced By: A0004291297
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
RESERVOIR , Replaced By: A0024311602, +001A0004317833
999
VALVE , Replaced By: A0034315006
999
RESERVOIR ,5 934167, Replaced By: A0034320601
999
T-FITTING PRESSURE RELIEF VALVE,CONNECTION: "10"
999
VALVE , Replaced By: A0024319106
999
RESERVOIR20L,246 MM,12.5 BAR
999
RESERVOIR ,5 563826
999
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
999
STRAP AIR RESERVOIR TO BRACKET
999
BRACKET AIR RESERVOIR TO FRAME
999
STRAP FRONT AIR RESERVOIR,RIGHT
999
STRAP AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE
999
BRACKET AIR CLEANER
999
STRAP AIR RESERVOIR TO BRACKET
999
STRAP ANTI-FREEZE DEVICE
999
STRAP AIR RESERVOIR III,5 088362
