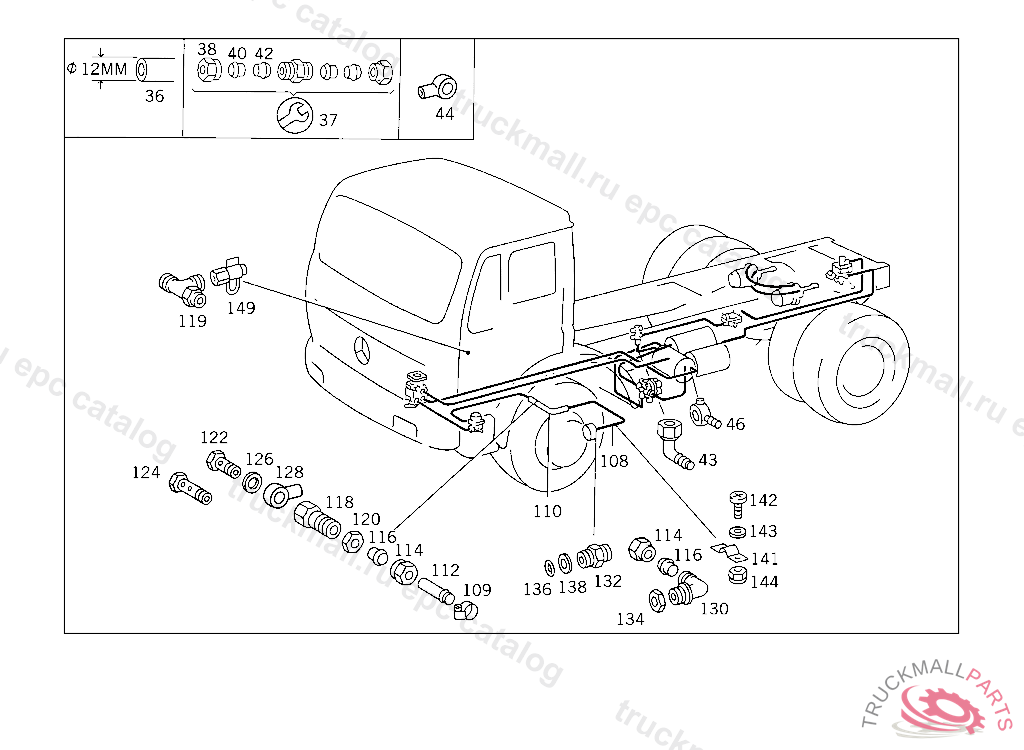

Поз.
Артикул
Описание
36
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
36
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
36
HOSE , Replaced By: A0009872827
37
FITTING (PARTS KIT),LINE RUPTURE
37
FITTING , Replaced By: A0029906171
38
UNION NUT LINE CONNECTION, Replaced By: N000000006239
40
SEAL CONE LINE CONNECTION
40
GLAND , Replaced By: A0019901967
42
SLEEVE LINE CONNECTION
43
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
44
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
44
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
46
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
108
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
108
LINE , Replaced By: A6254293501
108
LINE , Replaced By: A6194290801
109
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
109
CLAMP HOSE TO FITTING AND TO OIL TANK
110
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
112
FITTING DIAPHRAGM CYLINDER,CONNECTION:
114
UNION NUT LINE CONNECTION, Replaced By: N000000006239
116
SEAL CONE LINE CONNECTION
116
GLAND , Replaced By: A0019901967
118
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
118
ADAPTER FITTING , Replaced By: A0004296934
118
ADAPTER FITTING , Replaced By: A0004296634
119
T-FITTING LEFT AND RIGHT BRAKE HOSES
119
T-FITTING LEFT AND RIGHT BRAKE HOSES
120
NUT BRACKET TO SIDE MEMBER
122
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
122
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
122
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
124
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
126
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
128
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
130
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
130
FITTING ,4 667210
132
SCREW-IN FITTING SERVICE BRAKE VALVE
134
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
136
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
138
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
141
CLAMP 3/2-WAY SOLENOID VALVE
142
SCREW CLAMP TO BRACKET
142
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
144
NUT PUMP TO BRACKET
144
NUT , Replaced By: N913004006001
149
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
149
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
149
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
149
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT PRESSURE REGULATOR BOSCH,241
999
CONNECTOR REPAIR SIZE
999
PLUG
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
VALVE EMERGENCY RELEASE VALVE,CONNECTION: "23"
999
PROTECTIVE PLATE , ELIMINATED - NO LONGER REQUIRED
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW , Replaced By: N304017008021
999
WASHER STRAP TO SUPPORT
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PIPE CLAMP
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
SEAL RING , Replaced By: N007603012121
