Поз.
Артикул
Описание

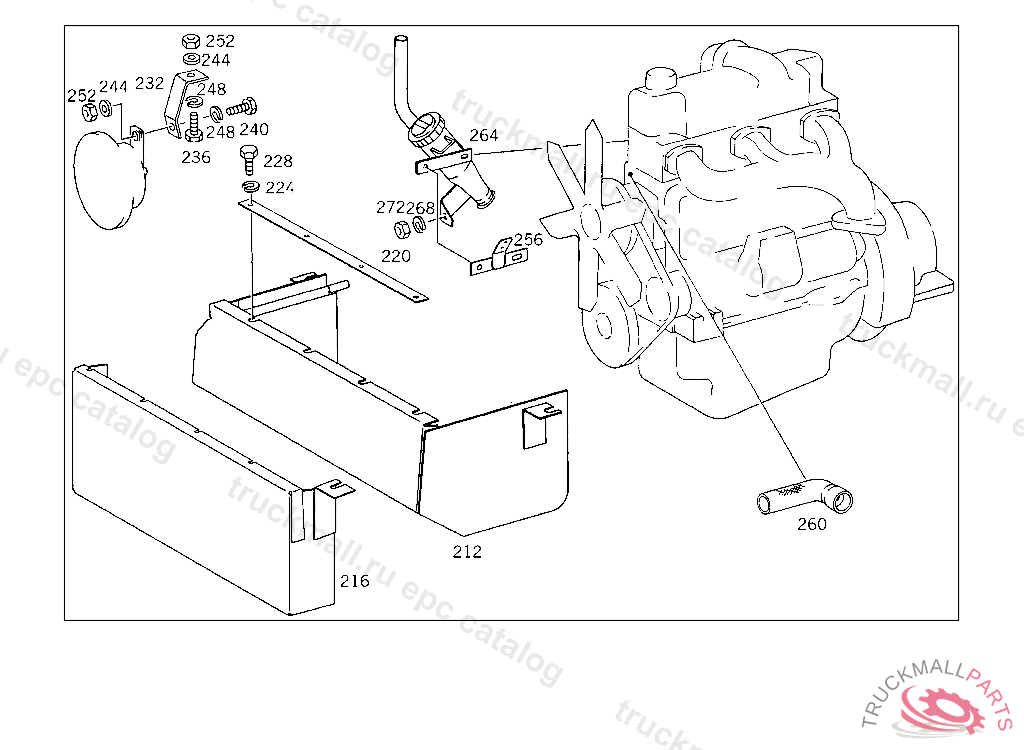

212
SCREENING PLATE COMPRESSOR
216
SCREENING PLATE
220
CLAMPING RAIL COVERING TO FRAME
224
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
228
SCREW COVER PLATE TO BRACKET
232
BRACKET HORN
236
SCREW , Replaced By: N304017010002
236
SCREW BRACKET TO SIDE MEMBER
240
SCREW END PIECE TO EXHAUST PIPE M 10X25
244
WASHER , Replaced By: N000125010532
244
WASHER RADIATOR TO RUBBER MOUNTING
248
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
252
NUT BRACKET TO SUPPORT AND TO END PIECE
256
BRACKET HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP., UP TO CHASSIS 611357 ALSO INSTALLED ON 611519,611537 EXCEPT FOR 610763,610832,610834,610848,610863
260
HOSE COOLING WATER LINE, UP TO CHASSIS 611357 ALSO INSTALLED ON 611519,611537 EXCEPT FOR 610763,610832,610834,610848,610863
264
OIL FILLER NECK , UP TO CHASSIS 611357 ALSO INSTALLED ON 611519,611537 EXCEPT FOR 610763,610832,610834,610848,610863
268
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
272
NUT , Replaced By: N304035010001
272
NUT
999
FAN ALTERNATOR
999
SUPPORT LEAD SEALING
999
FRAME
999
FAN , NOT USED
