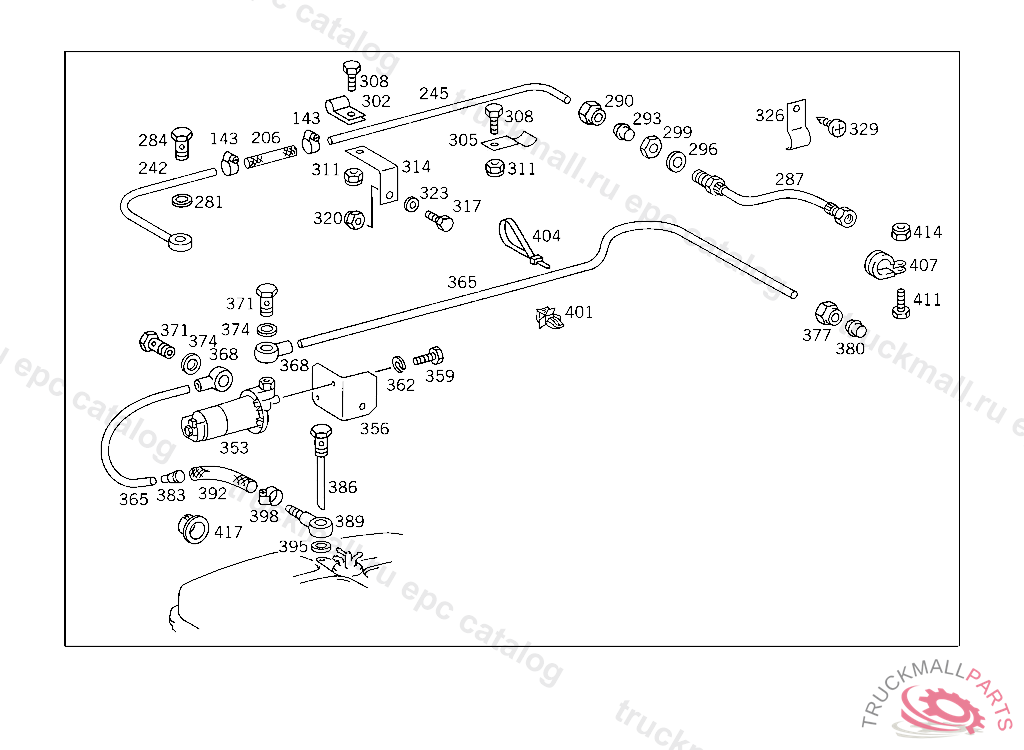

Поз.
Артикул
Описание
143
CLAMP , Replaced By: N000000000665
143
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
206
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
242
LINE FROM TANK TO SCREW CONNECTION, 741958
245
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
281
SEAL RING , Replaced By: N007603012111
281
SEAL RING LINE CONNECTION
284
HOLLOW SCREW HEATING CONNECTION
287
HOSE FUEL LINE LEADING TO HEATER UNIT
290
UNION NUT LINE CONNECTION
293
GLAND LINE CONNECTION
296
WASHER , Replaced By: N000125015019
296
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
299
NUT , Replaced By: N308673014001
299
NUT BRACKET TO SIDE MEMBER,K 035196
302
CLAMP , Replaced By: A3604300143
302
CLAMP , Replaced By: N916016008200
302
CLAMP ,K 147121, Replaced By: N000000000319
305
FIXING CLAMP. CLAMP ,845437
308
SCREW BRACKET TO TAIL LAMP BRACKET
311
NUT DIODE TO BRACKET,5 922534
314
BRACKET FUEL LINE
317
SCREW COVER PLATE TO BRACKET
320
NUT , Replaced By: N913002006009
320
NUT OIL TANK TO BRACKET
323
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
326
MOUNTING CLAMP. CLAMP OIL LINE TO BRACKET, AND BRACKET TO OIL TANK BRACKET, 738939 WAS PART OF SA'S 19075 AND 31193 UP TO CHASSIS 738938
329
SHEET METAL SCREW BRACKET TO WINDOW LEVEL GIRDER
353
PUMP
356
BRACKET FUEL-OIL PUMP,374494
359
SCREW COVER PLATE TO BRACKET
362
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
365
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
365
PLASTIC PIPE AERATION, ORDER BY THE METER
365
PLASTIC PIPE AERATION, ORDER BY THE METER
368
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
368
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
371
HOLLOW SCREW LINE CONNECTION
371
HOLLOW SCREW LINE CONNECTION
374
SEAL RING TRANSMISSION CASE COVER TO TRANSMISSION CASE, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MICROFICHE MODEL 712.0
374
SEAL RING TRANSMISSION CASE COVER TO TRANSMISSION CASE, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MICROFICHE MODEL 712.0
377
UNION NUT LINE CONNECTION
380
GLAND LINE CONNECTION
383
SLEEVE LINE CONNECTION
386
RISING PIPE FUEL LINE TO TANK
389
INTERMEDIATE PIECE FUEL LINE TO TANK
392
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
395
SEAL RING RETURN LINE TO FUEL FILTER,303383-356089
395
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
398
HOSE CLAMP HOSE FASTENING 9/13MM
401
CLIP
404
LOOM TIE LINE MOUNTING
407
CLAMP , Replaced By: A3604300143
407
CLAMP , Replaced By: N916016008200
407
CLAMP ,K 147121, Replaced By: N000000000319
411
SCREW COVER PLATE TO BRACKET
414
NUT , Replaced By: N913004006001
414
NUT PUMP TO BRACKET
417
BUSHING FUEL LINE THRU FRAME SIDE MEMBER
999
CLAMP LINE CONNECTION
999
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
999
999
CLAMP , Replaced By: A3379950332
999
FUEL TANK
999
FUEL TANK , FOR COMPONENT PARTS,SEE SPARE PARTS LIST, Replaced By: A3094705901
999
LINE RETURN LINE,063636
999
BRACKET FUEL LINE
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
BRACKET CABLE TO TRANSMISSION
999
BRACKET COMPRESSED AIR LINE MOUNTING,A 069681
999
SPACER TUBE , 000917, Replaced By: A3094710153, +001N000125013008, +001N000933008150
999
FUEL TANK , Replaced By: A3094708301
999
FUEL TANK , Replaced By: A3094708801, +001A3094700138, +001A3524710080, +001A0669970640, +001A0199977582, +001N007603014402, +001N915011008101, +001N915052006000, +001N915052006005
999
LINE
999
LINE
999
SUPPORT ,004595, 030-035,054,055, 076955, 130-135, Replaced By: A3094703242, +001A1089900340, +001N000933008150, +001N009021008205
999
HOLLOW SCREW ,4 493018, Replaced By: N915047010100
999
CLAMP , Replaced By: A1159950565
999
HOSE FROM RETURN LINE TO RETURN CONNECTION
999
HOSE , Replaced By: A3074702766, +001A3054760126, +001N915017010201, +002N916017011100
999
SENDER UNIT , Replaced By: A0075424117
999
LOOM TIE LINE MOUNTING
999
CLAMP , Replaced By: N916016008200
999
BANJO UNION , Replaced By: N915052006003
999
SLEEVE , Replaced By: N915062006000
999
SENDER UNIT , Replaced By: A0015427517
999
FILLER CAP , Replaced By: A1244700005
999
FILLER CAP , Replaced By: A1244700005
