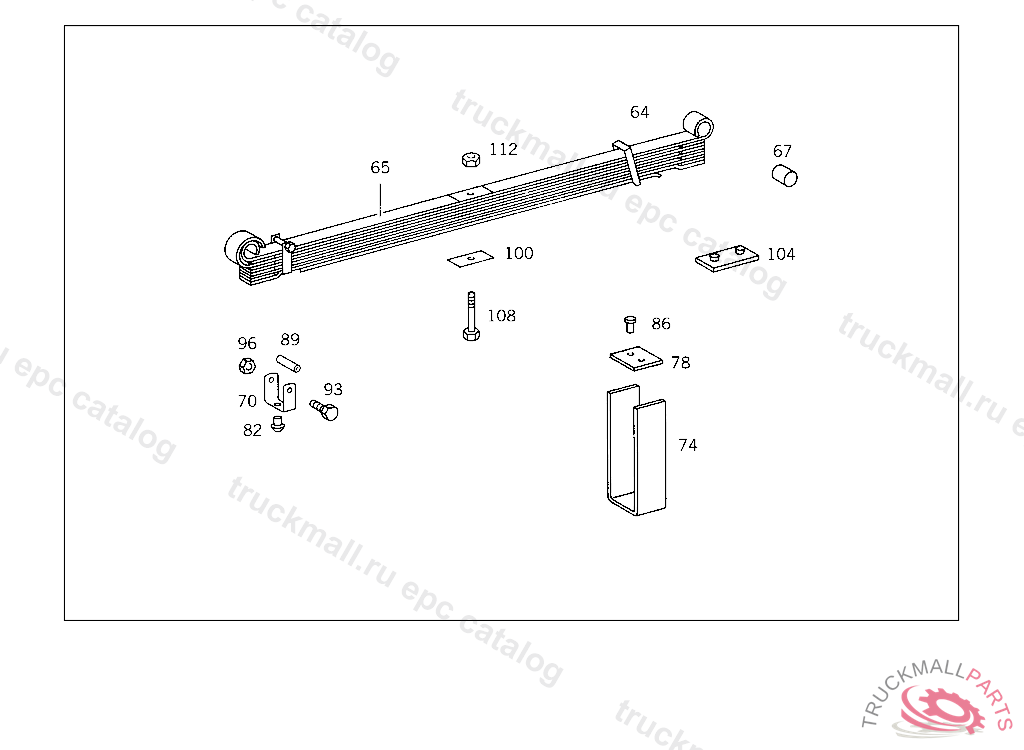

Поз.
Артикул
Описание
64
REAR SPRING 5-LEAF,WITH RUBBER PAD,623641
64
REAR SPRING 6-LEAF,WITH RUBBER PAD, FROM IDENT NO. 586177 ALSO INSTALLED ON 578789,578849
65
SPRING LEAFNO.1, FROM IDENT NO. 586177 ALSO INSTALLED ON 578789,578849
67
BUSHING
67
BUSHING
70
SPRING CLAMP TO SPRING LEAF NO.4
74
SPRING CLAMP TO SPRING LEAF NO. 6, FROM IDENT NO. 586177 ALSO INSTALLED ON 578789,578849
78
WEB SPRING CLAMP TO SPRING LEAF,623641
82
RIVET SPRING CLAMP TO SPRING LEAF
86
RIVET SPRING CLAMP TO SPRING LEAF, FROM IDENT NO. 586177 ALSO INSTALLED ON 578789,578849
89
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
89
SPACER TUBE , Replaced By: A0003213253
93
SCREW VALVE TO CAB M 8X85
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
NUT , Replaced By: N913004008001
96
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
100
SHIM BETWEEN THE SPRING LEAVES, FROM IDENT NO. 586177 ALSO INSTALLED ON 578789,578849
104
THRUST WASHER BETWEEN THE SPRING LEAVES,623641
108
SPRING BOLTM 10X110
108
SPRING BOLTM 10X92,TO 310 320 21 02
112
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
REAR SPRING 6-LEAF
999
REAR SPRING 7-LEAF
999
U-BOLT180 MM,TO 309 320 21 02
999
U-BOLT200 MM
999
U-BOLT , Replaced By: A3093510525
999
U-BOLT REAR SPRING TO REAR AXLE 220 MM
999
REAR SPRING 8-LEAF,303765
