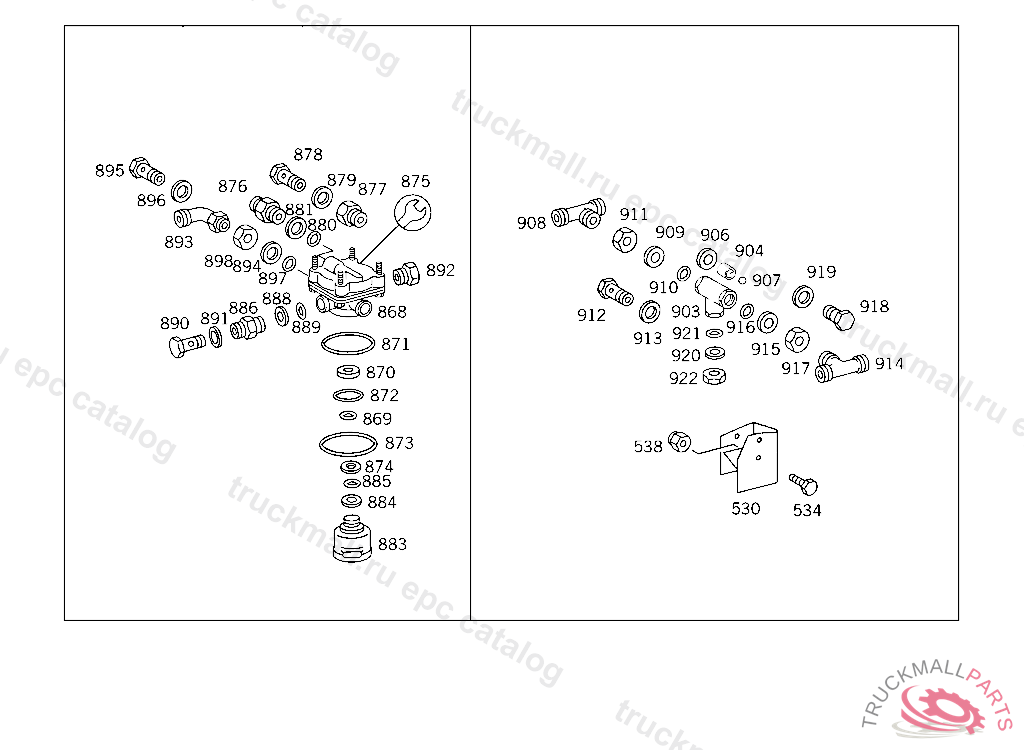

Поз.
Артикул
Описание
530
BRACKET AT SIDE MEMBER
530
BRACKET AT SIDE MEMBER
534
SCREW END PIECE TO EXHAUST PIPE M 10X25
534
SCREW END PIECE TO EXHAUST PIPE M 10X25
538
NUT STRAP TO BRACKET
538
NUT STRAP TO BRACKET
538
NUT , Replaced By: N910113010000
868
VALVE REAR AXLES I AND II BOSCH
868
VALVE FRONT AXLES I AND II "WABCO"
868
VALVE (RELAY VALVE) GRAU
868
VALVE REAR AXLES I AND II BOSCH
868
VALVE (RELAY VALVE) WABCO
868
VALVE FRONT AXLES I AND II "WABCO"
868
VALVE (RELAY VALVE) KNORR
868
VALVE (RELAY VALVE) BOSCH
868
VALVE (RELAY VALVE) GRAU
868
VALVE (RELAY VALVE) BOSCH
868
VALVE (RELAY VALVE) WABCO
868
VALVE (RELAY VALVE) KNORR
868
VALVE , Replaced By: A0034295344
869
SEAL RING42.52X2.62 MM,WABCO
869
SEAL RING42.52X2.62 MM,WABCO
869
SEAL RING22.3X2.4 MM,GRAU
869
SEAL RING22.3X2.4 MM,GRAU
869
SEAL RING , Replaced By: A0179979048
870
VALVE SEATGRAU
870
VALVE SEATWABCO
870
VALVE SEATWABCO
870
VALVE SEATGRAU
871
SEAL RINGTO 000 429 28 95,GRAU
871
SEAL RING82.22X2.62 MM,WABCO
871
SEAL RINGTO 000 429 28 95,GRAU
871
SEAL RING82.22X2.62 MM,WABCO
872
SEAL RING28X2 MM,GRAU
872
SEAL RING74.20X5.70 MM,WABCO
872
SEAL RING74.20X5.70 MM,WABCO
872
SEAL RING28X2 MM,GRAU
873
SEAL RING86X2 MM,GRAU
873
SEAL RING86X2 MM,GRAU
874
GASKET34X2X6 MM,GRAU
874
GASKET34X2X6 MM,GRAU
875
REPAIR KITKNORR
875
REPAIR KITKNORR
875
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
875
REPAIR KITWABCO
875
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
875
REPAIR KIT , Replaced By: A0004301109
875
REPAIR KIT RELAY VALVE WABCO
875
REPAIR KITWABCO
875
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
875
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
875
REPAIR KIT RELAY VALVE WABCO
875
REPAIR KIT , Replaced By: A0004201071
876
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
876
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
876
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
877
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
877
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
878
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
878
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
879
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
879
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
880
O-RING CHECK VALVE TO AIR RESERVOIR
880
O-RING CHECK VALVE TO AIR RESERVOIR
881
THRUST RING CHECK VALVE TO AIR RESERVOIR
881
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
881
THRUST RING CHECK VALVE TO AIR RESERVOIR
883
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
883
MUFFLER TRAILER CONTROL VALVE
883
MUFFLER TRAILER CONTROL VALVE
883
MUFFLER , Replaced By: A0004302370
884
THRUST RING CHECK VALVE TO AIR RESERVOIR
884
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
884
THRUST RING CHECK VALVE TO AIR RESERVOIR
885
O-RING CHECK VALVE TO AIR RESERVOIR
885
O-RING CHECK VALVE TO AIR RESERVOIR
886
FITTING DELIVERY LINE TO PUMP
886
FITTING DELIVERY LINE TO PUMP
888
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
888
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
889
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
890
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
890
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
891
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
891
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
892
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
892
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
893
ELBOW FITTING
893
ELBOW FITTING
894
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
894
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
895
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
895
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
896
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
896
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
897
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
898
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
898
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
903
VALVE TWO-WAY VOSS
903
VALVE (LOCKING VALVE) WABCO
903
VALVE TWO-WAY VOSS
903
VALVE (LOCKING VALVE) VOSS
903
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
903
VALVE (LOCKING VALVE) WABCO
903
VALVE (LOCKING VALVE) VOSS
903
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
904
VALVE BODYTO 002 429 95 44
904
VALVE BODYTO 002 429 95 44
906
GASKETTO 003 429 22 44
906
GASKETTO 003 429 22 44
907
SEAL RINGTO 003 429 46 44,WABCO
907
SEAL RINGTO 003 429 46 44,WABCO
908
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
908
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
909
THRUST RING CHECK VALVE TO AIR RESERVOIR
909
THRUST RING CHECK VALVE TO AIR RESERVOIR
909
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
910
O-RING CHECK VALVE TO AIR RESERVOIR
910
O-RING CHECK VALVE TO AIR RESERVOIR
911
NUT CHECK VALVE TO AIR RESERVOIR
911
NUT CHECK VALVE TO AIR RESERVOIR
912
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
912
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
913
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
913
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
914
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
914
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
915
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
915
THRUST RING CHECK VALVE TO AIR RESERVOIR
915
THRUST RING CHECK VALVE TO AIR RESERVOIR
916
O-RING CHECK VALVE TO AIR RESERVOIR
916
O-RING CHECK VALVE TO AIR RESERVOIR
917
NUT CHECK VALVE TO AIR RESERVOIR
917
NUT CHECK VALVE TO AIR RESERVOIR
918
HOLLOW SCREW FUEL LINE TO FEED PUMP
918
HOLLOW SCREW FUEL LINE TO FEED PUMP
918
HOLLOW SCREW , Replaced By: N915036010108
919
SEAL RING FUEL LINE TO FEED PUMP
919
SEAL RING FUEL LINE TO FEED PUMP
920
THRUST RING CHECK VALVE TO AIR RESERVOIR
920
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
920
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
920
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
920
THRUST RING CHECK VALVE TO AIR RESERVOIR
921
O-RING CHECK VALVE TO AIR RESERVOIR
921
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
921
O-RING CHECK VALVE TO AIR RESERVOIR
922
NUT CHECK VALVE TO AIR RESERVOIR
922
NUT CHECK VALVE TO AIR RESERVOIR
922
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
922
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
CONNECTOR OIL DELIVERY LINE
999
HANDLETO 001 430 17 81,KNORR
999
REPAIR KITTO 001 430 18 81/78 81
999
FILTER BOTTOMTO 000 431 24 14
999
VALVE (CHECK VALVE)
999
FILLER CAP , Replaced By: A0004316533
999
FILLER CAP , Replaced By: A0004317633
999
CUP , Replaced By: A0015864342
999
RESERVOIR , 10/50 FROM CHAS.145737-162733 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660, 145697,145701 CONTINUED SEE FOOTNOTE 20
999
PISTONVOSS
999
HOSE , Replaced By: A0004358382
999
OUTER RACETO 003 429 11 44,VOSS,707221
999
BANJO UNION , Replaced By: N915052006005
999
ELBOW FITTING , Replaced By: A0019904371
999
BUSHING , Replaced By: N915062004000
999
SPRING , Replaced By: A0009935205
999
HOSE FROM PARKING BRAKE VALVE TO ELBOW FITTING
999
VALVE PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL KNORR
999
VALVE PARKING BRAKE KNORR
999
BRAKE BOOSTER ASSEMBLY , FROM CHASSIS 018154 ALSO INSTALLED ON 017661,017829 EXCEPT FOR 018155,018156,018159,018308,018310,018315,018317,018318,018327,018350,018355. EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 533350, Replaced By: A0024305630, +001A1262920074, +001N912011008000
999
BRAKE BOOSTER ASSEMBLY , UP TO IDENT NO. 352290 EXCEPT FOR 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. ALSO INSTALLED ON 352332,352759,353163,353868,354161.
999
SEAL RING , Replaced By: A0009971548
999
HOSE
999
REPAIR KIT , Replaced By: A0034201724
999
THRUST RINGVOSS,707221
999
BRAKE MASTER CYLINDER , 10/50 FROM CHAS.145737-162733 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660, 145697,145701 CONTINUED SEE FOOTNOTE 20
999
BRAKE MASTER CYLINDER
999
HOSE FROM RESERVOIR TO MASTER CYLINDER
999
CLAMP , Replaced By: A0004760436
999
GASKET
999
PIN BRAKE PEDAL TO BRAKE BOOSTER
999
SPHERICAL PIECE , Replaced By: A3025860242
999
PROTECTIVE PLATE ,544549
999
PROTECTIVE PLATE
999
RATCHET ROD
999
BEARING BRACKET HAND BRAKE LEVER, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
999
BRAKE LEVER
999
HANDLETO 341 420 00 88
999
BRACKET LEFT
999
BRACKET RIGHT
999
GROMMET , Replaced By: A0019877625
999
BRACKET BRAKE BOOSTER ASSEMBLY
999
BRACKET BRAKE BOOSTER BRACING
999
GASKET BRACKET TO FIRE WALL,707221
999
GASKET BRACKET TO FIRE WALL,707221
999
LINE WITH BEAD,10 MM
999
BUSHING , Replaced By: A0009973481
999
SUPPORT UPPER PART
999
SUPPORT ,556500 ALSO INSTALLED ON 553210,556146
