Mercedes
CAR
E 250 BLUETEC
207.304
21 MAJOR ASSEMBLY DETACHABLE BODY COMP.

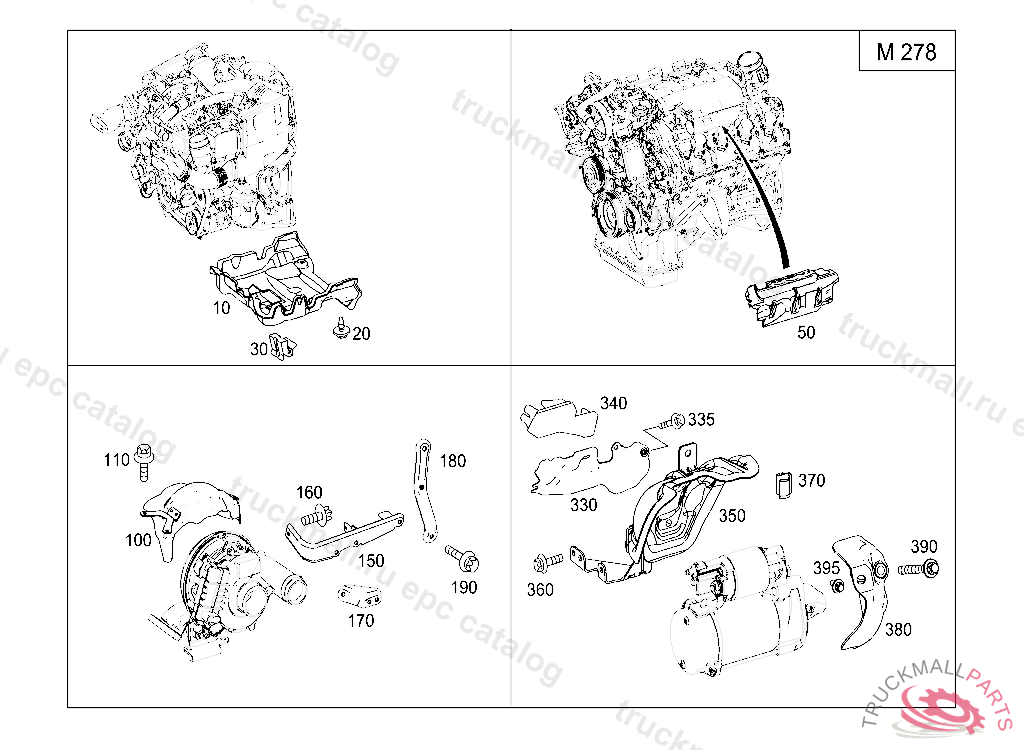

300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION IL. 1

E 250 BLUETEC - 207.304 - 21 MAJOR ASSEMBLY DETACHABLE BODY COMP.

Поз.
Артикул
Описание
100
A6510960168
SCREENING PLATE TURBOCHARGER
150
A6510962340
BRACKET TURBOCHARGER AT ENGINE SUPPORT
150
A6510962940
BRACKET TURBOCHARGER AT ENGINE SUPPORT
160
N000000003853
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
160
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
170
A6510963140
BRACKET
180
A6510962840
BRACKET TURBOCHARGER AT CRANKCASE
190
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
190
A0009906203
BOLT BRACKET TO TURBOCHARGER M8X12
190
N000000003853
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
350
A6511501675
SCREENING PLATE FOR STARTER, A 20120308 L 02624520120331 V 00211920120331
360
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
370
A0029955677
CLIP TO SHIELD
