Поз.
Артикул
Описание

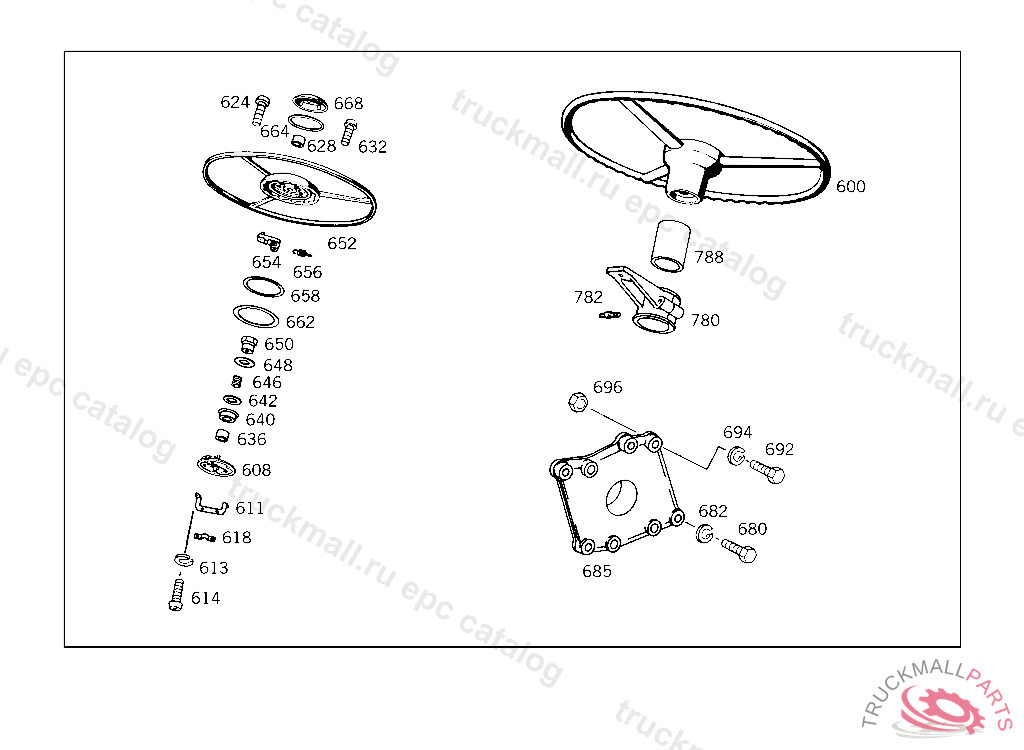

600
STEERING WHEEL IVORY, 004752
608
CONTACT PLATE
611
BRACKET
613
LOCK WASHER T-FITTING TO BRACKET
614
SCREW FUSE BOX TO SIDE MEMBER,5 097182
614
SCREW , Replaced By: N000000001933
614
SCREWR & S, M 4X8
624
SCREW CONTACT PLATE TO STEERING WHEEL
628
SPACER TUBE CONTACT PLATE TO STEERING WHEEL
632
SCREW CONTACT PLATE TO STEERING WHEEL
636
BUSHING , USED WITH AIR BRAKE
640
KONTAKTTELLER. CONTACT CUP
642
ISOLIERPLATTE. INSULATING PLATE
646
SPRING
648
KONTAKTSCHEIBE. CONTACT RING
650
NUT
652
SIGNAL RING ,006548,001,002,006,008,009,015,041
654
RATCHET LEVER. LEVER
656
RELEASE SPRING. SPRING
658
THRUST WASHER
662
RING
664
GUMMISCHEIBE. SEAL RING
668
TRADE MARK,. BADGE IVORY
680
SCREWROCKINGER TYP 59 G140,59 G150
682
LOCK WASHERROCKINGER TYP 59 G140,59 G150
685
STEERING SUPPORT
692
SCREW BRACKET TO SUPPORT
694
LOCK WASHERROCKINGER TYP 59 G140,59 G150
696
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
696
NUT , Replaced By: N308673016001
780
STEERING COLUMN BRACKET
782
STUD
788
RING
999
FILTER , 001778
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300785
999
BOOTLEMFOERDER
999
999
CLAMP CLAMP, TWO-HOLE
999
999
999
999
999
999
999
999
999
999
999
999
BOOT DRAG LINK
999
999
999
999
999
999
TUBE STEERING SHOCK ABSORBER, 000490
999
999
BALL JOINT STEERING SHOCK ABSORBER, 000490
999
BALL JOINT STEERING SHOCK ABSORBER, 000491-002532
999
999
999
999
999
DUST CAP REAR, FROM IDENT NO. 796991 EXCEPTO 801111
999
999
999
999
999
999
999
999
999
BALL JOINT STEERING SHOCK ABSORBER, FROM IDENT NO. 002533-004753 EXCEPT FOR 004742,004744,004747,004749,004751,004752.
999
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
DUST CAP , FROM IDENT NO. 796991 EXCEPTO 801111
999
999
999
PLATE ,006548,001,002,006,008,009,015,041
999
999
999
999
999
999
999
999
999
999
999
999
999
999
999
SEALING CORD , Replaced By: A0119973645
999
999
999
999
SNAP RING REAR, FROM IDENT NO. 796991 EXCEPTO 801111
999
NUT DRAG LINK END M 24X1.5
999
HOSE , Replaced By: A0079973082
999
LOCK STOP TO BEARING BRACKET
999
CONTACT PLATE. PLATE ,009343, Replaced By: A0004640417, +001A3224600040, +001A3224640050, +001A3214640062, +001A3204640182
999
KLEMMSCHRAUBE FUR ANSCHLUSSKLEMME BIS FAHRGESTELL-NR. 00054/53
999
FIRMENZEICHEN AM LENKRAD. BADGE
999
999
999
DRAG LINK , Replaced By: A3174600905, +003N071412008100
999
999
999
999
HYDRAULIC PUMP , 001778, Replaced By: A3174600780
999
HYDRAULIC PUMP , 001778, Replaced By: A3174600780
999
999
999
999
STEERING BOX ASSEMBLY , Replaced By: A3174601001
999
999
999
999
999
999
999
999
999
999
999
999
999
999
DRAG LINK , Replaced By: A3174607005
999
999
999
DRAG LINK REAR, FROM IDENT NO. 004573 ALSO INSTALLED ON 004571
999
999
999
STEERING INTERMEDIATE ARM , 004713
999
SHOCK ABSORBER STEERING, 000490
999
SHOCK ABSORBER STEERING, 000491-002532
999
BRACKET AT CROSS MEMBER, UP TO IDENT NO. 001927 EXCEPT FOR 001904,001906-001920,001922-001926.
999
SHOCK ABSORBER , Replaced By: A3024630432
999
999
999
BRACKET LEFT, FROM IDENT NO. 001928 ALSO INSTALLED ON 001904,001906-001920,001922-001926.
999
SCREW STEERING SHOCK ABSORBER TO BRACKET, UP TO IDENT NO. 001927 EXCEPT FOR 001904,001906-001920,001922-001926.
999
SCREW STEERING SHOCK ABSORBER TO BRACKET, FROM IDENT NO. 001928 ALSO INSTALLED ON 001904,001906-001920,001922-001926.
999
FITTING , 001778
999
999
BRACKET , 014426, Replaced By: A3224640034, +001N072573001006
999
PIN
999
999
SIGNAL RING ,006548,001,002,006,008,009,015,041, Replaced By: A3204640215, +001A0004640437, +001A3214640062, +001A3204640182
999
SIGNAL RING
999
999
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SCREW PLUG SOCKET TO COVERING
999
COTTER PINTO 345 460 94 05
999
COTTER PINTO 309 421 00 71, 309.370-391UP TO CHASSIS 026799,FROM CHASSIS SEE SEPARATE SPARE PARTS LIST 741.030,REMAINS APPLICABLE TO 309.300-326
999
COTTER PIN ROD TO LEVER
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN LEVER TO SUPPORT
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
COTTER PIN , UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER
999
SPRING WASHER CAB FLOOR
999
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
999
LOCK RING , Replaced By: A0079942041
999
SCREW CONSOLES TO SIDE MEMBER M 10X25
999
999
SCREW CLUTCH TO FLYWHEEL
999
HEX. HEAD. SCREW BRACKET TO TRANSMISSION CASE
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET,4 410133
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017010030
999
SCREW , Replaced By: N304017012020
999
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N304032008006
999
NUT COVER PLATE
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT , Replaced By: N308673016001
999
NUT CLAMP, TWO-HOLE, UP TO CHASSIS 5 034559, FROM CHASSIS SEE SERIE
999
NUT , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
NUT STEERING SHOCK ABSORBER TO STEERING ARM
999
NUT TORSION BAR TO FRAME
999
NUT DRAG LINK TO LEVER
999
STUD BOLT
999
SCREW BRACKET TO CROSS MEMBER
999
SCREW CLAMP, TWO-HOLE
