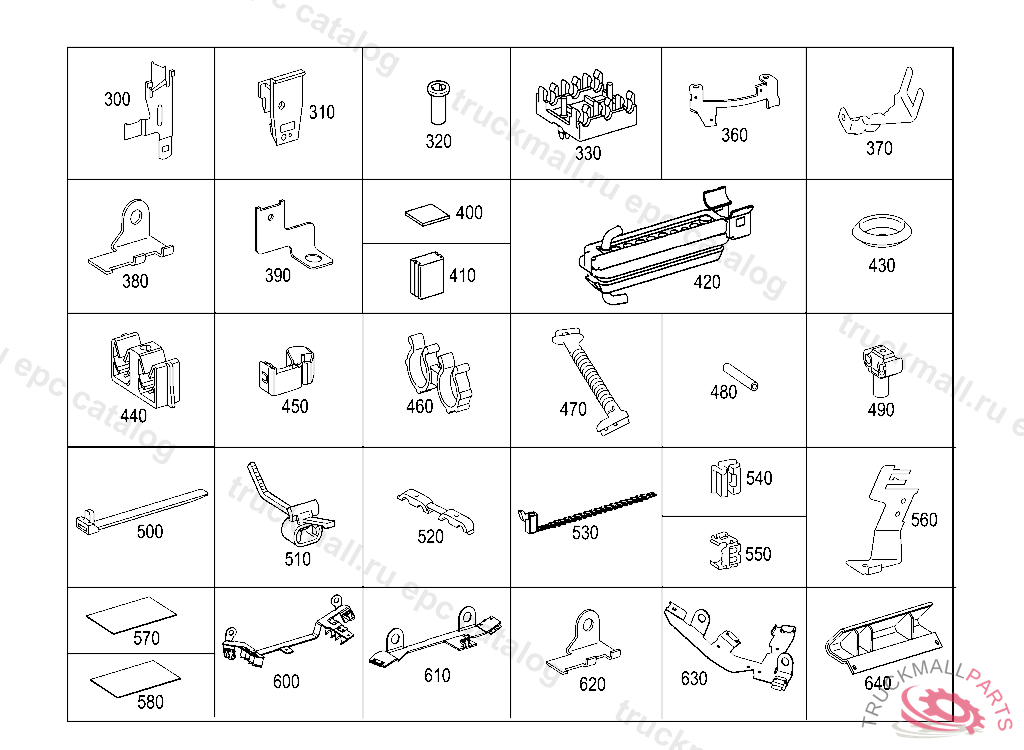

Поз.
Артикул
Описание
300
BRACKET GROUND CABLE
310
COVER PARTITION PANEL
320
PUSH BUTTON
330
LINE HOLDER
360
BRACKET TO TRANSMISSION BELL LEFT
370
BRACKET AT OIL PAN
370
BRACKET AT OIL PAN, Replaced By: A2711591240
380
BRACKET TO TRANSMISSION CASE LEFT
390
BRACKET TO STARTER FLANGE TOP
400
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
400
ADHESIVE TAPE70X70
400
FELT STRIP70X25 MM
400
STRIP LEFT REAR ROOF RAIL, ORDER BY THE METER
410
GROMMET , F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
420
GROMMET FIREWALL, PASSENGER SIDE, 10-HOLE
420
GROMMET MAJOR ASSEMBLY PARTITION WALL
430
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
430
EXPANSION PLUG
440
INTERMEDIATE LAYER REAR LID STOP 22 MM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 23247820061012, Replaced By: A1698891295
450
BRACKET
460
CLAMP14-16 MM
470
HOSE RIGHT
470
HOSE LEFT
480
HOSE4.5X10X900MM
490
BRACKET BRAKE LINE TO FIRE WALL
500
LOOM TIE TO MOUNT PLASTIC PIPING
510
CABLE TIE LINE MOUNTING 150X4.6 MM
520
CLAMP16/22.5 MM
530
LOOM TIE187 MM
540
SPRING20 X 11 MM
550
SPRING CLAMP FOR SENSOR CONNECTOR 28X24 MM
560
BRACKET TO INTAKE MANIFOLD FOR O2 PROBE
570
STAMPED CUTOUT MOUNTING ANTENNA CABLE 75 X 40 MM
570
STRIP AT REAR PANEL 4 MM 50X130 MM, NOT USED
570
PAD BETWEEN PARTITION PANE AND REAR SEAT BACKREST,TOP
580
ADHESIVE FOIL
620
BRACKET TO TRANSMISSION CASE LEFT
630
BRACKET TO RIGHT TRANSMISSION CASE
