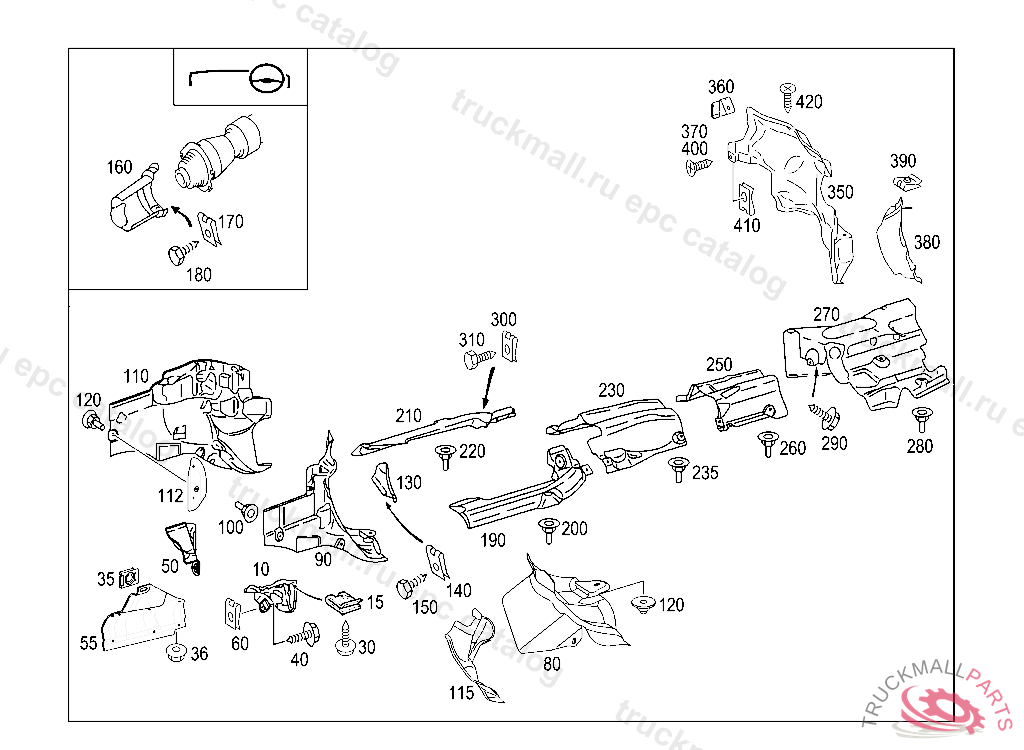

Поз.
Артикул
Описание
10
SCREENING FRAME-TYPE INTEGRAL SUPPORT,LEFT
30
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
30
SCREW-AND-WASHER ASSEMBLY MOUNTING SHIELD RIGHT
35
LOCK NUT. SPRING NUT MOUNTING PARTS
36
NUT , Replaced By: N913023006001
40
SCREW
55
SCREENING FRAME-TYPE INTEGRAL SUPPORT,RIGHT
90
SCREENING FIRE WALL, LEFT, NO LONGER AVAILABLE
100
HEXAGON NUT W COLLAR BRACKET MOUNTING
110
SCREENING FIRE WALL,RIGHT
110
SCREENING
112
FITTING TO SHIELD
115
SCREENING FRAME-TYPE INTEGRAL SUPPORT,LEFT
120
HEXAGON NUT W COLLAR BRACKET MOUNTING
130
SCREENING BOOT TO STEERING
180
SHEET METAL SCREW ALARM UNIT TO STRUT
190
SCREENING FLOOR,LEFT
200
HEXAGON NUT W COLLAR BRACKET MOUNTING
210
SCREENING MAIN FLOOR,ON THE RIGHT
220
HEXAGON NUT W COLLAR BRACKET MOUNTING
230
SCREENING AT TUNNEL ABOVE CATALYST
235
HEXAGON NUT W COLLAR BRACKET MOUNTING
250
SCREENING ABOVE CENTRAL MUFFLER
260
HEXAGON NUT W COLLAR BRACKET MOUNTING
270
SCREENING ABOVE POSTERIOR MUFFLER
280
HEXAGON NUT W COLLAR BRACKET MOUNTING
290
SCREW PANELLING TO SIDE MEMBER,BOTTOM
300
FUSE MATING BEARING TO ROOF FRAME
310
TAPPING SCREW BRACKET TO SUPPORT
