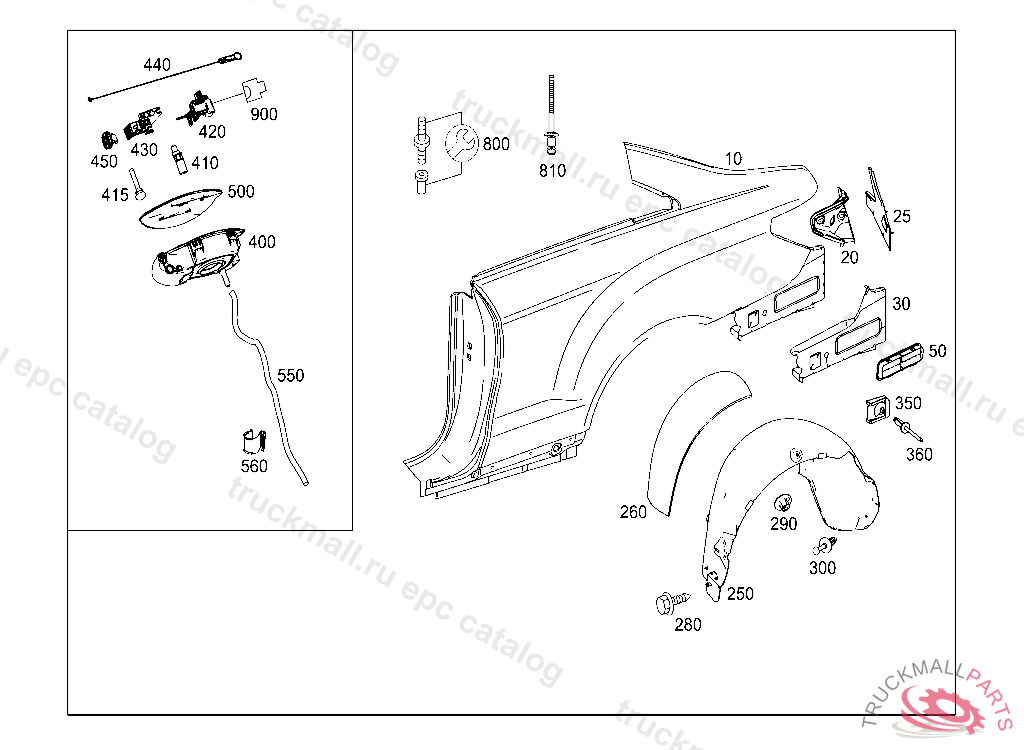

Поз.
Артикул
Описание
10
SIDEWALL LEFT
10
SIDEWALL RIGHT
20
FIXTURE RIGHT TAIL LAMP
20
FIXTURE LEFT TAIL LAMP
25
CONNECTING SHEET RIGHT TAIL LAMP
25
CONNECTING SHEET LEFT TAIL LAMP
30
BOTTOM RIGHT REAR FENDER
30
BOTTOM SIDE PANEL,LEFT
50
BREATHER REAR AIR OUTLET FLAP
250
WHEEL HOUSE COVERING LEFT REAR FENDER
250
COVER LEFT REAR FENDER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 15761620111130, Replaced By: A2076902830
250
COVER RIGHT REAR FENDER
260
SOUNDPROOFING REAR LEFT AND RIGHT, A 97499920070630 E 06000020080801
280
TAPPING SCREW BUMPER TO LEFT SIDE WALL
290
PLASTIC NUT. NUT
300
RIVET COVERING TO SIDE MEMBER
350
LOCK PROTECTIVE GRILLE
360
BLIND RIVET AT COVERING
400
RECESS TANK RECESS
410
EJECTOR TANK FLAP
415
PLUG-IN MOUNTING FILLER NECK RECESS
420
ELEMENT FUEL FILLER FLAP CENTRAL LOCKING
430
BRACKET MOTOR CENTER LOCKING TANK FLAP
440
LATCH EMERGENCY UNLOCKING CABLE FOR FUELFILL ER FLAP
450
BRACKET MOUNTING SLEEVE
500
PANELLING TANK FLAP
550
HOSE ASSEMBLY DRAIN, A 66546220111123 L 05511720111130 V 00418320111130 F 78851620111031 L 16738120120328
560
BRACKET , Replaced By: A2205010020
800
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
810
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
900
PLUG HOUSING POWER CLOSING SYSTEM 2-PIN JPT,M14/31
