Поз.
Артикул
Описание

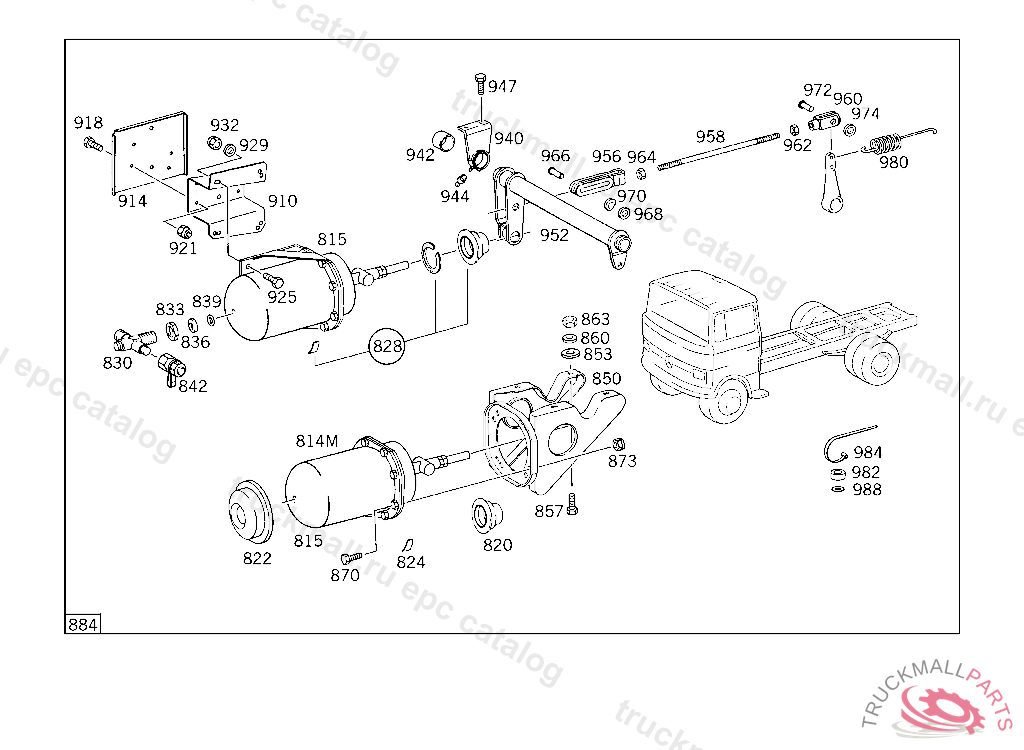

820
CUP , Replaced By: A0015864342
822
CUPTO 000 431 50 14
824
SLIDETO 000 431 50 14,000 431 24 14
828
REPAIR KITTO 001 431 65 14,000 431 24 14
828
REPAIR KIT , Replaced By: A0034201724
830
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
833
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
836
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
839
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
842
TEST CONNECTION
842
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
842
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
842
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
910
BRACKET SPRING LOAD ACCUMULATOR CYLINDER
914
REINFORCEMENT BRACKET TO FRAME
918
SCREW , Replaced By: N304017010002
918
SCREW BRACKET TO SIDE MEMBER
921
NUT , Replaced By: N910113010000
921
NUT STRAP TO BRACKET
925
SCREW CONSOLE TO SIDE MEMBER
925
SCREW , Replaced By: N308676012012
925
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
929
WASHER
932
NUT SUPPORT TO SIDE MEMBER
940
BEARING BRACKET HAND BRAKE,4 819868
942
BUSHING
944
GREASE NIPPLE PROTECTIVE TUBE
947
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
952
BRAKE INTERMEDIATE SHAFT ,4 819868
956
YOKE INTERMEDIATE SHAFT
958
PULL ROD , Replaced By: N900331010669
958
PULL ROD LEVER TO BRAKE PEDAL
960
YOKE , Replaced By: A0009961501
960
YOKE PULL ROD TO LEVER
962
NUT BRACKET TO SUPPORT AND TO END PIECE
964
NUT L.H. THREAD
966
PIN DOUBLE LEVER TO PUSH ROD
968
WASHER , Replaced By: N000125010532
968
WASHER RADIATOR TO RUBBER MOUNTING
970
SPRING WASHER , Replaced By: N000137010205
970
SPRING WASHER SHIFTING ROD TO BRACKET
972
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
974
WASHER , Replaced By: N000125010532
974
WASHER RADIATOR TO RUBBER MOUNTING
980
SPRING ,556500 ALSO INSTALLED ON 553210,556146
982
WASHER BRACKET TO LEFT SIDE MEMBER
984
LOOM TIE LINE MOUNTING
988
WASHER , Replaced By: N000125008443
988
WASHER EXHAUST MUFFLER TO STRAP
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
SEAL RING , Replaced By: A0014312960
999
SEAL RING , Replaced By: A0014313060
999
SEAL RINGTO 001 431 68 06,19.3X2.4 MM,GRAU37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
HOSE LEVER TO SUPPORT
999
SEAL RING
999
SEAL RING
999
SPHERICAL PIECE , Replaced By: A3025860242
999
VALVE CLUTCH SLAVE CYLINDER
999
BRACKET , Replaced By: A3104280740
999
GASKET ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
999
BRACKET , Replaced By: A3184291540
999
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
999
PROTECTIVE CAP , Replaced By: A0004210887
999
GROMMET ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
999
BRACKET , Replaced By: A3183282240
999
BRACKET , Replaced By: A3604293140
999
BEARING BRACKET HAND BRAKE,4 819869
999
BRAKE INTERMEDIATE SHAFT ,4 819869
999
ANGLE , Replaced By: A4220980239
999
BRACKET LEFT,6028918 000001
999
BRACKET BRAKE BOOSTER,4 373946
999
BRACKET CONSOLE TO FRAME SIDE MEMBER,4 373946
999
BRACKET FLUID RESERVOIR,4 885755
999
BUSHING , Replaced By: A3184310053
999
SPACER TUBE BRAKE CAMSHAFT BEARING,4 8198695 102702
999
BRACKET ,4 282708 051,052,053,054,065,066,067,070,072 UP TO CHASSIS 4 383113,056,057,058,059,090,092 UP TO CHASSIS 4 373946 EXCEPT FOR 4 365508, 4 367796,4 368182,4 368578,4 368976,4 369331, Replaced By: A3184313940, +001A3184314040
999
BRACKET BRAKE BOOSTER,4 282708
999
BRACKET , Replaced By: A3184313940
999
BRACKET FLUID RESERVOIR,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
999
GUMMED LABEL INSTRUCTION FOR PARKING BRAKE VALVE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
SPRING (RELEASE SPRING)
999
SEAL HOLDER
999
SEAL RING
999
LINE FROM BRAKE POWER REGULATOR,CONNECTION "2",TO BRAKE HOSE 1250 MM
999
SPACER TUBE , Replaced By: A4082910153
999
FITTING AT BRAKE BOOSTER, UP TO CHASSIS 699969 EXCEPT FOR 500001-599999
999
REPAIR KIT , Replaced By: A3534200167
999
BALL CUP BRAKE INTERMEDIATE SHAFT BEARING
999
BRACKET , Replaced By: A3853530440
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP LINE MOUNTING
999
ADHESIVE FOIL GUIDE SIGN
999
TUBE. BUSHING CAB FLOOR COVERING
999
SPACER TUBE
999
BRACKET , Replaced By: A4420981239
999
BRACKET , Replaced By: A4420981839
999
BRACKET COMPRESSED AIR LINES
999
COTTER PIN STRAP TO CONSOLE 20 L
999
COTTER PIN CYLINDER TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
EXPANSION PLUG
999
LOCK RINGTO 000 431 46 12,001 431 12 12
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW , Replaced By: N000933006151
999
SCREW CONNECTOR
999
SCREW STRAP TO BRACKET
999
SCREW BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT M 10X40,4 338291
999
SCREW COVER PLATE TO BRACKET
999
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
999
SCREW COVER PLATE TO BRACKET
999
SCREW DISTRIBUTOR TO CAB
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008016
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW COVER PLATE TO BRACKET
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901967
999
UNION NUT , Replaced By: N915017008100
999
UNION NUT , Replaced By: N915017012100
999
FITTING , Replaced By: A0019909871
999
T-FITTING. FITTING AT INJECTION PUMP
999
WOODRUFF KEY
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SEAL RING , Replaced By: N007603010110
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING LINE CONNECTION
999
SHEET METAL SCREW BOOT TO CAB FLOOR
999
SHEET METAL SCREW ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
999
SCREW REFLECTOR TO BRACKET
999
SCREW , Replaced By: N007985006580
999
SCREW APPARATUS PLATE TO CAB,K 062140
999
SNAP RINGTO 001 431 22 12,001 431 24 12
999
NUT SUCTION LINE TO OIL PUMP
999
FITTING , Replaced By: A0029971172
999
FITTING , Replaced By: A0009907771
999
FITTING
999
NUT , Replaced By: N080705026003
999
NUT 3/2-WAY VALVE TO CAB,4 685151
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
UNION NUT LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW OIL LINE TO TRANSMISSION
999
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
999
PLUG ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
BANJO UNION HEATING CONNECTION,K 169122
999
SLEEVE LINE CONNECTION
999
REPAIR KITTO BOSCH
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KIT BRAKE MASTER CYLINDER TO 003 430 81 01,TEVES,4 282708
999
REPAIR KIT , Replaced By: A0034303181
999
FITTING (PARTS KIT),LINE RUPTURE
999
SPRING
999
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
999
SEAL RING
999
VALVE (RELAY VALVE) BOSCH
999
VALVE (RELAY VALVE) KNORR
999
VALVE. REPAIR KIT HAND BRAKE LEVER TO 001 430 65 81
999
REPAIR KITTO 001 430 56 81,001 430 57 81
999
BRAKE MASTER CYLINDERTEVES
999
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SEAL RING8X2 MM, 415 5 014668 416 5 000515 417 4 972023
999
SEAL RING4 X 1.50 MM, 415 5 014668 416 5 000515 417 4 972023
999
CHAIN LOCK LINK ,4 652830
999
SEAL RING5X2 MM, 415 5 014668 416 5 000515 417 4 972023
999
SEAL RING42X21.5 MM
999
WHEEL BRAKE CYLINDER , WITH 8-MM,OR 10-MM,MOUNTING SCREWS, Replaced By: A0074202018
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER, NOT FOR USE WITH MERCEDES-BENZ CAB
999
FITTING 3/2-WAY VALVE,CONNECTION: "20"
999
FITTING , Replaced By: A0029906171
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RING 25.3X2.4 MM,TO 001 431 68 06, 002 431 02 06
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
NEEDLE BEARINGTO 000 431 46 12,001 431 12 12
999
SEAL RING
999
REPAIR KITGRAU,5 148812
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 000 431 68 14
999
REPAIR KIT , Replaced By: A0004301109
999
REPAIR KIT , Replaced By: A0004201071
