Поз.
Артикул
Описание

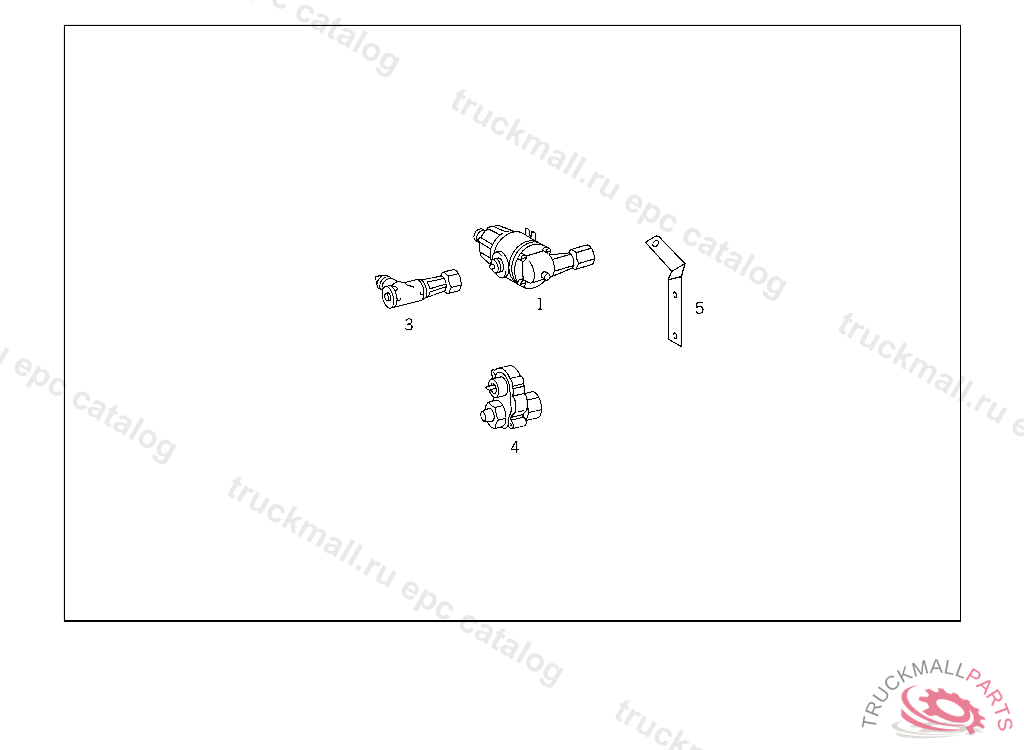

1
ANGLE DRIVE. REDUCTION GEARING0.882
1
REDUCTION GEARING0.643
1
REDUCTION GEARING , Replaced By: A0015425630
1
ANGLE DRIVE. REDUCTION GEARING , Replaced By: A0025425830
1
REDUCTION GEARING RATIO: N11.000 N21.404
1
REDUCTION GEARING0.739
1
REDUCTION GEARING1.071
1
REDUCTION GEARING0.769
1
ANGLE DRIVE. REDUCTION GEARING12 V
1
REDUCTION GEARING , Replaced By: A0015424330
1
ANGLE DRIVE , Replaced By: A0035425430
1
REDUCTION GEARING0.909
1
REDUCTION GEARING1.000
1
REDUCTION GEARING RATIO: N10.7391 N21.0376
1
REDUCTION GEARING RATIO: N11.0400 N21.4602
1
REDUCTION GEARING RATIO: N10.8823 N21.2387
1
REDUCTION GEARING RATIO: N10.9629 N21.3519
1
REDUCTION GEARING0.792
1
REDUCTION GEARING0.643
1
ANGLE DRIVE. REDUCTION GEARING RATIO: N10.7692 N21.0799
1
REDUCTION GEARING1.100
1
REDUCTION GEARING
1
REDUCTION GEARING0.937
1
REDUCTION GEARING1.100
1
REDUCTION GEARING RATIO: N11.1000 N21.5444
1
REDUCTION GEARING0.714
1
REDUCTION GEARING RATIO: N11.1000 N21.5444
1
REDUCTION GEARING
1
ANGLE DRIVE12 V
1
REDUCTION GEARING0.769
1
REDUCTION GEARING RATIO: N10.9090 N21.2762
1
REDUCTION GEARING RATIO: N10.7142 N21.0027
1
REDUCTION GEARING12 V
1
REDUCTION GEARING RATIO: N11.0714 N21.5042
3
ANGLE DRIVE
3
ANGLE DRIVE0.8500
3
ANGLE DRIVE , Replaced By: A0025423830
3
ANGLE DRIVE , Replaced By: A0005422830
3
ANGLE DRIVE
3
ANGLE DRIVE0.7368
3
ANGLE DRIVE , Replaced By: A3445420230
3
ANGLE DRIVE RATIO: 1:0.909
3
ANGLE DRIVE
3
ANGLE DRIVE , Replaced By: A3455424430
3
ANGLE DRIVE0.7895
3
ANGLE DRIVE RATIO: 1:0.961
3
ANGLE DRIVE0.375
3
REDUCTION GEARING RATIO: N10.8500 N21.1934
3
ANGLE DRIVE
3
ANGLE DRIVE , Replaced By: A0035423130
3
ANGLE DRIVE RATIO: 1:0.937
3
ANGLE DRIVE , Replaced By: A0005420630
3
ANGLE DRIVE , Replaced By: A3445420230
3
ANGLE DRIVE , Replaced By: A0035425330
3
ANGLE DRIVE0.9615
3
ANGLE DRIVE1.0714
3
ANGLE DRIVE0.8181
3
ANGLE DRIVE , Replaced By: A0025424530
3
ANGLE DRIVE0.6666
3
ANGLE DRIVE12V
3
ANGLE DRIVE , Replaced By: A0035423530
3
ANGLE DRIVE0.8823
3
ANGLE DRIVE RATIO: 1:0.882
3
ANGLE DRIVE , Replaced By: A0025427630
3
ANGLE DRIVE1.1764
3
REDUCTION GEARING
3
ANGLE DRIVE , Replaced By: A0005424230
3
ANGLE DRIVE SPEEDOMETER
3
ANGLE DRIVE RATIO: 1:1.100
3
ANGLE DRIVE , Replaced By: A3455420930
3
ANGLE DRIVE RATIO: 1:1.071
3
ANGLE DRIVE
3
ANGLE DRIVE1.1000
4
ADAPTER
5
BRACKET REDUCTION GEARING
5
BRACKET REDUCTION GEARING,065793
999
ANGLE DRIVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 346464, Replaced By: A0015421730
999
DECALCOMANIA SHOWING GEARSHIFT PATTERN
999
DECALCOMANIA SHOWING GEARSHIFT PATTERN
999
WASHER REDUCTION GEARING TO BRACKET
999
WASHER , Replaced By: N000433005304
999
WASHER BOOT TO CAB FLOOR
999
SCREW BRACKET TO BRACKET M 5X18
999
SCREW BRACKET TO CROSS MEMBER 5X18
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
LOCK WASHER LINE MOUNTING
999
LOCK WASHER BRACKET TO STEERING COLUMN END
