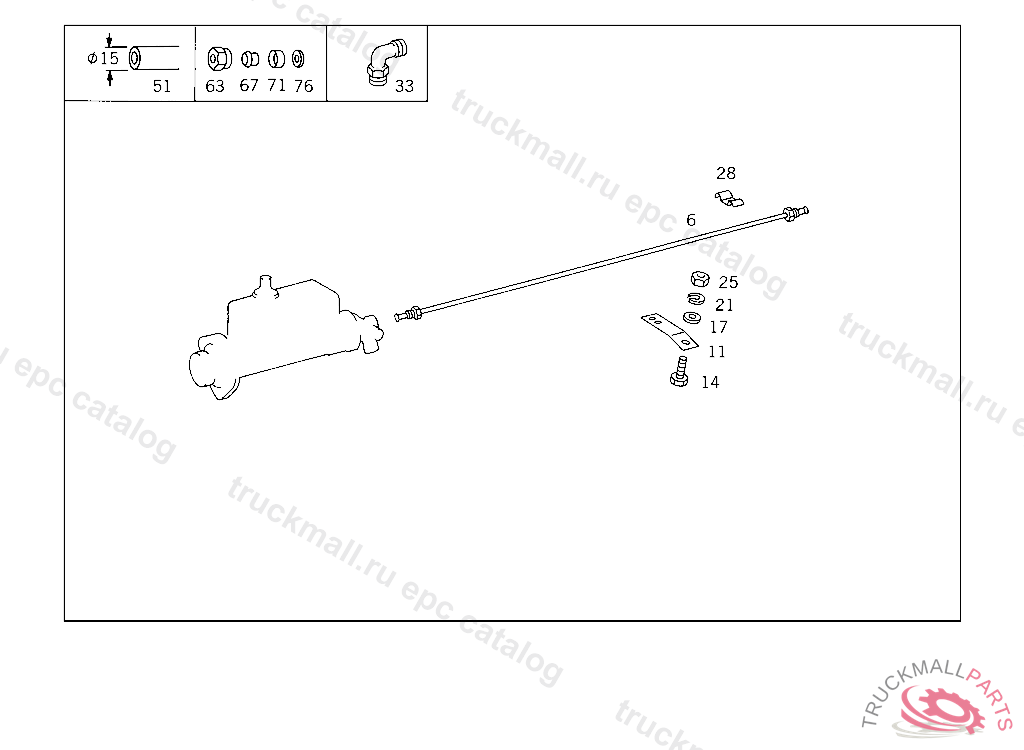

Поз.
Артикул
Описание
6
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
6
LINE FROM VALVE TO BRAKE HOSE 1600 MM
6
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
11
BRACKET
14
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
14
SCREW , Replaced By: N308676012012
17
WASHER GROUND STRAP TO ENGINE, UP TO CHASSIS 4 602752,EXCEPT FOR 551570-599999
21
LOCK WASHER FITTING TO BRACKET
25
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
25
NUT , Replaced By: N308673012002
28
CLAMP COMPRESSED AIR LINE TO BRACKET
33
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
51
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
51
LINE , Replaced By: A0005516256
63
UNION NUT BUTT SCREW CONNECTION
67
GLAND LINE CONNECTION
71
THRUST RING BUTT SCREW CONNECTION
999
BRAKE CYLINDER ,007967, 338.006,008,015, 002421, 338.057,061 645606, Replaced By: A0004206324
999
SCREW PLUG CONNECTION "1","2",4 478330
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
CONNECTOR , Replaced By: A0004312031, +001N074302022304
999
METAL SPRING BELLOWS , Replaced By: A0004311418
999
VALVE REAR
999
LEVER
999
LEVER , TO 000 431 22 12 OR 000 431 21 12
999
BRAKE PRESSURE REGULATOR. REGULATOR VALVE LESS LEVER,LOAD-DEPENDING
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0019972572
999
BRAKE MASTER CYLINDER , Replaced By: A0024304101, +001A0004318702
999
CLAMP , Replaced By: A3129952420
999
BRACKET
999
SPACER WASHER
999
BRACKET
999
BRACKET , 000387
999
BRACKET
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
