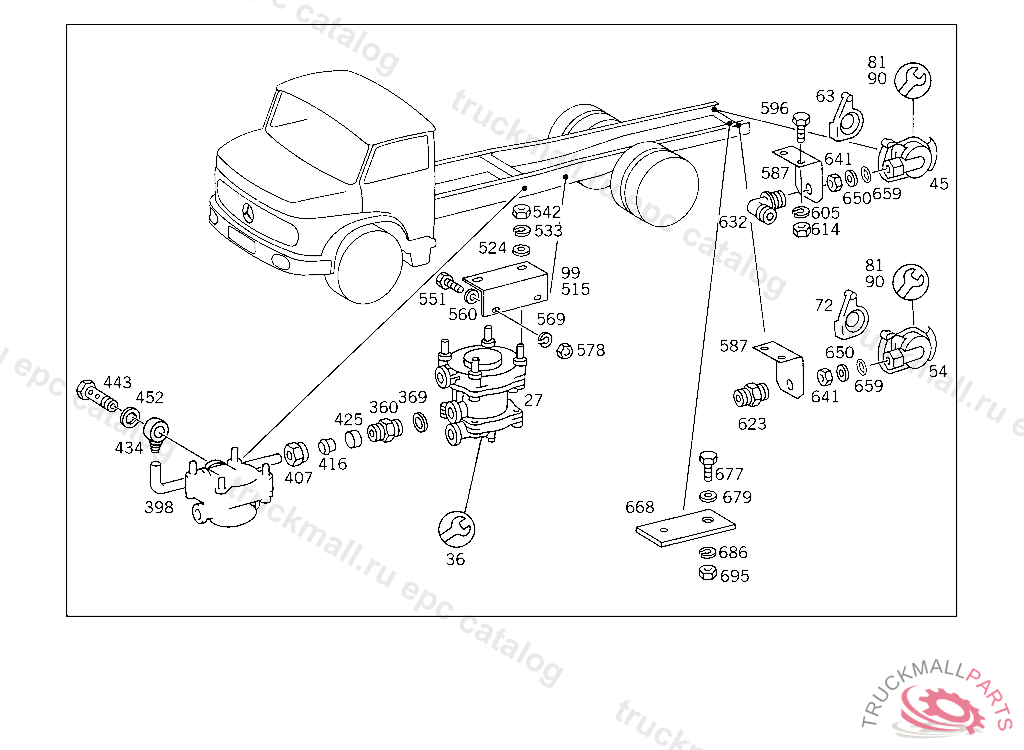

Поз.
Артикул
Описание
27
BRAKE VALVE (TRAILER CONTROL VALVE) "KNORR",TB108827
27
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
36
REPAIR KIT CONTROL VALVE TO 002 431 28 05
36
REPAIR KITTO 001 431 37 05,4 375193
36
REPAIR KIT VALVE KIT TO 001 431 37 05,4 375193
45
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
45
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
54
BRAKE LINE COUPLING LEFT
54
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
63
COVER SUPPLY, RED "WABCO"
72
COVER BRAKE,YELLOW "WABCO"
81
REPAIR KIT BRAKE LINE COUPLING "WABCO"
81
REPAIR KIT BRAKE LINE COUPLING "WABCO"
90
REPAIR KIT SUPPLY, RED TO 000 429 86 30
99
BRACKET TRAILER CONTROL VALVE
360
FITTING TRAILER CONTROL VALVE,CONNECTION: "43"
360
FITTING TRAILER CONTROL VALVE,CONNECTION: "43"
369
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
369
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
398
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
407
UNION NUT LINE CONNECTION
416
GLAND LINE CONNECTION
425
SLEEVE LINE CONNECTION
434
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
443
HOLLOW SCREW LINE TO OIL RADIATOR
452
SEAL RINGTO 006 997 00 72
515
BRACKET TRAILER CONTROL VALVE
524
WASHER BRACKET TO CAB REAR PANEL
533
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
542
NUT TAIL LAMP TO BRACKET
551
SCREW BRACKET TO FRAME M 10X28
551
SCREW BRACKET TO SIDE MEMBER,A 069681
551
SCREW BRACKET TO SIDE MEMBER,A 069681
560
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
560
WASHER BRACKET TO CAB REAR PANEL
560
WASHER BRACKET TO CAB REAR PANEL
569
LOCK WASHER , Replaced By: N912004010102
569
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
569
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
578
NUT BRACKET TO FRAME
578
NUT TAIL LAMP TO BRACKET
578
NUT TAIL LAMP TO BRACKET
587
BRACKET AT REAR CROSS MENBER
596
SCREW , Replaced By: N304017008034
596
SCREW , Replaced By: N304017008034
605
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
614
NUT TAIL LAMP TO BRACKET
623
FITTING AT BRACKET
632
ELBOW FITTING , Replaced By: A3849907071
641
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
650
WASHER , Replaced By: N000125017016
650
THRUST RING LOCKING VALVE
650
WASHER , Replaced By: N000125017016
659
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
668
BRACKET GUSSET PLATE TO SUPPORT USED FOR CROSS MEMBER
677
SCREW CLAMP TO BRACKET AND TO PIPE
677
SCREW FUEL TANK TO CONSOLE
679
WASHER TRAILER PLUG SOCKET TO BRACKET
686
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
686
LOCK WASHER , Replaced By: N912004010102
695
NUT TAIL LAMP TO BRACKET
695
NUT BRACKET TO RETARDER
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
HOSE , Replaced By: A0009872827
