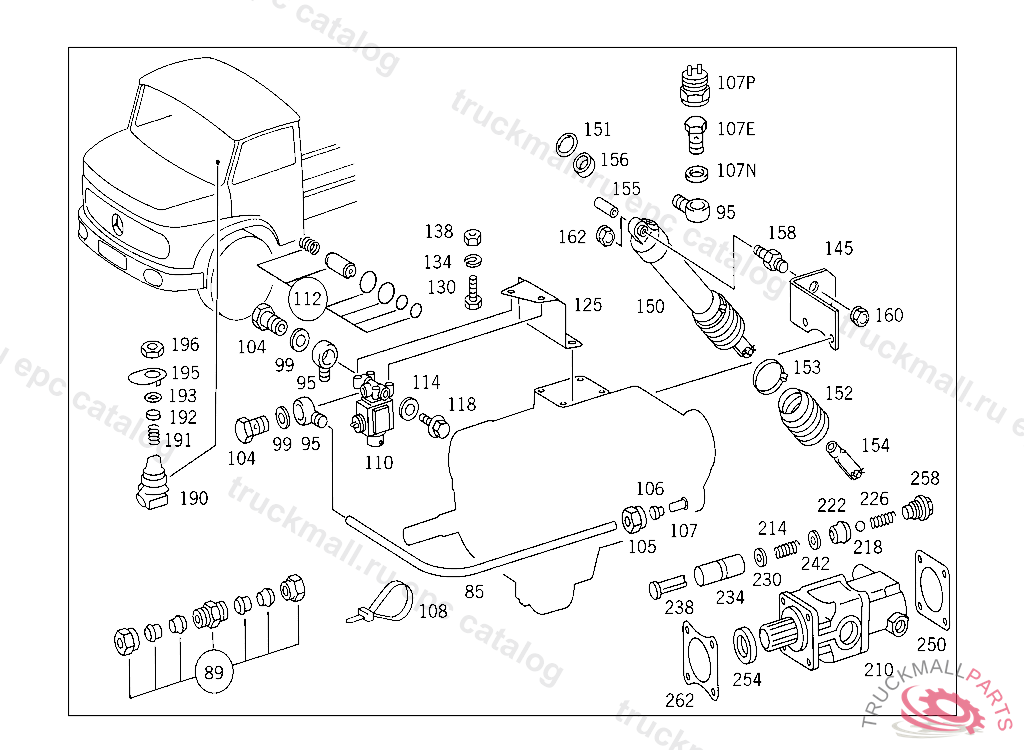

Поз.
Артикул
Описание
85
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
85
PLASTIC PIPE RISING PIPE 4X6 MM
89
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
95
BANJO UNION , Replaced By: N915052004006
95
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
99
SEAL RING LINE CONNECTION
104
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
105
UNION NUT LINE CONNECTIONS
106
GLAND , Replaced By: A0019901667
106
SEAL CONE
107
BUSHING , Replaced By: N915062004000
107
SLEEVE LEAK LINE
110
VALVE P.T.O.
112
REPAIR KIT , Replaced By: A0012608357
112
REPAIR KITTO 001 997 34 36,002 997 58 36,
114
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
118
SCREW PLUG , Replaced By: N000908012009
118
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
125
BRACKET 3/2-WAY VALVE,4 625748
125
BRACKET 3/2-WAY SOLENOID VALVE
130
SCREW 3/2-WAY VALVE TO BRACKET
134
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
138
NUT BALL PIVOT TO LEVER
999
SLEEVE LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
HOLLOW SCREW HEATING CONNECTION
999
UNION NUT LINE CONNECTION
999
GLAND LINE CONNECTION
999
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
SHIM TRANSMISSION SUSPENSION
999
SHIM , Replaced By: A3432660584
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
FITTING , Replaced By: A0029905971
999
FITTING (PARTS KIT),LINE RUPTURE
999
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
999
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
999
SLEEVE , Replaced By: N915062006000
