Поз.
Артикул
Описание

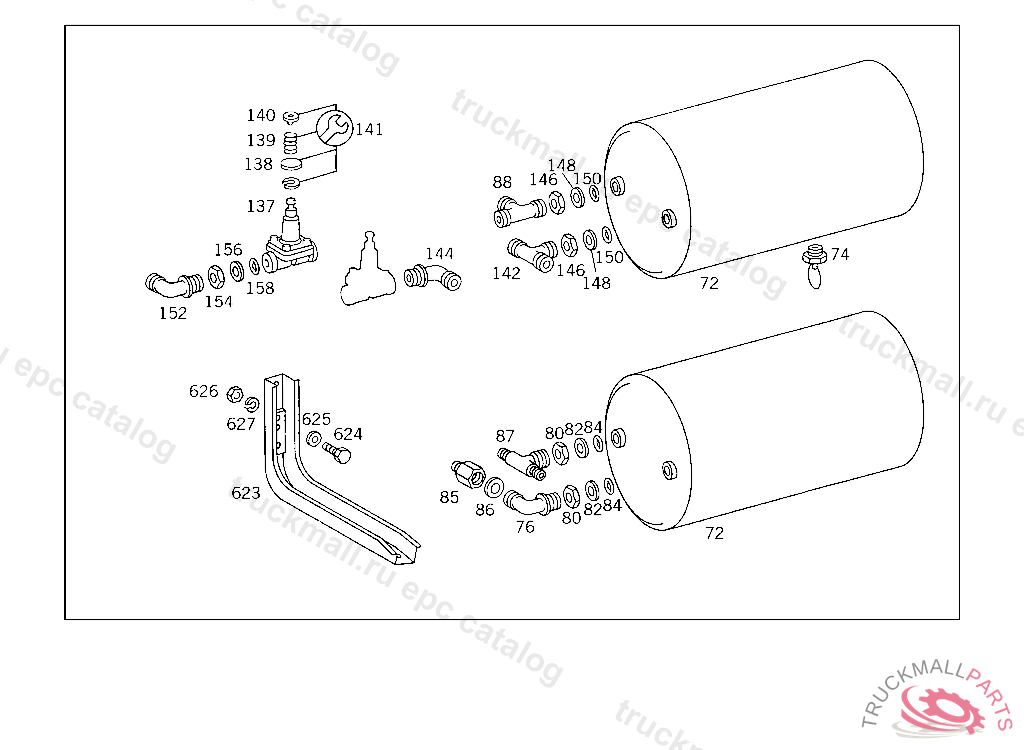

72
RESERVOIR , Replaced By: A3454308205
72
RESERVOIR
72
RESERVOIR INSIDE
74
VALVE
74
VALVE , Replaced By: A0004320807
74
VALVE , Replaced By: A0004320807
74
VALVE , Replaced By: A0004320807
74
VALVE AT AIR RESERVOIR
76
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
76
FITTING
80
NUT CHECK VALVE TO AIR RESERVOIR
82
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
82
THRUST RING CHECK VALVE TO AIR RESERVOIR
84
O-RING CHECK VALVE TO AIR RESERVOIR
85
FITTING AIR BRAKE CYLINDER,549430
86
SEAL RING , Replaced By: N007603012121
87
T-FITTING AT DISTRIBUTOR,4 481288
88
T-FITTING , Replaced By: N074317000100
88
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
137
VALVE , Replaced By: A0014295244
137
VALVE , Replaced By: A0014295244
137
VALVE (OVERFLOW VALVE) WESTINGHOUSE
138
DIAPHRAGMTO 344 429 73 44
139
SPRINGTO 000 429 63 44,000 429 59 44
140
SPRING RETAINERTO 000 429 63 44,000 429 59 44
141
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
142
T-FITTING , Replaced By: N074317000100
142
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
144
ELBOW FITTING AT OVERFLOW VALVE
144
ELBOW FITTING AT OVERFLOW VALVE
146
NUT CHECK VALVE TO AIR RESERVOIR
148
THRUST RING CHECK VALVE TO AIR RESERVOIR
148
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
150
O-RING CHECK VALVE TO AIR RESERVOIR
152
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
152
FITTING
154
NUT CHECK VALVE TO AIR RESERVOIR
156
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
156
THRUST RING CHECK VALVE TO AIR RESERVOIR
158
O-RING CHECK VALVE TO AIR RESERVOIR
623
SUPPORT RIGHT
623
SUPPORT LEFT
624
SCREW PLUG SOCKET TO FRAME
625
WASHER TRAILER PLUG SOCKET TO BRACKET
626
NUT LEVER TO SHIFTING SHAFT
627
LOCK WASHER RAIL TO BATTERY SUPPORT
999
PULL ROD
999
CONNECTION FITTING ,880809
999
BRACKET , Replaced By: A3454311440
999
BRACKET , Replaced By: A3444287440
999
LINE FROM FITTING TO RIGHT SHUT-OFF COCK 15X1.5 MM,563942
999
LINE FROM CENTRAL AIR RESERVOIR TO COMPRESSED AIR HOSE,"SUPPLY"
999
LINE , Replaced By: A3454307766
999
LINE , Replaced By: A3454309466
999
BRAKE INTERMEDIATE SHAFT , Replaced By: A3454207180
999
BRACKET , Replaced By: A3444297340
999
REPAIR KIT , Replaced By: H980005860043
999
EYE
999
THREADED UNION , Replaced By: A3454297238
999
SEAL HOLDER , Replaced By: A3454297085
999
WASHER , Replaced By: A4219905440
999
CONSOLE SPRING LOAD ACCUMULATOR CYLINDER
999
ROD FROM BRAKE SHAFT TO BRAKE LEVER
999
ROD FROM BRAKE SHAFT TO BRAKE LEVER
999
BRACKET , FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
PIN ROD TO INTERMEDIATE LEVER
999
PIN PULL ROD TO BRAKE INTERMEDIATE LEVER
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
BRACKET ,A 009531
999
BRACKET , Replaced By: A3184280240
999
LOOM TIE
999
FITTING LOCKING VALVE
999
LOCK LEVER TO BRACKET
999
ELECTRIC CABLE FROM BRAKE BOOSTER TO FITTING 6X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
BRACKET RELEASE SPRING,519340 USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
BRAKE CYLINDER
999
BRACKET BRAKE BOOSTER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
BRACKET BRAKE MASTER CYLINDER
999
SHIM BRACKET TO SIDE MEMBER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
PIN
999
LINE AT PRESSURE REGULATOR 15X1.5 MM
999
ROD
999
CONNECTOR , Replaced By: A3454307379
999
LEVER
999
VALVE , Replaced By: A0004320807
999
BRACKET BRACKET TO FENDER BRACKET
999
DISTRIBUTOR
999
BRACKET PIPING
999
LINE COMBINATION CYLINDER T-FITTING
999
LINE COMBINATION CYLINDER T-FITTING 15X1.5 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
BRACKET HAND BRAKE LINKAGE
999
BRAKE LEVER
999
BEARING BRACKET
999
PARKING BRAKE
999
LINE FROM DISTRIBUTOR TO WHEEL CYLINDER 6X0.7 MM
999
LINE FROM HAND BRAKE VALVE T-FITTING TO TO COMPRESSED AIR HOSE,"SUPPLY" 8X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL
999
LINE FROM MASTER CYLINDER TO REAR AXLE, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM T-FITTING TO RELAY VALVE, CONNECTION "1"
999
LINE FROM T-FITTING TO RELAY VALVE, CONNECTION "1"
999
LINE FROM AIR RESERVOIR T-FITTING TO T-FITTING 15X1.5 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE , USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE
999
LINE FROM T-FITTING TO RELAY VALVE 8X1.00 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM T-FITTING TO RELAY VALVE 8X1 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM COMPRESSED AIR HOSE TO T-FITTING 8X0,7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM BRAKE BOOSTER TO BRAKE CYLINDER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" 15X1.5 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM TWO-CIRCUIT PROTECTIVE VALVE TO OUTSIDE AIR RESERVOIR 15X1.5 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM PRESSURE REGULATOR TO TWO-CIRCUIT PROTECTIVE VALVE 15X1.5 MM,486597
999
LINE FROM PRESSURE RELIEF VALVE TO FOOT OPERATED VALVE 6X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
HOSE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRAKE CYLINDER. BRAKE BOOSTER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRACKET LINE MOUNTING
999
CLAMP COMPRESSED AIR LINE MOUNTING
999
BRACKET
999
LINE FROM FITTING TO BULKHEAD FITTING,691482 NOT USED
999
LEVER ,609836
999
BEARING BRACKET , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
YOKE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BEARING BRACKET
999
YOKE
999
SEAL RING
999
SEAL HOLDER
999
BEARING BRACKET
999
BRAKE INTERMEDIATE SHAFT ,A 006295
999
END PIECE
999
PIN , Replaced By: A3529910007
999
HOSE BRAKE LINE TO REAR AXLE,4 644238
999
ROD
999
ROD
999
CLAMP , Replaced By: A1109950401
999
CLAMP BRAKE LINE MOUNTING
999
WASHER BRAKE LEVER TO BEARING BRACKET, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRACKET , THE OLD PART MUST NO LONGER BE INSJTALLED, Replaced By: A3834280140
999
PIN
999
ELBOW FITTING , Replaced By: A3849907071
999
THRUST RING LOCKING VALVE
999
SPRING , Replaced By: A3449930110
999
SEAL RINGTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 723
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING22.3X2.4 MM,GRAU
999
REPAIR KITTO 345 430 75 81
999
SEAL RING
999
BRAKE MASTER CYLINDER FRONT/REAR BRAKE CIRCUIT
999
REPAIR KITTO 384 430 76 09
999
REPAIR KIT , Replaced By: A0024306581
999
REPAIR KIT , Replaced By: A0034201724
999
VALVE , Replaced By: A0024314006
999
SEAL RING86X2 MM,GRAU
999
SEAL RING28X2 MM,GRAU
999
CUP , Replaced By: A0004312786
999
BRAKE MASTER CYLINDER
999
VALVE , Replaced By: A0034295244
999
HANDLETO 001 430 23 81, NOT USED
999
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
999
CLAMP , Replaced By: N916016006201
999
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
VALVE SEATGRAU
999
BRAKE BOOSTER , Replaced By: A3444317014
999
RESERVOIR , Replaced By: A0014317702, +001A0004315433
999
TEST CONNECTION
999
GASKET34X2X6 MM,GRAU
999
VALVE ,4 390315
999
REPAIR KITTO 001 430 23 81, NOT USED
999
REPAIR KITTO 384 430 76 09
999
REPAIR KITTO 345 431 72 14,98 345 431 02 14, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
T-FITTING AIR RESERVOIR I
999
T-FITTING
999
CONNECTOR OIL DELIVERY LINE
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
BRAKE HOSE650 MM
999
BRAKE HOSE , Replaced By: A0024280735
999
BRACKET. LOCK , Replaced By: A6525040038
999
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
999
SCREW FITTING (AT INTAKE). FITTING , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
